OWNER'S MANUAL
Model: PSV-300
30-AMP SWITCHING DC POWER SUPPLY
www.pyramidcaraudio.com

Advertisement

loading

Summary of Contents for Pyramid PSV-300

  • Page 1 ® OWNER'S MANUAL Model: PSV-300 30-AMP SWITCHING DC POWER SUPPLY www.pyramidcaraudio.com...

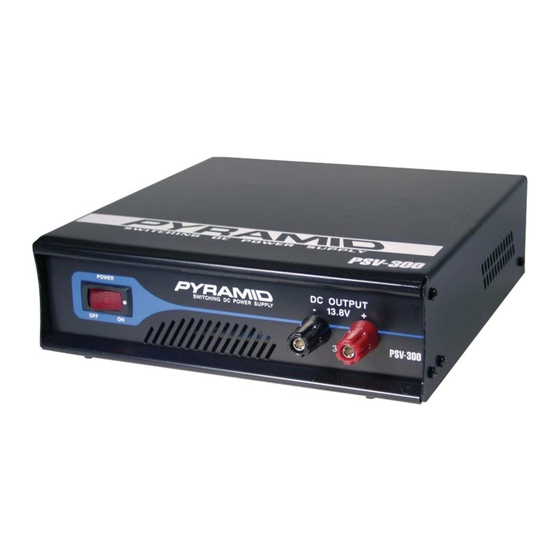

  • Page 2 Your PYRAMID Heavy-Duty 30-Amp Switching DC Power Supply is designed to use AC power-to-power equipment that requires 12V DC automotive power. The power supply converts standard 120V AC household power to 13.8V DC power and can supply up to 30 amps of continuous power.
  • Page 3: Important Safety Instructions

    • Do not place the power supply on an unstable cart, stand or table. If the power supply falls, it could injure a person or cause serious damage to the power supply.
  • Page 4 Caution: To reduce the risk of damage: • Do not expose the power supply to rain or excessive moisture. • Do not operate the power supply if it has been dropped or damaged in any way. Take it to a qualified service technician for repair.
  • Page 5 Warnings: To avoid damage to both the power supply and the device: • Follow the correct polarity when connecting the power supply and the device. • Do not let the ends of the positive and negative wires touch each other.
  • Page 6: Operation

    OPERATION To use the power supply after you connect the device to it, set POWER to turn it on with the red led light illuminated. If the power supply's POWER switch does not light, check all connections and confirm the wall AC outlet has power.
  • Page 7: Specifications

    SPECIFICATIONS Input Voltage...110 to 120V AC Input Frequency ...60 Hz Output Voltage ...13.8V DC ±0.5 Volts Output Current ...30 Amps DC Continuous (Maximum) Line Regulation ...Less Than ±5% Load Regulation ...Less Than ±5% Overload Protection ...FUSE 6A/250V Output Ripple ...150 mV RMS Design ...Switching Type Operating Temperature ...32 to 86 ºF (0 to 30 ºC) Storage Temperature ...-13 to 158 ºF (-25 to 70 ºC)
