Summary of Contents for PSC Falcon 4410

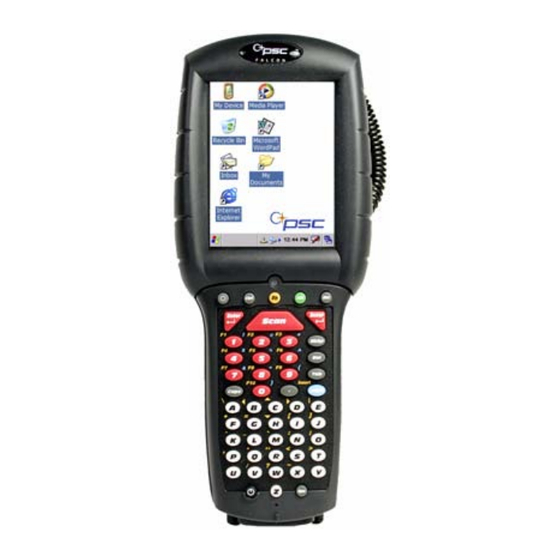

- Page 1 ® Falcon 4400 Series ® with Windows Falcon 4420 48-Key model Falcon 4400 Falcon 4410 52-Key NU model 26-Key model Addendum: New Features...
- Page 2 PSC reserves the right to change any specification at any time without prior notice. PSC is a registered trademark of PSC Inc. The PSC logo is a trademark of PSC. All other trademarks and trade names referred to herein are property of their respective owners.
-
Page 3: Table Of Contents
New Features ...3 52-Key Numbers Up (NU) Keypad ...3 52-Key NU Keyboard Configuration ...5 52-Key NU Warm Reset ...6 FlashFX Disk Size ...6 AutoStart ...7 Installing CAB files ...7 How AutoStart Uses Wceload ...8 Interactive CAB Install ...8 Autostart.ini ...9 Line Formatting ...9 AutoStart Options ... - Page 4 Table of Contents NOTES ® ® Falcon 4400 Series with Windows...
-
Page 5: New Features
(QRG) and the Product Reference Guide (PRG). Electronic copies of both man- uals can be found on the Product CD that shipped with your unit, or you can download them from the PSC Web site at www.psc.com. 52-Key Numbers Up (NU) Keypad... - Page 6 Ctrl Caps Power Function/Description Press <Scan> to activate the laser scanner. <Ctrl> allows keyboard shortcuts like a PC. You can perform functions such as Save (Ctrl-s) and Find (Ctrl-f). Toggle on and off for text format- ting (for example, Ctrl-b...
-
Page 7: 52-Key Nu Keyboard Configuration
Icon State Alt Mode Ctrl Mode 52-Key NU Keyboard Configuration The control panels for the 52-key NU keypad have several options and an additional tab for key mapping. 1. Select board 2. On the Initial Delay. hold down a key before it repeats. Repeat Rate repeat. -
Page 8: 52-Key Nu Warm Reset
New Features 52-Key NU Warm Reset This Addendum covers the procedure for the 52-key NU keypad. Reference Keypads in the Falcon 4400 with Windows CE Quick Reference Guide (QRG) for information on other keypads. A warm reset is a transition from the on or idle condition that closes all appli- cations, clears the working RAM, but preserves the file system. -
Page 9: Autostart
AutoStart The AutoStart program provides two functions: • Automatically reinstalls specified CAB files when the Falcon starts up. • Allows you to create a list of applications (with optional command line arguments) to run automatically at startup. Performing a Windows Mobile Clean Boot will remove the AutoStart folder and all AutoStart settings. -
Page 10: How Autostart Uses Wceload
AutoStart How AutoStart Uses Wceload If you intend to create highly interactive installers, you should either install the CABs manually or review the section on “Interactive CAB Install” in this chapter. CAB files are installed by AutoStart using the Table 6 on page Table 6. -
Page 11: Autostart.ini
If the executable path is in a folder that contains spaces in the name, quotes are required to distinguish what the actual executable name is. The following is an example of this: “\Program Files\PSC\ScannerApp.exe” /run \Program Files\PSC\ScannerApp.exe /run The second line is an invalid line because there is no way to distinguish the executable from the argument. -
Page 12: Autostart Options
AutoStart AutoStart Options Table shows options you can use when writing a line in the Autostart.ini Table 8. Options for Autostart.ini Description Comment: This line will not be exe- cuted. Do not wait on line completion: This will cause the line to execute and immediately move onto the next line. - Page 13 the specified executable and command line arguments. The populated fields shown in the AutoStart Execute Query are described in Table 9 on page 11. AutoStart Execute Query Table 9 Field Line Number Args The fields may be broken up into multiple lines (as shown in the example) due to limited space in the dialog.
- Page 14 AutoStart Table 11. Sample Autostart.ini lines Line ? \windows\wceload.exe “\My Documents\FDU.cab” \Program Files\App.exe \Program Files\App.exe /run “\Program Files\App.exe” / ?- \Windows\Pword.exe !”\Program Files\App.exe” / Description This will confirm the execution of \Windows\wceload.exe “\My Documents\FDU.cab” \Program (invalid) This will execute Files\App.exe. \Program (invalid) This will execute Files\App.exe /run.
- Page 16 Asia Pacific PSC Hong Kong Hong Kong Telephone: [852]-2-584-6210 Fax: [852]-2-521-0291 Australia PSC Asia Pacific Pty Ltd. North Ryde, Australia Telephone: [61] (2) 9870 3200 Fax: [61] (2) 9878 8688 France PSC S.A.R.L. LES ULIS Cedex, France Telephone: [33].01.64.86.71.00 Fax: [33].01.64 46.72.44...
