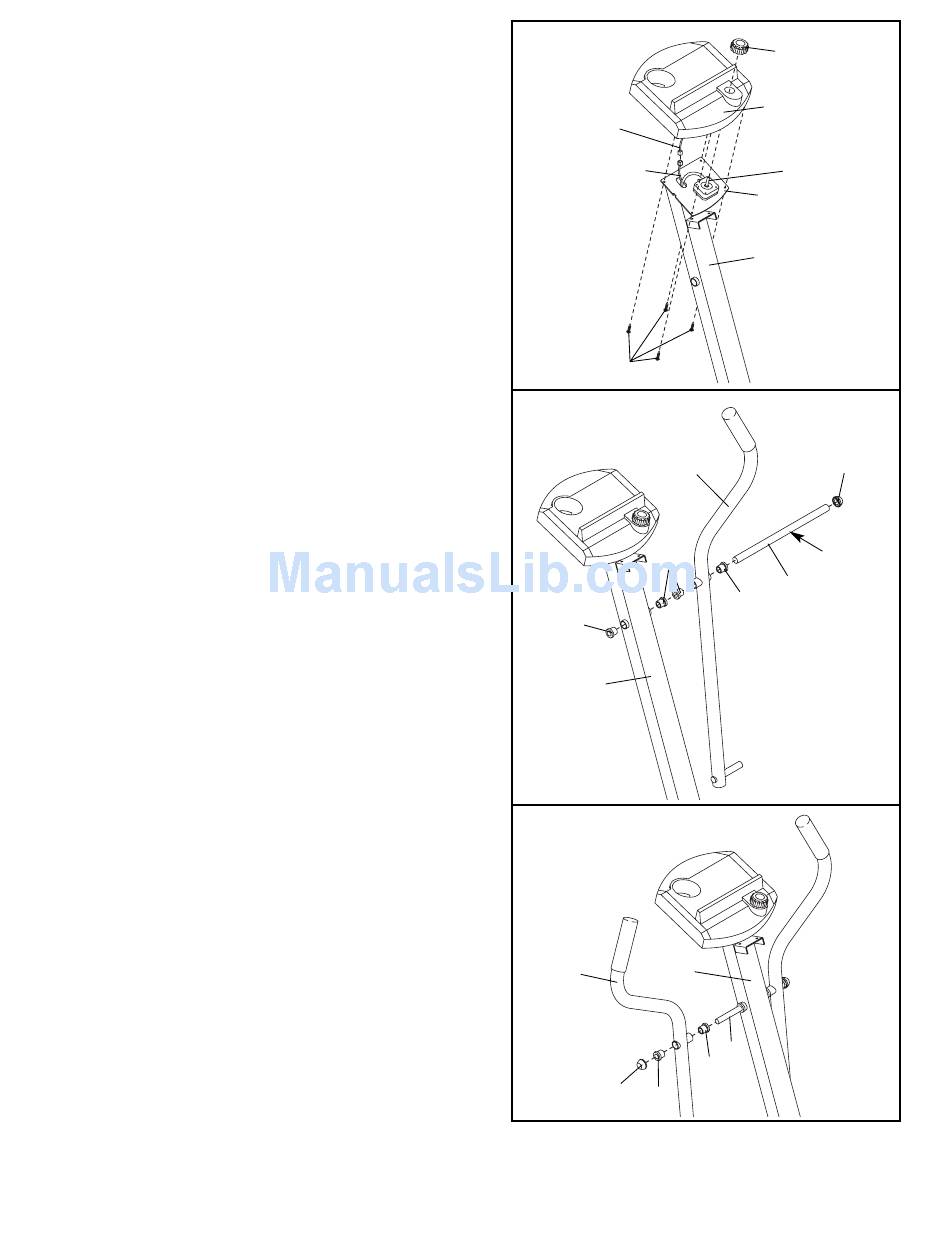

4. While a second person holds the Console (6) near
the Console Bracket (45), connect the Extension Wire
(62) to the console wire. Make sure the slack
Resistance Cable (26) is pulled out of the Upright (3).
Attach the Console (6) to the Console Bracket (45)
with four M4 x 16mm Screws (16). Push the
Resistance Control Knob (50) onto the Resistance
Control (26).
5. Make sure that there are two Pivot Bushings (56) in
each Handlebar (8) and in the Upright (3).
Tap a 5/8” Axle Cap onto one end of the Pivot Axle
(2). Apply a thin film of the included grease to the
Pivot Axle.
Insert the Pivot Axle (2) through one of the Handlebars
(8) and the Upright (3).
6. Slide the other Handlebar (8) onto the Pivot Axle (2).
Secure the Handlebars to the Upright (3) by tapping a
5/8” Axle Cap (57) onto the end of the Pivot Axle.
4
50
6
Console
Wire
62
26
45
3
16
5
57
8
56
Grease
2
56
56
3
6
3
8
2
56
57
56
