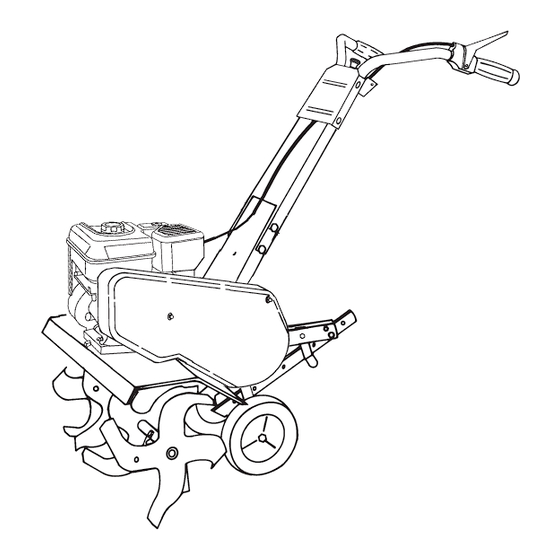

- Page 1 IMPORTANT MANUAL Do Not Throw Away REPAIR PARTS MANUAL MODEL: FT825 FRONT TINE TILLER ALWAYS WEAR EYE PROTECTION DURING OPERATION Visit our website: www.poulan.com 413157 02.26.07 CL Printed in U.S.A.
- Page 2 HANDLE ASSEMBLY PART DESCRIPTION 187820X428 Bracket, Handle 72140512 Bolt, Carriage 5/16-18 x 1-1/2 9266R Grip, Handle 166376 Handle, L.H. 73680500 Nut, Hex, Crownlock 5/16-18 19111116 Washer 11/32 x 11/16 x 16 Gauge 19121414 Washer 3/8 x 7/8 x 14 Gauge 74760520 Bolt, Hex Head 5/16-18 x 1-1/4 74760516...
- Page 3 BELT GUARD AND PULLEY ASSEMBLY PART DESCRIPTION 180377 Bracket Assembly, Belt Guard 9484R Clip, Cable 86777 Screw, Hex Washer Head, Slotted, Thread Cutting #10-24 x 1/2 74610812 Bolt, Hex Head 1/2-20 x 3/4 73680600 Locknut, Hex 3/8-16 19131316 Washer 13/32 x 13/16 x 16 Gauge 2009J Pulley, Idler, Reverse 180323...
- Page 4 WHEEL AND DEPTH STAKE ASSEMBLY PART DESCRIPTION 9194R Pin, Clevis 74760520 Bolt, Hex Head 5/16-18 x 1-1/4 74760512 Bolt, Hex Head 5/16-18 x 3/4 73220500 Nut, Hex 5/16-18 10040500 Washer, Lock 5/16 73800600 Locknut, Washer Insert 3/8-16 4921H Clip, Hairpin 1952J Support, Depth Stake, R.H.
- Page 5 TINE ASSEMBLY PART DESCRIPTION 156934 Tine, Outer, R.H. 3146R Retainer, Spring 156932 Tine, Inner, R.H. 156931 Tine, Inner, L.H. 156933 Tine, Outer, L.H. 4929H Pin, Clevis...
- Page 6 TRANSMISSION PART DESCRIPTION 74760524 Bolt, Hex Head, Grade 2 5/16-18 x 1-1/2 74780652 Bolt, Hex Head 3/8-16 x 3-1/4 19131311 Washer 13/32 x 13/16 x 11 73900600 Nut, Hex, Flangelock 3/8-16 9057R428 Shield, Tine 188195 Bracket, Engine, R.H. 165834 Bracket, Engine, L.H. 73970500 Nut, Hex, Flangelock 187912...
- Page 7 DECALS PART DESCRIPTION 157377 Decal, Poulan 413218 Decal, Poulan, 825 Series / 26" 157378 Decal, Forward and Reverse 121753X Decal, Reverse, Tine Control 110614 Decal, Hand Placement 409138 Decal, Engine 409137 Decal, OHV, I/C 162384 Decal, Warning 157381 Decal, Heavy Duty...
-
Page 8: Parts And Service
Model Number/Manufacturer's I.D. Number b. Description of part. For Technical Assistance: call 1-800-829-5886 For a Parts Manual, go to our website: www.poulan.com/support.asp NOTE: HOP provides parts and service through its au thor ized dis tribu tors and dealers; there fore, all requests for parts and service should be directed to your local dealer(s).
