IMPORTANT MANUAL
OPERATOR'S MANUAL
MODEL:
XT22H48YT

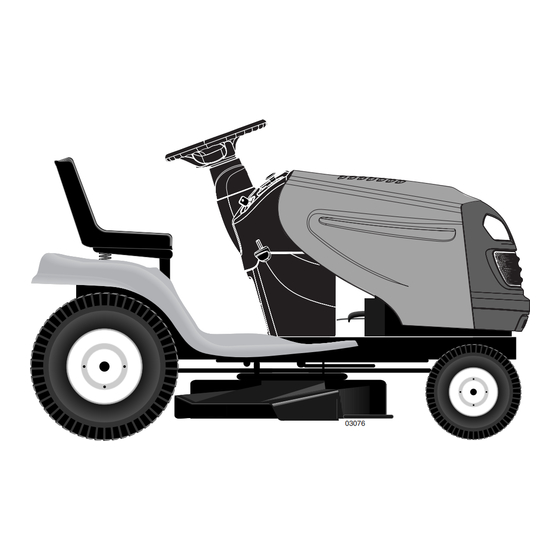

LAWN TRACTOR
ALWAYS WEAR EYE PROTECTION DURING OPERATION
Visit our website: www.poulan-pro.com
Do Not Throw Away
03076
WARNING:
Read this Man u al and follow all Warnings and
Safety Instructions. Fail ure to do so can re sult
in serious in ju ry.
404489 Rev.1 03.16.06 TR/VB
Printed in U.S.A.
Advertisement
Table of Contents
Related Manuals for Poulan Pro XT22H48YT
Summary of Contents for Poulan Pro XT22H48YT
- Page 1 OPERATOR'S MANUAL MODEL: XT22H48YT LAWN TRACTOR ALWAYS WEAR EYE PROTECTION DURING OPERATION Visit our website: www.poulan-pro.com Do Not Throw Away 03076 WARNING: Read this Man u al and follow all Warnings and Safety Instructions. Fail ure to do so can re sult in serious in ju ry.
-
Page 2: Safety Rules
Safe Operation Practices for Ride-On Mowers DANGER: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. WARNING: In order to prevent ac- ci den tal starting when setting up, trans port ing, ad just ing or making re- pairs, al ways dis con nect spark plug... - Page 3 Safe Operation Practices for Ride-On Mowers III. CHILDREN Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the ma chine and the mowing activity. Never assume that children will remain where you last saw them. •...
-
Page 4: Table Of Contents
PRODUCT SPECIFICATIONS Gasoline Capacity 3 Gallons and type: Unleaded Regular Oil Type (API-SG-SL): SAE 30 (above 32°F) SAE 5W-30 (below 32°F) Oil Capacity: W/ Filter: W/O Filter: Spark Plug: Champion QC12YC (Gap: .040") Ground Speed (MPH): Forward: Reverse: Charging System: 16 AMPS @ 3600 RPM Battery: AMP/HR:... -
Page 5: Assembly
UNASSEMBLED PARTS (2) Keys Your new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping puposes. When right or left hand is mentioned in this man ual, it means when you are in the operating po si tion (seated be hind the steer ing wheel). -
Page 6: Assembly
• Release parking brake by de press ing brake ped al. • Place freewheel control in dis en gaged po si tion to dis- en gage trans mis sion (See “TO TRANS PORT” in the Op er a tion section of this manual). •... -
Page 7: Operation
These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their mean- ing. REVERSE NEUTRAL REVERSE ENGINE OFF OPERATION SYSTEM (ROS) LIGHTS ON BATTERY FUEL ATTACHMENT ATTACHMENT CLUTCH DISENGAGED CLUTCH ENGAGED FREE WHEEL (Automatic Models only) Failure to follow instructions could result in serious injury or... - Page 8 KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference. Our tractors conform to the applicable safety standards of the American National Standards Institute. (A) ATTACHMENT LIFT LEVER –...
- Page 9 The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor or per form ing any ad just ments or repairs. We rec om mend standard safety glasses or a wide vision safety mask worn over spectacles.
- Page 10 FIG. 7 SYSTEM CHARACTERISTICS The cruise control should only be used while mowing or transporting on relatively smooth, straight surfaces. Other con di tions such as trimming at slow speeds may cause the cruise control to dis en gage. Do not use the cruise control on slopes, rough terrian or while trimmimg or turning.
- Page 11 WARNING: Backing up with the attachment clutch en- gaged while mowing is strongly discouraged. Turning the ROS "ON", to allow reverse operation with the attachment clutch engaged, should only be done when the operator decides it is necessary to reposition the machine with the attachment engaged.
- Page 12 CAUTION: Alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to sep a ra tion and for ma tion of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before stor age of 30 days or longer.
-
Page 13: Operation
MOWING TIPS • Mower should be properly leveled for best mowing per- formance. See “TO LEVEL MOWER HOUSING” in the Service and Adjustments section of this manual. • The left hand side of mower should be used for trim- ming. •... -
Page 14: Maintenance Schedule
MAINTENANCE SCHEDULE Check Brake Operation Check Tire Pressure Check Operator Presence & ROS Systems Check for Loose Fasteners Check/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Check Transaxle Cooling Check Mower Levelness Check V-Belts Check Engine Oil Level Change Engine Oil (with oil filter) Change Engine Oil (without oil filter) Clean Air Filter... -
Page 15: Maintenance
TRACTOR Always observe safety rules when per form ing any main- te nance. BRAKE OPERATION If tractor requires more than fi ve (5) feet to stop at highest speed in high est gear on a level, dry concrete or paved surface, then brake must be serviced. -
Page 16: Clean Air Screen
V-BELTS Check V-belts for deterioration and wear after 100 hours of operation and replace if necessary. The belts are not ad just able. Re place belts if they begin to slip from wear. TRANSAXLE COOLING The transmission fan and cooling fi ns should be kept clean to assure proper cooling. -
Page 17: Service And Adjustments
IN-LINE FUEL FILTER (See Fig. 16) The fuel fi lter should be replaced once each season. If fuel fi lter becomes clogged, ob struct ing fuel fl ow to car bu re tor, re place ment is re quired. • With engine cool, remove fi... - Page 18 SERVICE AND ADJUSTMENTS CAUTION: After rear lift links are dis- connected, the attachment lift lever will be spring loaded. Have a tight grip on lift lever when changing position of the lever. • Turn tractor steering wheel to the left as far as it will •...
- Page 19 SERVICE AND ADJUSTMENTS • Disengage belt tension rod (K) from locking bracket (L). • Install belt onto engine clutch pulley (M). IMPORTANT: Check belt for proper routing in all mower pulley grooves. FIG. 21 • Engage belt tension rod (K) on locking bracket (L). CAUTION: Belt tension rod is spring loaded.
- Page 20 SERVICE AND ADJUSTMENTS PRECISION SIDE-TO-SIDE ADJUSTMENT (See Fig. 24) • With all tires properly infl ated, park tractor on level ground or driveway. CAUTION: Blades are sharp. Protect your hands with gloves and/or wrap blade with heavy cloth. • Raise mower to its highest position. •...
- Page 21 SERVICE AND ADJUSTMENTS CAUTION: Belt tension rod is spring loaded. Have a tight grip on rod and engage slowly. • Raise attachment lift lever to highest position. FIG. 27 TO REPLACE MOTION DRIVE BELT (See Fig. 28) Park the tractor on level surface. En gage parking brake. For as sis tance, there is a belt installation guide decal on bottom side of left footrest.
-
Page 22: To Start Engine With A Weak Battery
SERVICE AND ADJUSTMENTS • Repair tire and reassemble. • On rear wheels only: align grooves in rear wheel hub and axle. Insert square key. • Replace washers and snap retaining ring securely in axle groove. • Replace axle cover. NOTE: To seal tire punctures and prevent fl at tires due to slow leaks, tire sealant may be purchased from your local parts dealer. - Page 23 SERVICE AND ADJUSTMENTS TO REPLACE HEADLIGHT BULB • Raise hood. • Pull bulb holder out of the hole in the backside of the grill. • Replace bulb in holder and push bulb holder securely back into the hole in the backside of the grill. •...
-
Page 24: Storage
Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. WARNING: Never store the trac tor with gas o line in the tank inside a building where fumes may reach an open fl... -
Page 25: Trou Ble Shoot Ing
TROUBLESHOOTING POINTS PROBLEM CAUSE Will not start Out of fuel. Engine not “CHOKED” properly. Engine fl ooded. Bad spark plug. 5. Weak or dead battery. Dirty air fi lter. Dirty fuel fi lter. 8. Water in fuel. Loose or damaged wiring. Carburetor out of adjustment. - Page 26 TROUBLESHOOTING POINTS PROBLEM CAUSE Engine dies when 1. Reverse operation system tractor is shifted (ROS) is not "ON" while into reverse mower or other attachment is engaged. Engine continues to run Faulty operator-safety presence control system. when operator leaves seat with attachment clutch engaged Poor cut - uneven...
-
Page 27: Warranty
The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materi- als and work man ship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we fi... - Page 29 SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION WARNING: To avoid serious injury, operate your tractor up and down the face of slopes, never across the face. Do not mow slopes greater than 15 degrees. Make turns gradually to prevent tipping or loss of control.
-
Page 30: Parts And Service
Model Number/Manufacturer's I.D. Number b. Description of part. For Techical Assistance: call 1-800-829-5886 For a Parts Manual, go to our website: www.poulan-pro.com/support.asp NOTE: Electrolux Home Products provides parts and service through its au thor ized dis tribu tors and dealers;...
