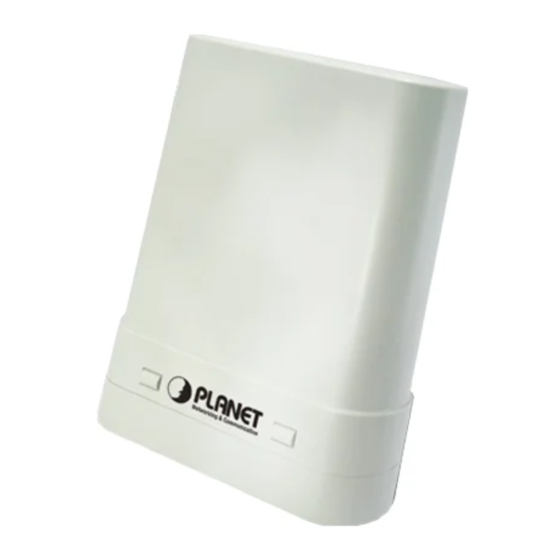

Planet WAP-6200 Quick Installation Manual

Planet technology 802.11g wireless lan outdoor cpe ap quick installation guide.


802.11g Wireless LAN Outdoor CPE AP
WAP-6200
Quick Installation Guide

Summary of Contents

  • Page 1

    802.11g Wireless LAN Outdoor CPE AP WAP-6200 Quick Installation Guide...

  • Page 2

    Table of Contents Package Content ... 3 Hardware Installation ... 4 Web Configuration ... 8 Further Configuration ... 8...

  • Page 3

    WAP-6200: AP, Client, WDS, AP+WDS, Repeater AP, Wireless Client, Repeater, and Bridge. The multiple operation modes selection and built- in 14dBi flat panel antenna and default 200mW output power make WAP-6200 a suitable CPE solution for widely open space applications such as WISPs, campuses, and airports.

  • Page 4

    2. Strongly suggest using SFTP cable (PLANET offers 25-meter SFTP cable, please contact with local dealer for more information.) for waterproof and avoiding thunder stroke, connect the RJ45 cable connector of the WAP-6200 to the “P+DATA OUT” port of PoE Injector.

  • Page 5

    5. Connect the power cord to the PoE Injector, and plug it into an AC outlet to power on the WAP-6200. 1. ONLY use the power adapter supplied with the WAP-6200. Otherwise, the product may be damaged. 2. Strongly suggest using SFTP cable whether the cable exposed Note outdoor for waterproof and avoiding thunder stroke.

  • Page 6

    OUTDOOR INSTALLATION WARNING IMPORTANT SAFETY PRECAUTIONS: LIVES MAY BE AT RISK! Carefully observe these instructions and any special instructions that are included with the equipment you are installing. CONTACTING POWER LINES CAN BE LETHAL. Make sure no power lines are anywhere where possible contact can be made.

  • Page 7

    MAKE SURE ALL TOWERS AND MASTS ARE SECURELY GROUNDED, AND ELECTRICAL CABLES CONNECTED ARRESTORS. This will help prevent fire damage or human injury in case of lightning, static build-up, or short circuit within equipment connected to the antenna. The base of the antenna mast or tower must be connected directly to the ó...

  • Page 8

    Further Configuration For more settings of WAP-6200, please refer to the user’s manual in the CD. If you have any difficulty on resolving the problem while installing or using the device, please feel free to contact your local dealer or PLANET Technical Support.
