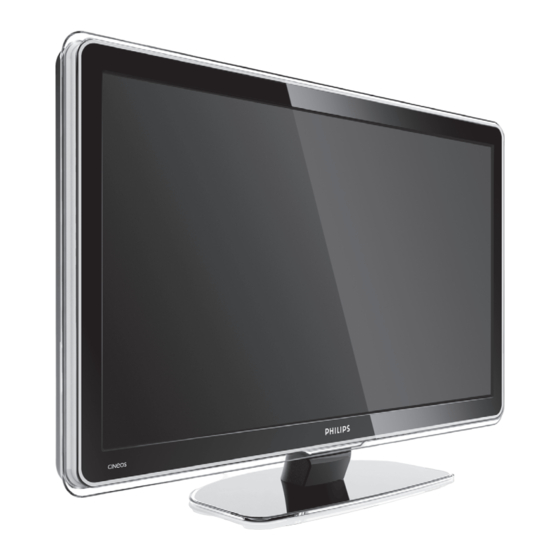

32PFL7623
42PFL7623
47PFL7623
Advertisement
Table of Contents
Related Manuals for Philips 32PFL7623
Summary of Contents for Philips 32PFL7623
- Page 1 Register your product and get support at www.philips.com/welcome LCD television ________________________________ LCD-Fernsehgerät ________________________________ Téléviseur LCD ________________________________ LCD televisie ________________________________ 32PFL7623 42PFL7623 47PFL7623 Televisore LCD ________________________________ Televisor LCD ________________________________ Televisor LCD ________________________________ TËÏÂfiÚ·Û˘ LCD ________________________________...
-
Page 3: Table Of Contents
Connection assistant 33 Connect your devices without the Connection assistant 33 Connection setup 39 Preparing for digital services 40 Technical data 41 Troubleshooting 42 Index 44 UK Digital TV switchover info 46 Register your product and get support at www.philips.com/welcome. - Page 4 Philips is committed to develop, produce and market products that cause no adverse health effects. Philips confirms that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today.
-
Page 5: Important
Important Read this user manual before you start to use this product. Pay attention to this section and closely follow the instructions. The warranty does not apply to damage caused by not taking into account the instructions. Safety • To avoid short circuit, do not expose the product to rain or water. -
Page 6: Your Tv
Your TV This section gives you an overview of the controls and functions of this TV. Television overview Controls LightGuide Indicator light Remote control sensor Volume up and down Menu Program/Channel up and down Power switch Connectors Back connectors Side connectors For more info see section 7 Connections. -
Page 7: Product Highlights
Product highlights Your new TV is equipped with some of the most modern audio or video innovations. Your TV offers the following advantages ... Full High Definition LCD display (42PFL7623D only) A full HD resolution of 1920x1080p, the highest resolution of HD sources. It offers a brilliant flicker- free progressive scan picture with optimum brightness and superb colours. -
Page 8: Wall Mounting - Vesa
) Caution Consider the TV’s weight when you wall mount it. Improper mounting could result in severe injury or damage. Koninklijke Philips Electronics N.V. bears no responsibility for improper mounting or mounting that results in accident or injury. Your TV is prepared for VESA compliant wall mounting. -
Page 9: Remote Control Batteries
Remote control batteries ‡ Open the battery cover on the back of the remote control. ® Insert the 2 batteries supplied (Type AA-R6- 1,5V). Make sure the + and - ends of the batteries line up correctly (inside of case is marked.) Ò... -
Page 10: Use Your Tv
Use your TV Learn how to operate your TV for daily use. Switch on or off - Standby rNote The TV may take up to 15 seconds to switch on. To switch on the TV: • Press B Power at the right of the TV if the standby indicator is off. -
Page 11: Watch Tv
Watch TV 4.2.1 Switch channels ‡ To switch TV channels: • Press a number (1 to 999) or press P+ or P- on your remote control. • Press - or + on the side Program/Channel controls of the TV. ® Press R to return to the previously viewed TV channel or connected device. -
Page 12: Watch A Dvd
Watch a DVD ‡ Switch on your DVD player. ® Insert a DVD disc in your player. The DVD picture automatically appears on the screen. Ò Press Play πon the DVD player. If the picture does not appear : ‡ Press the v key. ®... -
Page 13: Change Ambilight Mode
Change Ambilight mode You can adjust Ambilight between a relaxed to a dynamic setting so that it changes soft and smoothly to quick and responsive with the images on screen. Adjust the Ambilight mode: ‡ Press Ambilight to switch on. ®... -
Page 14: Use More Of Your Tv
Use more of your TV This section helps you perform advanced TV operations including how to: • use the menus • adjust picture, sound and Ambilight settings • make use of Teletext • create favourite channel lists Remote control 5.1.1 Remote control overview INPUT MHEG... -
Page 15: Lightguide Brightness
17 Volume V To adjust the volume. 18 Menu To switch the menu on or off 19 Option No function. 20 Demo To switch the Demo menu on and to get a demonstration of the features of the TV. 21 Subtitle j To activate or deactivate the subtitle mode. -
Page 16: Picture And Sound Settings
5.3.2 Use of the menu Learn to use the menus with this example. ‡ Press Menu. The TV menu appears on the screen. TV menu Smart settings Picture Sound Ambilight Settings assistant Features Setup ® Press o or œ to select Picture. ÒPress π... - Page 17 TV menu Picture Smart settings Contrast Picture Brightness Sound Colour Ambilight Sharpness Features Noise reduction Setup Tint Perfect Pixel HD Active control Light sensor Picture format Auto format mode • Colour Changes the level of saturation. • Hue If NTSC is broadcasted, this level compensates the colour variations.
- Page 18 • Auto format (Not for PC.) Enlarges the picture automatically to fill the screen. Subtitles remain visible. You can set Auto format in two different modes. ‡ In the TV menu, select Picture > Auto format mode. ® Select Auto-fill to fill the screen as much as possible.
-
Page 19: Ambilight
• TV speakers If you have connected an audio system to your TV, you can switch off the TV speakers. This option is only available if EasyLink is set to On. See Menu > Setup > Installation > Preferences > EasyLink. Select Automatic (EasyLink) to have the sound from your TV automatically reproduced by your audio system. -
Page 20: Teletext
Teletext Your TV has a 1200 pages memory that stores broadcasted teletext pages and subpages to reduce waiting time. To select a teletext page see section 4.6 Select a Teletext page. 5.6.1 Select a teletext language Some digital TV broadcasters offer the possibility to select your preferred teletext language. -
Page 21: Create Favourite Channel Lists
• Language Some languages use a different set of characters. Switch to the other group to show the text correctly. ‡ Press b. ® Press Menu. Ò Press o or œ to select an option. † Press to change a setting. º... -
Page 22: Electronic Programme Guide
5.7.3 Select a channel from a favourite list ‡ Press The last selected channel list appears. ® Use o or to highlight a channel. Ò Press The TV tunes to that channel. à Tip • Use to go through the TV channels of the selected favourite list. -
Page 23: Timers And Locks
Programme guide Around 09:55 07:50 Commonwealth 12:30 BBC ONE 09:50 Tweenies 10:15 BBC TWO 09:00 The Wright Stuff 10:30 five 05:32 This is BBC THREE 12:00 BBC THREE 05:32 This is BBC FOUR 12:00 BBC FOUR 09:20 Moonlighting 10:15 abc1 Remind Watch Jump to ... -
Page 24: 5.10 Subtitles
† Enter a new personal code. º Confirm your new entered code. The previous code is erased and the new code is stored. 5.9.4 Activate or deactivate Child lock Set your code and you can: • Lock all channels and devices, •... -
Page 25: Watch And Play Photos And Music
(only for photos). Watch your pictures as a slideshow or listen to a self made music playlist. rNote Philips is not responsible if your USB device is not supported nor shall Philips accept any liability for damage or loss of stored data. See section 8 Technical data for the playback formats supported. -
Page 26: Listen To Digital Radio Channels
• Start/Show/Pause To stop, pause and restart the slideshow. Thumbnails Watch the pictures of a selected album in an overview. ‡ Select a picture album. ® Press π to enter the picture list. Ò Press the blue key. † Press o or œ, p or π to highlight a picture. º... -
Page 27: 5.13 Software Update
5.13 Software update Philips continually tries to improve its products. To benefit, update the TV software regularly. To update your TV software you need a USB Memory device (not supplied). Verify that your USB memory device has at least 128Mb free space. Make sure the write protection is switched off. - Page 28 † The update process starts automatically. Please wait. The update is finished when the message ‘Operation successful’ appears on the screen. º Remove the USB memory device from the TV. ◊Press B on the remote control. Do not press more than once and do not use the Power B switch on the TV.
-
Page 29: Channel Installation
Channel installation The first time you turned on your TV • you have selected the language of the TV menus and the country where you are located • all the available TV Channels have been installed. This chapter provides instructions on how to reinstall channels as well as other useful channel installation features. -
Page 30: Manual Channel Installation
Step 3: Install TV and radio channels Your TV will search for and store all available digital and analogue TV channels and all available digital radio channels. ‡ Press the green key to start. The installation may take a few minutes. ®... -
Page 31: Rearrange Stored Channels
6.2.3 Fine tune a channel Fine tune a found channel when the reception is poor. ‡ Press Menu. ® Select Setup > Installation > Channel installation > Analogue: manual installation > Fine tune. Ò Press π to enter the Fine tune menu. †... -
Page 32: Digital Reception Test
Digital reception test If you receive Digital TV broadcasting you can verify the quality and signal strength of a specific channel. ‡ Select a channel. ® Press Menu. Ò Select Setup > Installation > Channel installation > Digital:Test reception. † Press π to enter º... -
Page 33: Connections (Dvd, Receiver
Connections Connection overview Connections Side connectors Headphones Stereo Mini jack Audio L/R Audio L/R input to be used together with Video or S-Video on the side of the TV. Video Video input to be used together with the Audio L/R on the side of the TV. S-Video S-Video input to be used together with the Audio L/R on the side of the TV. -
Page 34: About Connections
About connections 7.2.1 What you need to know Connect your device with the highest possible quality connection. Look for the highest quality connection on your device. Use that connection to your TV. HDMI - Highest quality An HDMI connection has the best picture and sound quality. -
Page 35: Connection Assistant
Video - Basic quality Use a Video (cinch) cable together with an Audio L/R (cinch) cable. Match the cable colours when you connect. Combined Video - yellow and Audio L/R cable - red and white 7.2.2 HDMI with EasyLink Connected devices that are compliant with the HDMI CEC standard can work together. - Page 36 7.4.1 DVD player Use a scart cable to connect the device to the EXT1 input at the back of the TV. EXT 3 EXT 2 SERVICE UART Y Pb Pr DIGITAL AUDIO AUDIO 7.4.2 DVD Recorder or Digital Receiver Use a scart cable and 2 antenna cables. EXT 3 EXT 2 SERVICE...
- Page 37 7.4.4 DVD Recorder and Home Theatre System Use a scart cable, 2 antenna cables and 1 digital audio (cinch) cable. EXT 3 EXT 2 SERVICE UART Y Pb Pr DIGITAL DIGITAL AUDIO AUDIO AUDIO 7.4.5 DVD Recorder and DVD Home Theatre System Use 2 scart cables, 2 antenna cables and 1 digital audio (cinch) cable.
- Page 38 7.4.7 HD Digital receiver / HD satellite receiver Use an HDMI cable and 2 antenna cables. AUDIO HDMI HDMI 1 HDMI 2 HDMI 3 7.4.8 DVD-R, Home Theatre System and Digital receiver Use 3 scart cables, 3 antenna cables and 1 audio (cinch) cable.
- Page 39 7.4.10 Game console The most practical connections for a game console are at the side of the TV. rNote To prevent picture delay, set the TV in game mode. Press Menu > TV menu > Smart settings > Game. Connected at the side of the TV Use the HDMI connection or the S-Video and Audio L/R connections or the Video and Audio L/R connections.
- Page 40 7.4.12 Personal Computer You can connect your PC directly to the TV. The TV works as a monitor of your PC. As a monitor the PC can be connected at the side with a DVI to HDMI adaptor or with a PC to TV cable.
-
Page 41: Connection Setup
Connection setup The TV needs to know what connections you have made and which device is connected to which connector. If you have used the Connection assistant the connection setup is already done. 7.5.1 Naming your devices Name the connected devices for easy selection and best signal handling. -
Page 42: Preparing For Digital Services
Preparing for digital services Scrambled digital TV channels can be decoded with a Conditional Access Module (CAM) and a Smart card provided by a digital TV service operator. The CAM may enable several services depending on the operator you choose (e.g. Pay TV). Contact your digital TV service operator for more information and terms. -
Page 43: Technical Data
• Common interface slot Power • Mains power: AC 220-240V (±10%) • Power and standby power consumption: See technical specification on www.philips.com • Ambient temperature: 5°C - 35°C Specifications are subject to change without notice. For more specification details of this product see www.philips.com/support. -
Page 44: Troubleshooting
Troubleshooting Television and remote control The TV does not switch on • Verify the mains cord connection. • Verify if the batteries of the remote control are not empty or weak.Verify their + / - orientation. You can use the keys on the TV to switch the TV on. •... - Page 45 If your problem is not solved Switch your TV off and on again, that may help. If not, call our Consumer Care or consult our website www.philips.com/support. Find the Consumer Care telephone numbers on the back cover of this manual.
-
Page 46: 10 Index
10 Index Active control 15 Advanced sharpness 15 Ambilight active mode 17 LoungeLight 11 menu / settings 17 modes 17 Analogue manual installation 28 TV channels 28 Antenna cable 7 connect 7 with devices 31 Audio setup 39 Auto clock mode 28 Auto format 16 Automatic installation 27 Auto surround 17... - Page 47 Menu key 13 Mono 16 Movie expand 16 MPEG artefact reduction 15 Music 23 Mute key 12 Naming devices 39 Noise reduction 15 OK key 12 On timer 21 Perfect Pixel HD 15 Personal Computer connect 38 display resolutions 41 Photo viewer 23 Picture album 23...
-
Page 48: Uk Digital Tv Switchover Info
Information about how to re-tune your TV during the digital TV switchover. Keep this user manual safe - you'll need it. Television in the UK is going digital, bringing us all more choice and new services. Starting in late 2007 and ending in 2012, television services in the UK will go completely digital, TV region by TV region. - Page 49 Digital UK, the body leading the digital TV switch- over, will advise you when you need to re-tuner during the switchover. If you choose to connect your TV to satellite or cable with a digital box then it will no be affected by switchover, and you won't need to re-tune.
-
Page 52: Contact Information
Contact information België / Belgique 078 250 145 0.06/min Danmark 3525 8759 Local Deutschland 01803 386 852 0.09/min France 0821 611 655 0.09/min E§§A™ 0 0800 3122 1280 ¢ˆÚÂ¿Ó España 902 888 784 0.10/min Ireland 01 601 1777 Local Italia 8403 20086 0.08/min Luxembourg...
