Summary of Contents for Philips 227E3Q

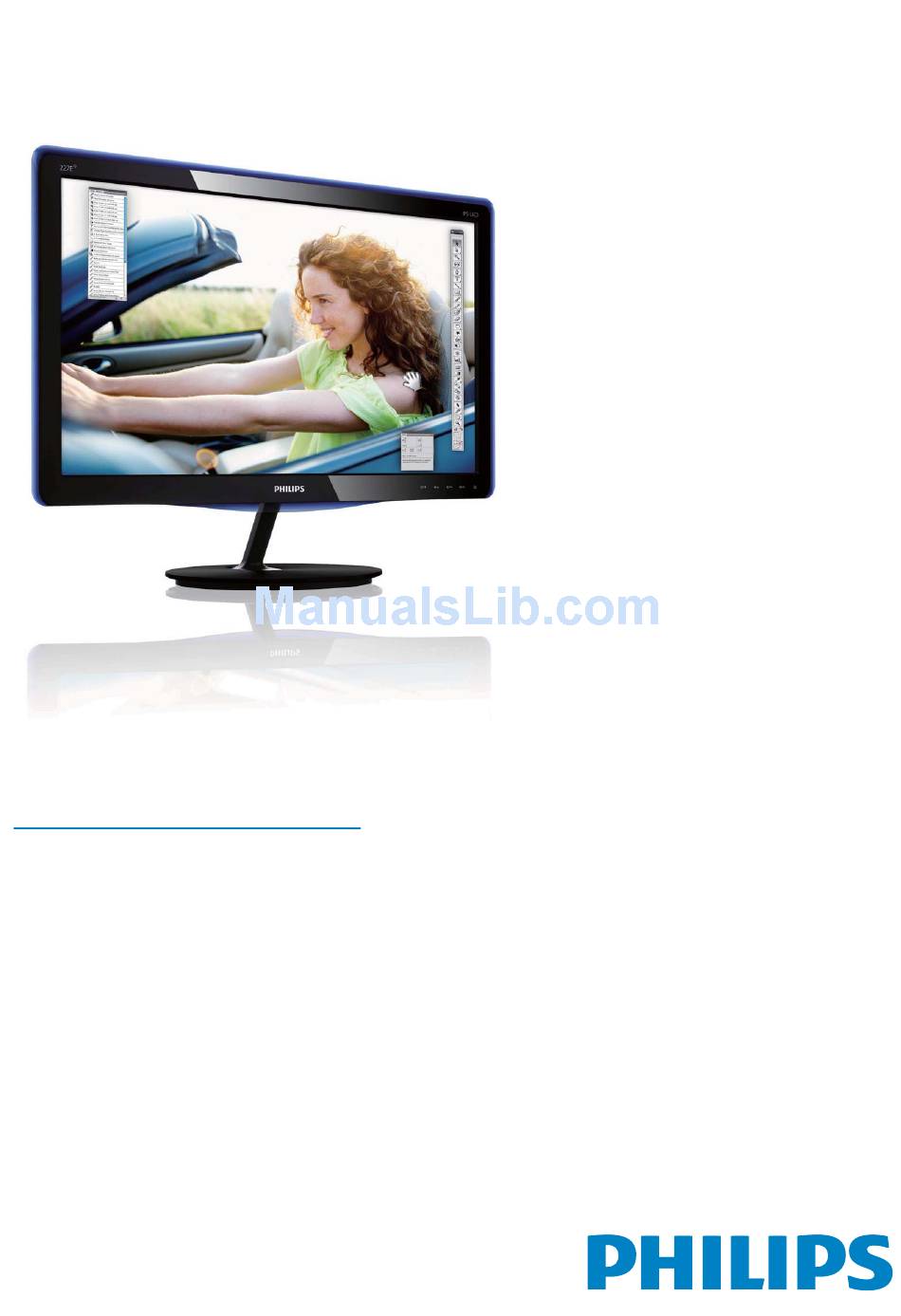

- Page 1 EN User manual Customer care and warranty Troubleshooting & FAQs 227E3Q...
-
Page 2: Table Of Contents
5.1 Resolution & Preset Modes...20 6. Power Management ...21 7. Regulatory Information ...22 8. Customer care and warranty ...28 8.1 Philips’ Flat Panel Monitors Pixel Defect Policy ...28 8.2 Customer Care & Warranty ...30 9. Troubleshooting & FAQs ...33 9.1 Troubleshooting ...33 9.2 SmartControl Lite FAQs ...34... -
Page 3: Important
DC power cord for normal operation. ‡ Please use approved power cord provided by Philips all the time. If your power cord is missing, please contact with your local service center. (Please refer to Customer Care Consumer Information Center) ‡... -
Page 4: Notational Descriptions
1. Important ‡ Temperature: 0-40°C 32-95°F ‡ Humidity: 20-80% RH ‡ IMPORTANT: Always activate a moving screen saver program when you leave your monitor unattended. Always activate a periodic screen refresh application if your monitor will display unchanging static content. Uninterrupted display of still or static images over an extended period may cause “burn in”, also known as “after-imaging”... -
Page 5: Disposal Of Product And Packing
Recycling Information for Customers Your display is manufactured with high quality materials and components which can be recycled and reused. To learn more about our recycling program please visit www.philips.com/about/sustainability/ recycling. -
Page 6: Setting Up The Monitor
Register your product and get support at 227E3 www.philips.com/welcome Quick Start 2. Hold the base stand with both hands and firmly insert the base stand into the base column. - Page 7 2. Setting up the monitor Connecting to your PC Model 227E3Q: AC power input VGA input DVI-D input Kensington anti-theft lock Model 227E3QPH: AC power input VGA input DVI-D input HDMI input HDMI audio output Kensington anti-theft lock Connect to PC 1.
-
Page 8: Operating The Monitor
2. Setting up the monitor 2.2 Operating the monitor Front view product description Model 227E3Q: Switch monitor’s power ON and OFF. Access the OSD menu. Return to previous OSD level. Change display format. Adjust the OSD menu. Change the signal input source. - Page 9 Description of the On Screen Display What is On-Screen Display (OSD)? On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window.
-
Page 10: Remove Base Stand
2. Setting up the monitor Resolution notification This monitor is designed for optimal performance at its native resolution, 1920 × 1080 @ 60 Hz. When the monitor is powered on at a different resolution, an alert is displayed on screen: Use 1920 × 1080 @ 60 Hz for best results. -
Page 11: Image Optimization
Whether you're working with text applications, displaying images or watching a video, Philips SmartImage Lite delivers great optimized monitor performance. Why do I need it? You want a monitor that delivers optimized... -
Page 12: Smartcontrast
3.3 Philips SmartControl Lite The new SmartControl Lite software by Phillips allows you to control your monitor via an easy to use on-screen graphic interface. Complicated... - Page 13 3. Image Optimization Start with Standard pane: Adjust menu: Adjust Menu allow you to adjust Brightness, Contrast, Focus, Position and Resolution. You can follow the instruction and do the adjustment. Cancel prompts user if you want to cancel installation.
- Page 14 3. Image Optimization Color menu: Color Menu allow you to adjust RGB, Black Level, White Point, Color Calibration, and SmartImage Lite (Please refer to SmartImage Lite section). You can follow the instruction and do the adjustment. Refer to below table for sub-menu item base on your input.
- Page 15 3. Image Optimization First color Calibration Screen: Previous button is disabled until the second color screen. Next goes to the succeeding target (6-targets). Final next goes File>Presets pane. Cancel closes the UI and returns to the plug in page. SmartImage Lite Allows user to change setting for better display setting based on content.
- Page 16 3. Image Optimization menu. On a non-supported display capable of DDC/CI, only the Help and Options tabs are available. All other SmartControl Lite tabs are not available. Display the Source instruction pane and current input source setting. On single input displays, this pane will not be visible.
- Page 17 3. Image Optimization Context Sensitive menu The Context Sensitive menu is Enabled by default. If Enable Context Menu has been checked in the Options>Preferences pane, then the menu will be visible. The Context Menu has four entries: SmartControl Lite - When selected the About Screen is displayed.
-
Page 18: Powersensor
4. PowerSensor™ (Available for model 227E3QPH only) PowerSensor is a unique environmentally friendly technology from Philips which enables user to save up to 80% of power consumption. In line with Philip’s Sense and Simplicity Promise, this user friendly technology works for you right out of the box without any hardware or software installation, and without any user intervention in the default mode. - Page 19 4. PowerSensor Power Sensor How to adjust settings If PowerSensor is not operating correctly inside or outside the default range, here’s how to fine-tune detection: Press the PowerSensor hot key. You will find the default position ‘3’ on the adjustment bar. Adjust the PowerSensor detection adjustment to Setting 4 and press OK.
-
Page 20: Technical Specifications
56Hz - 76Hz 30kHz - 83kHz DVI (digital), VGA (Analog), HDMI (available for model 227E3QPH) Separate Sync, Sync on Green 227E3Q: 227E3QPH: English, French, German, Spanish, Italian, Russian, Simplified Chinese, Portuguese, Turkish Kensington Lock DDC/CI, sRGB, Windows 7/Vista/XP, Mac OSX, Linux... - Page 21 Color Finish Note 1. EPEAT Gold or Silver is valid only where Philips registers the product. Please visit www.epeat.net for registration status in your country. 2. This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet.
-
Page 22: Resolution & Preset Modes
7HFKQLFDO 6SHFLÀFDWLRQV 5.1 Resolution & Preset Modes Maximum Resolution 1920 x 1080 @ 60 Hz (analog input) 1920 x 1080 @ 60 Hz (digital input) Recommended Resolution 1920 x 1080 @ 60 Hz (digital input) H. freq (kHz) Resolution 31.47 720x400 31.47 640x480... -
Page 23: Power Management
If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature: 227E3Q: Power Management Definition VESA Video H-sync V-sync Mode Active <... -
Page 24: Regulatory Information
RoHs directive mandating restrictions on hazardous substances in electrical and electronic equipment have been adhered to in order to make Philips monitors safe to use throughout its life cycle. Congratulations! This display is designed for both you and the... - Page 25 7. Regulatory Infomation EPEAT (www.epeat.net) “The EPEAT (Electronic Product Environmental Assessment Tool) program evaluates computer desktops, laptops, and monitors based on 51 environmental criteria developed through an extensive stakeholder consensus process supported by US EPA. EPEAT system helps purchasers in the public and private sectors evaluate, compare and select desktop computers, notebooks and monitors based on their environmental...
- Page 26 7. Regulatory Infomation Energy Star Declaration (www.energystar.gov) As an ENERGY STAR have determined that this product meets the ENERGY STAR guidelines for energy efficiency. Note We recommend you switch off the monitor when it is not in use for a long time. Federal Communications Commission (FCC) Notice (U.S.
- Page 27 7. Regulatory Infomation Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les mesures...
- Page 28 7. Regulatory Infomation North Europe (Nordic Countries) Information Placering/Ventilation VARNING: FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS. Placering/Ventilation ADVARSEL: S Ø R G V E D P L AC E R I N G E N F O R , AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE.
- Page 29 7. Regulatory Infomation China RoHS The People's Republic of China released a regulation called "Management Methods for Controlling Pollution by Electronic Information Products" or commonly referred to as China RoHS. All products including CRT and Monitor which are produced and sold for China market have to meet China RoHS request.
-
Page 30: Customer Care And Warranty
No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This notice explains the different types of pixel defects and defines acceptable defect levels for each type. - Page 31 In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT Monitor panel in a Philips flat panel monitor must have pixel or sub pixel defects exceeding the tolerances listed in the following tables.
-
Page 32: Customer Care & Warranty
8.2 Customer Care & Warranty For warranty coverage information and additional support requirement valid for your region, please visit www.philips.com/support website for details. You may also contact your local Philips Customer Care Center number listed below. Contact Information for WESTERN EUROPE region:... - Page 33 8. Customer care and warranty Contact Information for CENTRAL AND EASTERN EUROPE region: Country Call center Belarus Bulgaria Croatia Estonia Latvia Lithuania Romania Serbia & Montenegro Slovenia Ukraine Russia Slovakia Turkey Czech Rep. Hungary Contact Information for LATIN AMERICA region: Country Call center Brazil...
- Page 34 PCS One Korea Ltd. After Market Solutions (CE) Sdn Bhd Philips Consumer Service Philips Electronics Singapore Pte Ltd (Philips Consumer Care Center) FETEC.CO Axis Computer System Co., Ltd. (662) 934-5498 Sylvara Technologies Pty Ltd AL SHAHD COMPUTER L.L.C 00971 4 2276525...
-
Page 35: Troubleshooting & Faqs
Visible signs of smoke or sparks Do not perform any troubleshooting steps Disconnect the monitor from mains power source immediately for safety Contact with Philips customer service representative immediately. Imaging Problems Image is not centered Adjust the image position using the “Auto”... -
Page 36: Smartcontrol Lite Faqs
You can adjust “power on” light using the power LED Setup in OSD main Controls. For further assistance, refer to the Consumer Information Centers list and contact Philips customer service representative. 9.2 SmartControl Lite FAQs Q1. I change the monitor on a PC to a... -
Page 37: General Faqs
Attention Theft mode enabled Q5. I forgot my PIN for Theft Deterrence Function. What can I do? Ans.: Philips Service center has a right to ask for legitimate identification and authorization, in order to establish ownership of the monitor. Please note that the anti-theft deterrence function is provided as a convenient free option. - Page 38 Q9: Can I connect my LCD monitor to any PC, workstation or Mac? Ans.: Yes. All Philips LCD monitors are fully compatible with standard PCs, Macs and workstations. You may need a cable adapter to connect the monitor to your Mac system.
- Page 39 9. Troubleshooting & FAQs program when you leave your monitor unattended. Always activate a periodic screen refresh application if your LCD monitor will display unchanging static content. Warning Severe"burn-in" or "after-image" or "ghost image" symptoms will not disappear and cannot be repaired.
- Page 41 2011 © Koninklijke Philips Electronics N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips Electronics N.V. and are used under license from Koninklijke Philips Electronics N.V. Specifications are subject to change without notice.
