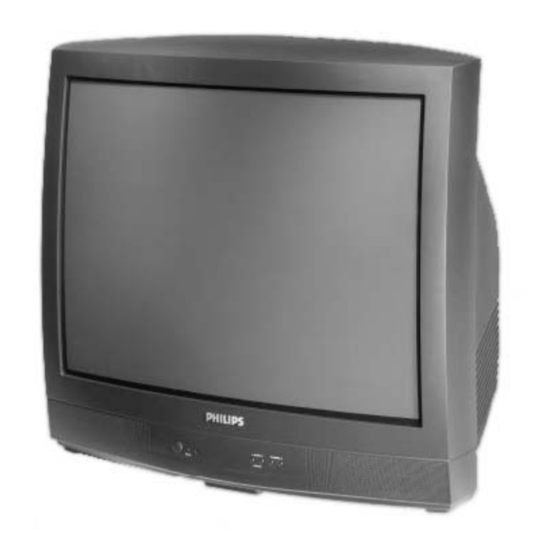

Page 1: Directions For Use
3135-125-21331 10/09/02 DFU LO1-2K2 CH1, HC, OCC, PC, PL, TL Institutional T Institutional T elevision elevision .philipsitv .com .philipsitv .com Directions For Use PL, TL, PC, PL, TL, PC, TC, OCC, TC, OCC, CH1, HC CH1, HC 3135-125-21331... - Page 2 3135-125-21331 10/09/02 DFU LO1-2K2 CH1, HC, OCC, PC, PL, TL Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.
- Page 3 Television feature set, thus allowing normal initial power ON, channel selection, and volume control (as well as a vari- ety of selectable Menu features). When the TV is in Consumer mode, Philips RC-5 system 0 (guest-mode) remotes, such as the RC2524BK and the RL9820BK (optional accessories) can access the Consumer-mode Main Menu, and configure the television to the full extent offered in this mode.
-
Page 4: Tv Remote Controls
ETTING To change the operational mode of the Philips Institutional TV, use the RG4172BK or RC2573GR in setup mode (press TV SETUP on the RG4172BK), and enter the following keystroke sequence: 0 2 4 9 9 5 Menu. Select the desired mode from the Operational Mode menu. - Page 5 3135-125-21331 10/09/02 DFU LO1-2K2 CH1, HC, OCC, PC, PL, TL The following table summarizes the Philips Institutional Television menu items that are available in the prefixed mod- els indicated. Menu items indicated with an “x” are available in the respective models. Items in bold are commercial features.
-
Page 6: Front Panel Controls
ITV Menu Items & Availability In Commercial Mode (Features Menu) The following menu is available on your Philips Institutional television when it is in Commercial mode. The Features Menu items are limited to the following when pressing Menu or Sleep on a guest-mode remote (or RG4172BK master setup remote in guest mode), or when pressing the front panel keyboard’s VOLUME + and VOLUME - simultaneous-... -
Page 7: How T O Use The O N -Screen Menu
3135-125-21331 10/09/02 DFU LO1-2K2 CH1, HC, OCC, PC, PL, TL This section explains the Philips Institutional Television’s menu items. As described previously, the availability of, and options within each item depend upon the television’s specific model and current operational mode (Consumer or Commercial) and the type of remote control command (guest or setup) issued. - Page 8 CABLE TUNING (OFF / ON) Your Philips television can be configured to operate in either Cable TV or broadcast / off-air tuning modes. In other words, the TV must be configured depending upon whether a Cable TV signal or a normal antenna signal is applied to its 75-ohm ANT/CABLE plug.
- Page 9 3135-125-21331 10/09/02 DFU LO1-2K2 CH1, HC, OCC, PC, PL, TL MIN VOLUME / MAX VOLUME* (VOL |||||---- nn) Applicable / available only to the Commercial Mode / setup menu. Limits the range throughout which the television’s volume can be adjusted by a guest mode remote control, or by the television’s front panel keyboard (provided the front panel keyboard has not been locked out, see KEYBOARD LOCK).
-
Page 10: Welcome Message
3135-125-21331 10/09/02 DFU LO1-2K2 CH1, HC, OCC, PC, PL, TL WELCOME MESSAGE* (>) Applicable / available only to the Commercial Mode / setup menu. The Welcome Message feature makes it possible for an on-screen message to appear whenever the television is first turned on. The message will remain until any front-panel keyboard command or remote control command is received. -
Page 11: V-Chip Set Up
3135-125-21331 10/09/02 DFU LO1-2K2 CH1, HC, OCC, PC, PL, TL A/CH A/V SWITCH* (OFF / ON) Available in / applicable to Commercial Setup Menu / Commercial Mode. Alternate channel Audio / Video switching. When A/CH A/V SWITCH is OFF, the remote-control A / CH (alternate channel) command causes the television to select the channel / input that was selected just prior to the currently-selected one. -
Page 12: Cleaning And Care
· This Philips Institutional Television product and its packaging contain materials that can be recycled and re-used. Specialized companies can recycle your product to increase the amount of reusable materials and minimize the amounts which need to be properly disposed.
