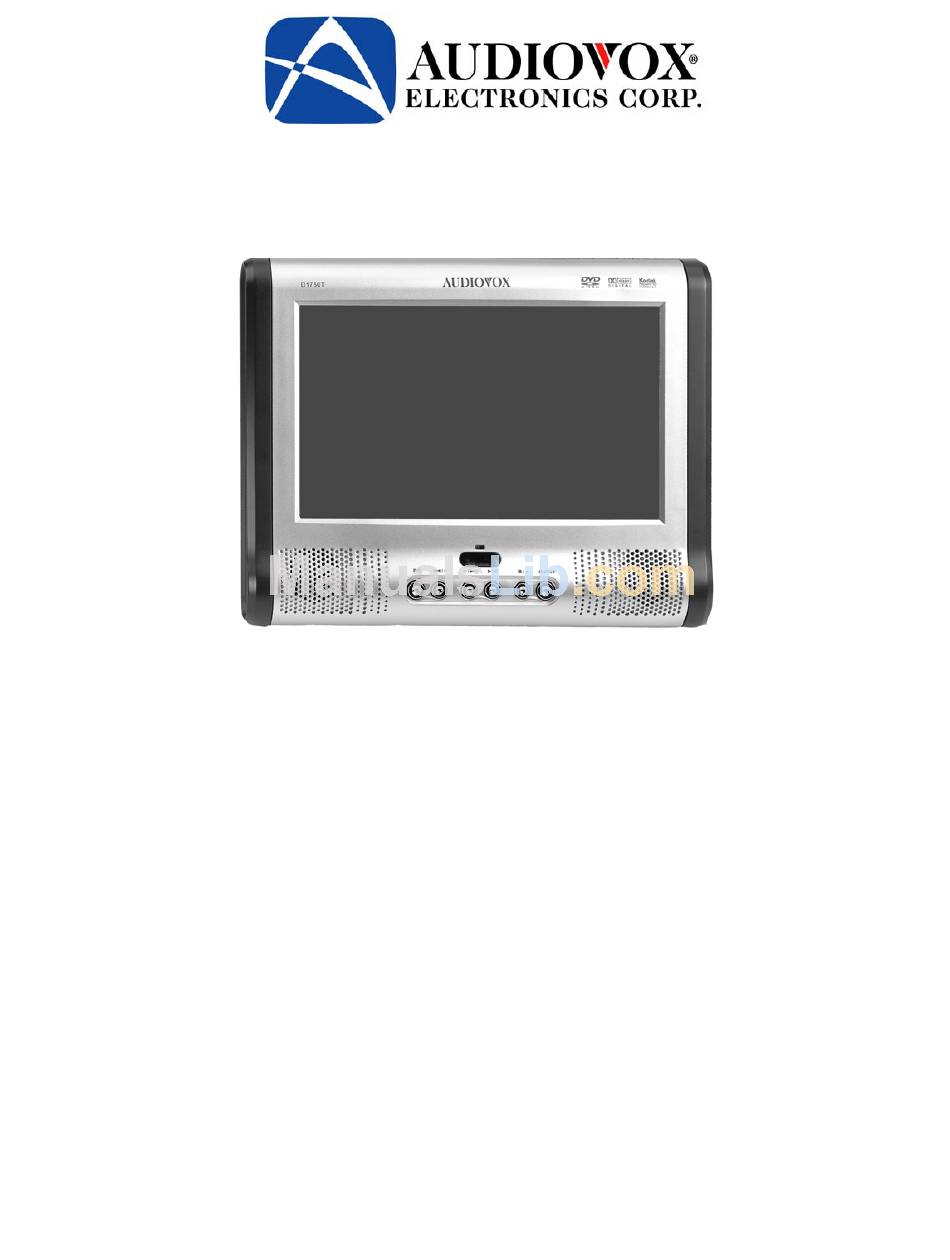

- Page 1 Model D1750T PORTABLE 7" LCD MONITOR AND DVD PLAYER Owner’s Manual...
-
Page 2: Introduction
INTRODUCTION Thank you for choosing the 7” portable DVD player. The unit applies the latest state of the art electronics and is designed for use in hotels, offices or your home. The DVD Player is constructed to provide years of reliable, trouble-free service, and is compact so that you can take it with you anywhere and is designed for quick and easy setup. -
Page 3: Cautions And Warnings
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “Dangerous Voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 same or equivalent type, in order to protect the environment, please dispose the battery properly. Do not use the DVD Player in temperatures higher than 140 degrees Fahrenheit or 40 degrees Celsius. 4. Warning To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
-
Page 5: Table Of Contents
INTRODUCTION_____________________________________________________ 1 CAUTIONS AND WARNINGS___________________________________________ 2 Table Of Contents ____________________________________________________ 4 MAIN FEATURES ____________________________________________________ 7 SCREEN AND SYSTEM PANEL CONTROLS ______________________________ 8 Front Panel Controls_______________________________________________ 8 SYSTEM SIDE PANEL CONTROLS______________________________________ 9 Left Side Panel Controls ____________________________________________ 9 Right Panel ______________________________________________________ 9 REMOTE CONTROL ________________________________________________ 10 Remote Control _________________________________________________ 10 SYSTEM CONNECTIONS ____________________________________________ 12... - Page 6 Charging the Battery Pack _________________________________________ 19 Detaching The Battery Pack ________________________________________ 19 Using a Vehicle DC Adapter ________________________________________ 20 DVD PLAYER OPERATION ___________________________________________ 20 Preparation _____________________________________________________ 20 Playback of DVD Disc ____________________________________________ 20 Pause _________________________________________________________ 20 Zoom _________________________________________________________ 20 Stop __________________________________________________________ 21 Screen Mode ___________________________________________________ 21 Title Menu ______________________________________________________ 21 Previous and Next _______________________________________________ 21...
- Page 7 Resume Playback________________________________________________ 26 Playing MP3”s _________________________________________________ 26 Playing a JPEG _________________________________________________ 27 Normal Playback ________________________________________________ 27 Picture Zoom ___________________________________________________ 27 TROUBLESHOOTING _______________________________________________ 28 SPECIFICATIONS___________________________________________________ 29 WARRANTY _______________________________________________________ 30 - 6 -...
-
Page 8: Main Features
MAIN FEATURES High Quality Audio and Video Excellent Sound Dolby Digital output to produce excellent Audio output signal. High Resolution MPEG2 decoding format achieves more than 500 lines of horizontal resolution. (Liquid Crystal Display) Screen Designed with a color 7” LCD screen. -
Page 9: Screen And System Panel Controls
SCREEN AND SYSTEM PANEL CONTROLS Front Panel Controls 1) PIC button Press to enter the brightness or color level-adjusting mode. Press for 1.5 seconds to shift aspect ratio between 16:9, 4:3 and screen Off. /-button Press to go to beginning of current track/chapter. -
Page 10: System Side Panel Controls
SYSTEM SIDE PANEL CONTROLS Left Side Panel Controls 1) Headphone Jack When connecting this jack, the speakers will automatically turn OFF. 2) Speaker/Headphone Volume Adjusting control Used to adjust the headphone and speaker volume. 3) Video Input/Output Jack Allows connection external equipment. -
Page 11: Remote Control
REMOTE CONTROL Remote Control 1) PWR button Press to turn unit ON or OFF. 2) SUBT button When a DVD with subtitles is playing, press select subtitle language or to turn subtitles OFF. 3) TITLE button Press to display titles if present on the disc. - Page 12 Press to repeat a chapter, track, title, or the entire disc. 12) EJECT button Press to eject disc. 13) AUDIO button Press to access various audio languages, when the DVD disc contains multiple audio languages. 14) BACKLIGHT button Press to turn the screen OFF when playing a DVD on an external monitor or when listening to CD’s.
-
Page 13: System Connections
SYSTEM CONNECTIONS NOTE: Before plugging the power cord into an AC outlet, make sure that all the connections have been made as described below. Power Supply Connection Connect the supplied adapter to the side of the DVD player in the jack marked “DC 12V In”. -
Page 14: Connecting To A Normal Amplifier
Connecting to a Normal Amplifier The DVD player can be connected to an amplifier. Please refer to the equipment’s manual before connecting. Also switch the AV/IN OUT switch to OUT. Connecting to a Digital Ready Amplifier The DVD Player can be connected to an amplifier with a digital optical input. The cable is not supplied, but can be purchased at most home electronics retailer. -
Page 15: Playback Preparations
PLAYBACK PREPARATIONS Usage of Remote Control Remove the empty battery receptacle. Refer to the drawing above. Insert the battery into the receptacle and insert the receptacle into the remote. For best results, aim the remote directly player’s receiving window within 15 feet, and angles exceeding degrees. -
Page 16: Disc Formats Supported By This Player
DISC FORMATS SUPPORTED BY THIS PLAYER DISC LOGO The disc maker specifies the operation of some DVD discs. Please refer to the instruction manual with the disc. Care of Discs Do not touch the playing surface of the compact disc. Do not stick paper labels on the disc. -
Page 17: Power Adapter
Power Adapter The DVD player is supplied with a switching power adapter. Connect AC adaptor in the jack the on side of the unit. Plug the of the power cord to a grounded AC Outlet. NOTE: To prevent malfunction, turn the power to the DVD Player OFF before removing the power cord from the AC Outlet Pre-Operation Connect DVD Player to power. -
Page 18: Power Supply
POWER SUPPLY About Rechargeable Battery Pack Your portable DVD player comes with a lithium ion rechargeable battery that attaches to the bottom of the player. Your new battery should be fully charged before initial use. Charging time is normally about 4 hours. A fully charged battery delivers about 2.5-3 hours of use, but playing time varies... -
Page 19: Battery Pack Attaching And Placement
POWER SUPPLY Battery Pack Attaching And Placement The DVD Player’s power supply is the AC power adapter or the battery pack, which are provided with the player. The battery pack also can be used as a stand. Refer to the following steps for attaching the Battery Pack: Place the DVD Player on a soft and smooth surface with its back cover facing UP (to avoid scratching the screen). -
Page 20: Charging The Battery Pack
POWER SUPPLY Charging the Battery Pack The battery must be attached to the DVD player to charge it. Plug the Power Adapter into the Player’s DC-IN 12 V Jack, which is located on left Side of the DVD Player. Plug the other end of the Power Cord into a wall Outlet. -
Page 21: Using A Vehicle Dc Adapter
POWER SUPPLY Using a Vehicle DC Adapter To use the Vehicle DC Adapter disconnect the Battery pack and connect the supplied Vehicle Power Plug Adapter into the DVD Player’s Power Jack and the other end into the Vehicle DC outlet (Cigarette Lighter Socket) as shown below. -
Page 22: Stop
Stop During playback, press the STOP button once on the remote control to stop playback of a disc. Press the PLAY/PAUSE button again, and the DVD Player will resume playback of the disc from the point where it stopped. Screen Mode Press the PIC button on the front panel for three (3) seconds to shift the screen aspect ratio between 16:9, 4:3 and OFF. -
Page 23: Language Setup
Language Setup Press the ENTER button to enter the Language setup menu, the screen will display the following: Language Video Audio Rating OSD Menu Subtitle Audio DVD Menu Restore Default In the language setup menu, use the UP/DOWN direction buttons ( select folders. -
Page 24: Video Setup
Video Setup Press the Right direction button ( ) to select Video setup menu, then press the ENTER button to enter the video setup menu. The screen will display the following: Language Video Audio Rating TV Shape Close Caption In this menu, use the UP/DOWN direction buttons ( Press the ENTER button to select, use the UP/DOWN direction buttons ) to select item. -
Page 25: Rating Setup
This item is used to set the infrared Audio signal to ON or OFF. When ON is selected, there will be infrared Audio signal emitted from the infrared audio signal emitter. When OFF is selected, no infrared Audio signal emitted. NOTE: Using optical digital audio output: during CD, MP3 disc playback, the digital audio is in PCM format;... -
Page 26: Repeat
Repeat Repeat a Title, Chapter or Track. Press the REP button on the remote control. Continually pressing the REP button will display a menu as follows: Repeat OFF, Repeat and Repeat All. You can temporarily mark Chapter, Title section of a DVD that you would like to play repeatedly. -
Page 27: Resume Playback
Press the STOP button at the point if you wish to stop the playback of a disc. The DVD Player will memorize the location where playback of the disc was stopped. Press the Play/Pause button to resume normal playback. The DVD Player will resume the playback of the disc from the location where it was stopped. -
Page 28: Playing A Jpeg
JPEG is a common picture format. Hundreds of pictures can be stored in a disc in this format. Normal Playback Load a JPEG disc into the DVD Player. After reading the disc, the DVD Player will display the images on the disc in sequence. Press the STOP button to return to the root menu. -
Page 29: Troubleshooting
TROUBLESHOOTING Symptom • Make sure the AV IN/OUT switch ON the side of the player is in the OUT position for standard play. • Make sure a disc is loaded. • Make sure the disc isn’t loaded backwards. • Disc should be clean and not warped. The DVD Player will not •... -
Page 30: Specifications
SPECIFICATIONS TFT Screen Size Laser Wavelength Video System Frequency Response Audio Signal-To-Noise Rate Audio Distortion + Noise Channel Separation Dynamic Range Analog Audio Audio Out Video Out Video Out AC100-240V 50/60Hz Power Power Consumption 7.87”×6.06”× 1.6”/1.14” (L/W/H) Dimension w/o Battery About 1.0kg / 2.2 Lbs Weight w/o Battery DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE... -
Page 31: Warranty
WARRANTY AUDIOVOX ELECTRONICS CORP . (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 90 days from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor. - Page 32 For Customer Service Visit Our Website At .audiovox.com Product Information, Photos, FAQ’s Owner’s Manuals © 2004 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788 128-7112 - 31 -...
