Thank you for purchasing a Digital DSS Console. Please read this
manual carefully before using this product and save this manual for
future use. This manual is designed to be used with your Digital
DSS Console and a Panasonic PBX.
The Digital DSS Console can be used with the following Panasonic
Digital Proprietary Telephones (DPTs): KX-DT333, KX-DT343, and
KX-DT346.
The Digital DSS Console must be connected directly to the main
unit.
Accessories (included)
Telephone Line
Cord: 1
Screws for wall: 2
*1
This telephone comes with the wall mounting adaptor already attached.
To remove the adaptor, refer to step 1 on page 4.
Document Version 2009-03
Quick Reference Guide
Plate: 1
Screws for plate: 4

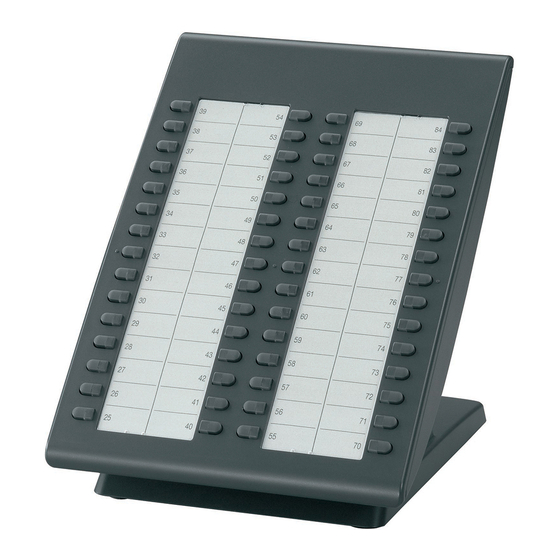

Digital DSS Console
KX-DT390
Model No.
Wall Mounting
*1
Adaptor
: 1
Advertisement
Table of Contents
Related Manuals for Panasonic KX-DT390
Summary of Contents for Panasonic KX-DT390
-
Page 1: Quick Reference Guide
This manual is designed to be used with your Digital DSS Console and a Panasonic PBX. The Digital DSS Console can be used with the following Panasonic Digital Proprietary Telephones (DPTs): KX-DT333, KX-DT343, and KX-DT346. -
Page 2: Location Of Controls
Location of Controls DSS Buttons with Busy Lamp Field (BLF): To access an extension, simply press a DSS button. These buttons also can be assigned for the One-touch Dialing and reassigned to other features. The BLF indicates the current status of the corresponding extension. - Page 3 1. If the operation board cannot be lowered to level 1, repeat this step. 1. Fit the protrusions on the KX-DT390 and a DPT into the 4 holes on the plate (included). Document Version 2009-03 Operation Board Angle Adjustment 2.
-
Page 4: Wall Mounting
Wall Mounting CAUTION: Do not mount this unit on a wall while attached to a DPT. Doing so may damage the wall mounting adaptor or, may cause the unit to fall, possibly resulting personal injury. 1. Remove the wall mounting adaptor from the unit as shown. - Page 5 When using a KX-DT390 Digital DSS Console, keep the following conditions in mind. • If you are having problems making calls, unplug the extension line and connect a known working Digital DSS Console. If the known working DSS Console operates properly, have the defective DSS Console repaired by an authorized Panasonic factory service center.
-
Page 6: Fcc Information
DO NOT send the product to the Executive or Regional Sales offices. They are NOT equipped to make repairs. Product service: Panasonic factory service centers for this product are listed in the service center directory. Consult your authorized Panasonic dealer for detailed instructions. -
Page 7: Customer Information
2) Perform such activities in the off peak hours, such as early morning hours or late evenings. Customer Information If trouble is experienced with this equipment KX-DT390, for repair or warranty information, please contact: Panasonic Service and Technology Company-BTS Center 415 Horizon Drive Bldg. -
Page 8: Wall Mounting Template
WALL MOUNTING TEMPLATE 1. Drive the screws into the wall as indicated. Note: • If the KX-DT390 is mounted beside a DPT, leave 157 mm (6-1/5 in) of space between the 2 screws for the DPT and the 2 screws for the KX- DT390, as indicated above.
