Panasonic RX-D10 Operating Instructions Manual

Portable stereo cd system
Hide thumbs Also See for RX-D10:
Table of Contents

Advertisement

Quick Links

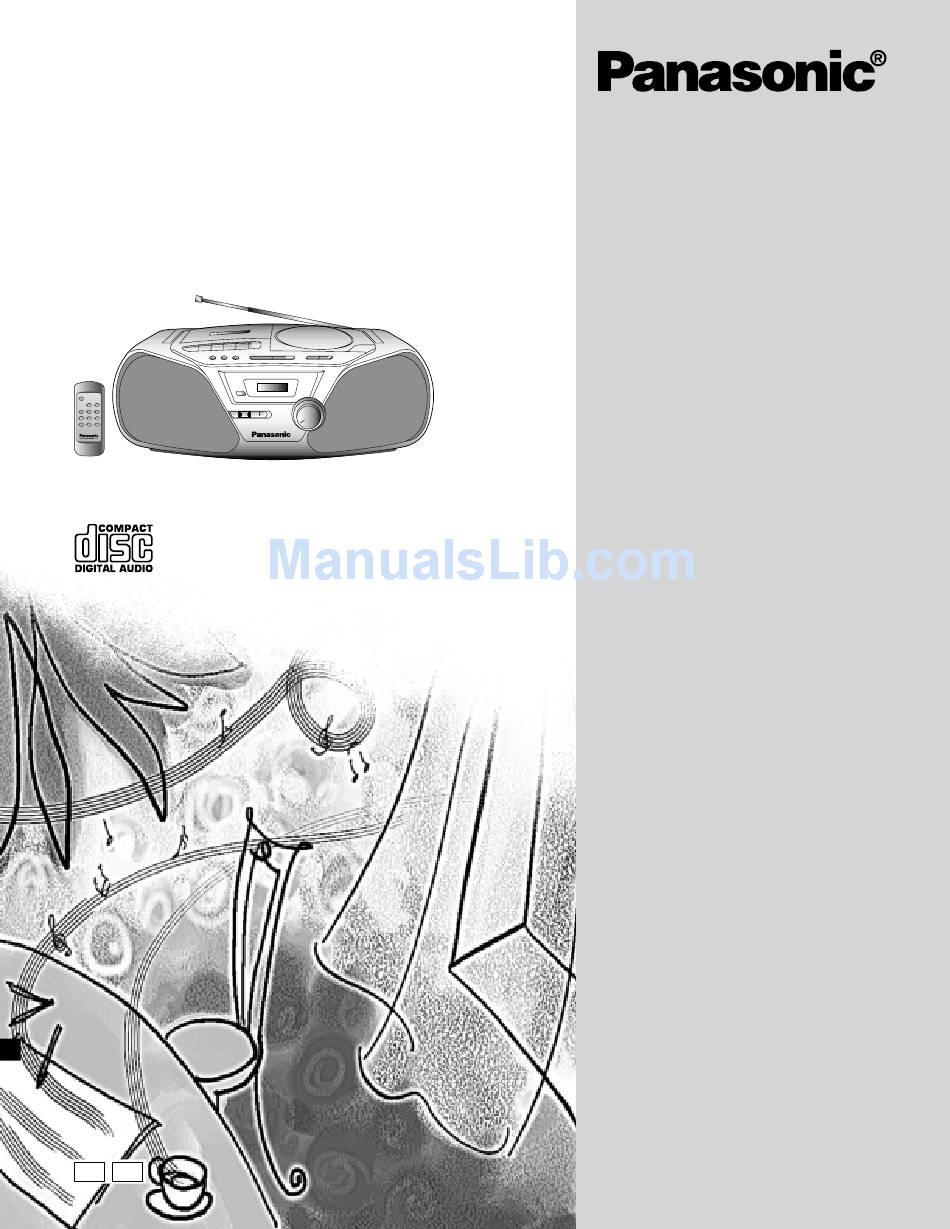

Portable Stereo CD System

Operating Instructions

RX-D11
Model No.
RX-D10
The illustrations show RX-D11.
EB GN
Note:
The "EB" indication shown on the packing case
indicates United Kingdom.
Before connecting, operating or adjusting this pro-
duct, please read these instructions completely.
Please keep this manual for future reference.
RQT5210-B

Advertisement

Table of Contents
loading

Related Manuals for Panasonic RX-D10

Summary of Contents for Panasonic RX-D10

  • Page 1: Operating Instructions

    Portable Stereo CD System Operating Instructions RX-D11 Model No. RX-D10 The illustrations show RX-D11. EB GN Note: The “EB” indication shown on the packing case indicates United Kingdom. Before connecting, operating or adjusting this pro- duct, please read these instructions completely.

  • Page 2: Table Of Contents

    CAUTION! THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL. CAUTION! DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT IN CABINET OR IN ANOTHER CONFINED SPACE.

  • Page 3: Caution For Ac Mains Lead

    Caution for AC Mains Lead (For United Kingdom) (“EB” area code model only) For your safety, please read the following text carefully. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5-ampere fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362.

  • Page 4: Precautions

    Max. 40°C AC IN ~ (R20/LR20, D, UM-1) Insert your finger into the opening and push out. Bottom of the unit RQT5210 Precautions • If this unit is not used for a long period of time or is used only from an AC power source, remove all the batteries to prevent potential damage due to possible battery leakage.

  • Page 5: Location Of Controls

    (R6/LR6, AA, UM-3) Power sources Memory back-up batteries (not included) In the event of a power failure, or if the AC mains lead is disconnected from the household mains socket (during AC operation), or should the batteries fail, the memory back-up batteries will preserve the preset memory of this unit.

  • Page 6: Concerning The Remote Control (Rx-D11 Only)

    MEMORY/ Remote control signal sensor About 7 meters in front of the signal sensor. RQT5210 Location of controls Remote control (RX-D11 only) Buttons ! and " have the same functions as the corresponding buttons on the main unit. Number , Auto scan button (AUTO SCAN) ... 9 - CD play mode select button (CD PLAY MODE) ...

  • Page 7: Presetting Radio Broadcasts

    Preset channel Presetting radio broadcasts • Up to twelve FM and AM stations each can be programmed. • If broadcast frequencies are preset in the memory, you can easily tune in any of these frequencies. • You can preset just those stations you like. Set [ ] to “TUNER”.

  • Page 8: Listening To Radio Broadcasts

    RQT5210 Listening to radio broadcasts Listening to programmed stations (Preset tuning) Make sure you have completed the procedure for “Presetting radio broadcasts” (on page 7). Preparation: Set [ RX-D11 only When using the remote control 1. Press [BAND] to select “FM” or “AM”. 2.
  • Page 9 MEMORY/ Indicates auto scan Listening to radio broadcasts Listening to broadcast stations which have not been programmed (Manual tuning) Preparation: Set [ Press [BAND] to select “FM” or “AM”. Every time you press the button: FM Press [TUNE MODE] to clear the preset indicator. The unit is set to the manual tuning mode.

  • Page 10: Listening To Cds

    Label must face upward. Total number of tracks Track number in play RQT5210 Listening to CDs Sequential play To stop the disc: Press [L CLEAR]. To pause To search forward/ backward To skip forward/ backward Notes • If interference occurs to radios or televisions, place the unit as far as possible from this equipment.

  • Page 11: Program Play

    Total number of tracks Track number Specified track number Total play time of programmed tracks Listening to CDs Program play You can program up to 24 tracks. Preparation: • Set [ ] to “CD”. • Program play cannot be used in combination with random play. When “...

  • Page 12: Listening To Tapes

    Side to be played facing upward. Insert the tape with the exposed tape facing you. RQT5210 Listening to tapes Types of tapes which can be played correctly: Normal position/TYPE I High position/TYPE II Metal position/TYPE IV High position and metal position tapes can be played, but the unit will not be able to do full justice to the characteristics of these tapes.

  • Page 13: Before Recording

    Leader tape (Recording cannot be made.) Before recording To take up the leader tape: A Only normal tapes can be used. High position and metal position tapes can be used, but the unit will not be able to record or erase them correctly. References •...

  • Page 14: Concerning Cds

    XXXX XXXX XXXXX XXXX XX XXXX XXXX XXXXX XXXX XXXX XXXXX XXXX XXXX How to return CDs to their case How to hold CDs Do not touch the recorded surface. How to clean CDs Wipe from inside outward. How to take up tape slack Side A Tab for side “B”...

  • Page 15: Troubleshooting Guide

    Troubleshooting guide Before requesting service for this unit, check the chart below for a possible cause of the problem you are experiencing. Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to the directory of Authorized Service Centers (enclosed with this unit) to locate a convenient service center, or consult your dealer for instructions.
  • Page 16 Technical specifications Radio Frequency range CD player Sampling frequency Decoding Beam source Semiconductor laser (wavelength 780 nm) No. of channels Wow and flutter Less than possible measurement data D/A converter Tape recorder Track system Monitor system Recording system Erasing system Frequency range Normal position General...
