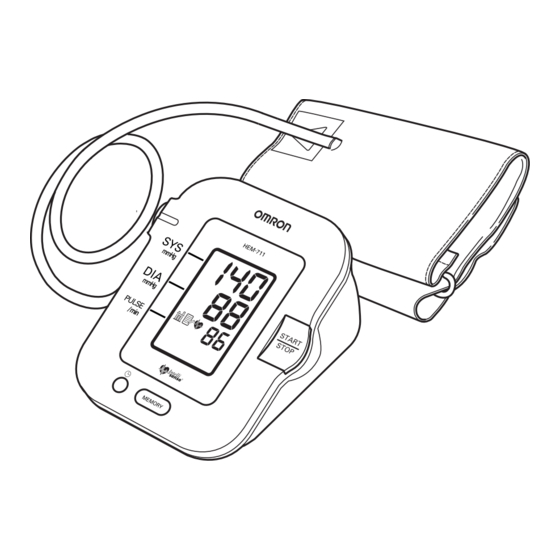

Omron INTELLI SENSE HEM-711AC Instruction Manual

Automatic blood pressure monitor with arm cuff
Hide thumbs Also See for INTELLI SENSE HEM-711AC:
Table of Contents

Advertisement

Quick Links

INSTRUCTION MANUAL
Automatic Blood Pressure Monitor
with Arm Cuff
HEM-711AC
Model

Advertisement

Table of Contents
loading

Related Manuals for Omron INTELLI SENSE HEM-711AC

Summary of Contents for Omron INTELLI SENSE HEM-711AC

  • Page 1 INSTRUCTION MANUAL Automatic Blood Pressure Monitor with Arm Cuff HEM-711AC Model...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Before Using the Monitor Introduction ..........3 Safety Information .

  • Page 3: Before Using The Monitor

    DATE PURCHASED: __________________ SERIAL NUMBER: ____________________ Staple your purchase receipt here Your new digital blood pressure monitor uses the oscillometric method of blood pressure measurement. This means the monitor detects your blood’s movement through your brachial artery and converts the movements into a digital reading.

  • Page 4: Safety Information

    SAFETY INFORMATION To assure the correct use of the product basic safety measures should always be followed including the warnings and cautions listed in this instruction manual. SAFETY SYMBOLS USED IN THIS INSTRUCTION MANUAL WARNING CAUTION OPERATING THE DEVICE Contact your physician for specific information about your blood pressure.

  • Page 5: Risk Of Electrical Shock

    SAFETY INFORMATION OPERATING THE DEVICE (continued) Read the Special Conditions section (page 27) of the instruction manual if your systolic pressure is known to be more than 220 mmHg. Inflating to a higher pressure than necessary may result in bruising where the cuff is applied. Operate the device only as intended.

  • Page 6: Care And Maintenance

    Do not submerge the device or any of the components in water. Store the device and the components in a clean, safe location. Changes or modification not approved by Omron Healthcare will void the user warranty. Do not disassemble or attempt to repair the...

  • Page 7: Before Taking A Measurement

    BEFORE TAKING A MEASUREMENT To ensure a reliable reading follow these recommendations: 1. Avoid eating, drinking alcohol, smoking, exercising, and bathing for 30 minutes before taking a measurement. Rest for at least 15 minutes before taking the measurement. 2. Stress raises blood pressure. Avoid taking measurements during stressful times.

  • Page 8: Know Your Unit

    Date/Time Setting Button Components: Air Plug (Connects to Air Jack) Arm Cuff AC Adapter Display START/STOP Button Air Jack Air Tube Battery Compartment AC Adapter Jack Storage Case INSTRUCTION MANUAL Automatic Blood Pressure Monitor with Arm Cuff HEM-711AC Model Instruction Manual...

  • Page 9: Unit Display

    UNIT DISPLAY Systolic Blood Pressure Diastolic Blood Pressure Memory Symbol Average Value Symbol Movement Error Symbol Low Battery Indicator Heartbeat Symbol/ Hypertension Indicator Deflation Symbol Date/Time Display Irregular Heartbeat Symbol Pulse Display...

  • Page 10: Display Symbols

    DISPLAY SYMBOLS IRREGULAR HEARTBEAT SYMBOL ( When the monitor detects an irregular rhythm two or more times during the measurement, the Irregular Heartbeat Symbol ( the display with the measurement values. An irregular heartbeat rhythm is defined as a rhythm that is more than 25% slower or 25% faster than the average rhythm detected while the monitor is measuring the systolic blood pressure and the...
  • Page 11 DISPLAY SYMBOLS The American Heart Association recommends the following guideline for upper limit of normal for home blood pressure readings: AHA Home Guideline for Upper Limit of Normal BP Systolic Blood Pressure Diastolic Blood Pressure This is a general guideline because blood pressure depends on age and morbidity.

  • Page 12: Heartbeat Symbol/Hypertension Indicator

    135 for the Systolic Blood Pressure value and/or 85 for the Diastolic Blood Pressure value. Omron Healthcare recommends you contact your physician if the HEARTBEAT SYMBOL appears on the display with your measurement values.

  • Page 13: Battery Installation

    BATTERY INSTALLATION 1. Press the indicator on the battery cover and slide the cover off in the direction of the arrow. 2. Install 4 “AA” size batteries so the + (positive) and - (negative) polarities match the polarities of the battery compartment as indicated.
  • Page 14 BATTERY INSTALLATION BATTERY REPLACEMENT When the Low Battery Indicator appears on the display screen turn the monitor off and remove all the batteries. Replace with four new batteries at the same time. Longlife alkaline batteries are recommended. CAUTION If battery fluid should get in your eyes, immediately rinse with plenty of clean water.

  • Page 15: Using The Ac Adapter

    USING THE AC ADAPTER NOTES: • Use only the authorized Omron AC Adapter that came with this monitor. • We recommend you install the batteries even if the AC Adapter is used. If no batteries are installed, you may need to reset the date and time if the AC Adapter is disconnected.
  • Page 16 USING THE AC ADAPTER TO CONNECT THE AC ADAPTER Insert the AC Adapter Plug into the AC Adapter Jack on the back side of the monitor as illustrated. Plug the AC Adapter into a 120V AC outlet (60 cycles). TO DISCONNECT THE AC ADAPTER Hold and pull the Housing to remove the AC Adapter from the electrical outlet.

  • Page 17: Setting The Date And Time

    The Blood Pressure Monitor automatically stores up to 60 individual measurement values with the dates and times. The monitor can also calculate an average reading based on the three most recent measurements taken within 10 minutes of the last reading.
  • Page 18 SETTING THE DATE AND TIME 2. SETTING THE YEAR The year can be set between 2006 and 2030. When the display reaches 2030, it will return to 2006. Press the MEMORY button to advance by increments of one year. Press the Date/Time Setting button to set the current year.
  • Page 19 SETTING THE DATE AND TIME 4. SETTING THE DAY Press the MEMORY button to advance by increments of one day. Press the Date/Time Setting button to set the current day. The hour flashes on the display. 5. SETTING THE HOUR The time is set using AM or PM.
  • Page 20 SETTING THE DATE AND TIME RESETTING THE DATE AND TIME To adjust the date or time after it has been setup when you first use the unit: Start with the monitor in the off position. 1. Press and hold the Date/Time Setting button.

  • Page 21: Applying The Arm Cuff

    APPLYING THE ARM CUFF CAUTION Read all of the information in the instruction manual and any other literature in the box before operating the unit. CAUTION This device is intended for use in measuring blood pressure and pulse rate in the adult population. Do not use this device on infants or persons who cannot express their intentions.
  • Page 22 APPLYING THE ARM CUFF 3. Apply the cuff to your left upper arm so the blue arrow is centered on the inside of your arm and aligned with your middle finger. The air tube runs down the inside of your arm. The bottom of the cuff should be approximately 1/2"...
  • Page 23 APPLYING THE ARM CUFF APPLYING THE CUFF ON THE RIGHT ARM When taking a measurement using the right arm use this instruction for Step 4 on page 22. Apply the cuff to your right upper arm so the blue arrow and the air tube runs along the inside of your elbow.

  • Page 24: Taking A Measurement

    TAKING A MEASUREMENT The monitor automatically determines your ideal inflation level. In rare circumstances when a higher inflation may be necessary, the monitor automatically re-inflates the cuff up to 30 mmHg higher than the initial inflation and restarts the measurement. CAUTION Operate the device only as intended.
  • Page 25 TAKING A MEASUREMENT 2. Press the START/STOP button. All symbols appear on the display. The cuff starts to inflate automatically. As the cuff inflates, the monitor automatically determines your ideal inflation level. This monitor detects the pulse during inflation. Do not move your arm and remain still until the entire measurement process is completed.
  • Page 26 TAKING A MEASUREMENT 4. When the measurement is complete, the arm cuff completely deflates. Your blood pressure and pulse rate are displayed. 5. Press the START/STOP button to turn the monitor off. NOTE: The monitor will automatically turn off after five minutes. When the measurement is complete, the Heartbeat Symbol flashes on the display with your blood pressure and pulse rate if the reading is above 135 for the Systolic Blood Pressure value and/or 85 for the...

  • Page 27: Special Conditions

    TAKING A MEASUREMENT SPECIAL CONDITIONS CAUTION Inflating to a higher pressure than necessary may result in bruising where the cuff is applied. If your systolic pressure is known to be more than 220 mmHg, press and hold the START/STOP button until the monitor inflates 30 to 40 mmHg higher than your expected systolic pressure.

  • Page 28: Using The Memory Function

    USING THE MEMORY FUNCTION The monitor is designed to store the blood pressure and the pulse rate in the memory every time a measurement is completed. The monitor automatically stores up to 60 sets of measurement values (blood pressure and pulse rate). When 60 sets of measurement values are stored, the oldest record is deleted to save the most recent values.
  • Page 29 USING THE MEMORY FUNCTION 2. Press the MEMORY button to display the most recent set of measurement values on the screen. The values are displayed from the most recent to the oldest. NOTES: • The date and time are alternately displayed with the measurement values.

  • Page 30: To Delete All Values Stored In The Memory

    USING THE MEMORY FUNCTION TO DELETE ALL VALUES STORED IN THE MEMORY You cannot partially delete values stored in the memory. All values will be deleted. 1. First press the MEMORY button. While holding it down, press the START/STOP button together for more than 2 seconds. All values will be deleted.

  • Page 31: Care And Maintenance

    CARE AND MAINTENANCE To keep your digital blood pressure monitor in the best condition and protect the unit from damage, follow the directions listed below: Keep the monitor in the storage case when not in use. Make sure the AC Adapter is placed under the main unit so that is does not damage the display.
  • Page 32 Always replace all the batteries with new ones at the same time. Use the unit consistent with the instruction provided in this manual. CAUTION Changes or modification not approved by Omron Healthcare will void the user warranty. Do not disassemble or attempt to repair the unit or components.

  • Page 33: Error Indicators And Troubleshooting Tips

    ERROR INDICATORS AND TROUBLESHOOTING TIPS ERROR INDICATORS SYMBOL Cuff under-inflated. Cuff not applied correctly. Cuff over-inflated Monitor could not detect pulse wave. Air plug is not connected. Batteries are worn CAUSE Remove the arm cuff. Read, “Taking a Measurement”. Reapply the arm cuff and take another measurement.

  • Page 34: Troubleshooting Tips

    ERROR INDICATORS AND TROUBLESHOOTING TIPS TROUBLESHOOTING TIPS PROBLEM No power. No display appears on the unit. Measurement values appear too high or too low. CAUSES AND SOLUTIONS Replace all four batteries with new ones. Check the battery installation for proper placement of the battery polarities.

  • Page 35: Fcc Statement

    FCC STATEMENT Note: POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for U.S.A. only) This product has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 36: Warranty

    Repair or replacement is our only responsibility and your only remedy under the above warranties. To obtain warranty service contact Omron Healthcare for the address of the repair location. Shipping instructions and repair information is available by calling 1-800-634-4350 or visit our website at www.omronhealthcare.com.

  • Page 37: Specifications

    Model: Display: Measurement Range: Accuracy/Calibration: Pressure: ±3mmHg or 2% of reading Inflation: Deflation: Rapid Air Release: Pressure Detection: Measurement Method: Oscillometric method Pulse Wave Detection: Capacitance type pressure sensor Power Source: Battery Life: Operating Temperature 50ºF to 104ºF (10ºC to 40ºC) /30 to 85% RH /Humidity: Storage Temperature /Humidity/Air Pressure: /700 - 1060 hPa...
  • Page 38 Manufactured by OMRON HEALTHCARE Made in China Distributed by: OMRON HEALTHCARE, INC. 1200 Lakeside Drive Bannockburn, Illinois 60015 www.omronhealthcare.com Copyright © 2008 Omron Healthcare, Inc.
