Omron HEM-630 Instruction Manual

Ultra compact wrist blood pressure monitor with intellisense

Hide thumbs

Table Of Contents

Instruction Manual

Ultra Compact Wrist

Blood Pressure Monitor

with

Model HEM-630

Thank you for purchasing the Omron Ultra Compact Wrist Blood

Pressure Monitor with IntelliSense™. Please read this instruction

manual thoroughly before operating to assure proper use.

For specific information on your own blood pressure,

CONTACT YOUR PHYSICIAN.

Table of Contents

Summary of Contents for Omron HEM-630

Page 1 Instruction Manual Ultra Compact Wrist Blood Pressure Monitor with Model HEM-630 Thank you for purchasing the Omron Ultra Compact Wrist Blood Pressure Monitor with IntelliSense™. Please read this instruction manual thoroughly before operating to assure proper use. For specific information on your own blood pressure,...
Page 2: Table Of Contents
Contents Introduction ……………………………………………………………………… 2 Know Your Unit ………………………………………………………………… 3 Battery Installation/Replacement ……………………………………………… 4 Program Date and Time ……………………………………………………… 5, 6 Suggestions for Measuring Blood Pressure …………………………………… 7 How to Apply the Wrist Cuff ………………………………………………… 8,9 How to Take a Reading …………………………………………………… 10,11 Memory Feature ……………………………………………………………...
Page 3: Introduction
Introduction Thank you for purchasing the Omron HEM-630 Ultra Compact Wrist Blood Pressure Monitor. This remarkable instrument is ideal for people who frequently monitor their own blood pressure because it’s so compact and easy to use. There is no tricky arm cuff, just a small, pre-formed wrist cuff that is easy to apply.
Page 4: Know Your Unit
Accessories Two AAA Alkaline batteries (LR03) INTELLISENSE™ Blood Pressure Monitor is a global brand name of blood pressure monitor equipped with bio-information sensing and high performance fuzzy logic technology, which are the key technologies of OMRON. With this excellent sensing technology, the monitor can achieve "accurate measurement".
Page 5: Battery Installation/Replacement
Battery Installation/Replacement Insert the batteries. (1) Slide the Battery Cover in the direction of an arrow. (2) Open the Battery Cover. (3) Insert two AAA batteries with the polarities in correct direction. (4) Pull the Battery Cover toward yourself. (5) Slide the Battery Cover to close. * Battery Cover slides to open and close.
Page 6: Program Date And Time
Program Date and Time Set the year, month, date, and time. Press the Time Setting button with something having a sharp point (such as ball-point pen) while the power is off. • "0:00" or the current time (when the time is already set) is displayed.
Page 7 3. Set the "Date". Press the Time Setting button. • " / 1" (date) is displayed. • Press the Memory Call button and set the number representing the "Date". 4. In the same manner, set the "Hour" and "Minute". • The number representing the "Hour" is displayed in the 12-hour unit of morning and afternoon.
Page 8: How To Apply The Wrist Cuff
How to Apply the Wrist Cuff Wrap the Wrist Cuff. 1. Place the wrist cuff over your left wrist with your left thumb facing upward. 2. Hold the bottom part of the wrist cuff and wrap it around the wrist while pulling so that it fits snugly. * Unless the wrist cuff is wrapped snugly, correct measurement may not be possible.
Page 9: Blood Pressure
Suggestions Before Measureing Blood Pressure Align the wrist cuff with the level of your heart (breast height) and gently support your left hand with your right hand. 1. Avoid eating, smoking and exercising for at least 30 minutes before taking measurement. Also rest for at least 10 to 15 minutes before taking a reading.
Page 10: How To Take A Reading
How to Take a Reading When it is ready to measure, take the measurement in the following procedure. To start measurement, simply press the START/STOP button. 1. Press the START/STOP button. (1) Press the START/STOP button. Release the Button when the display turns on.

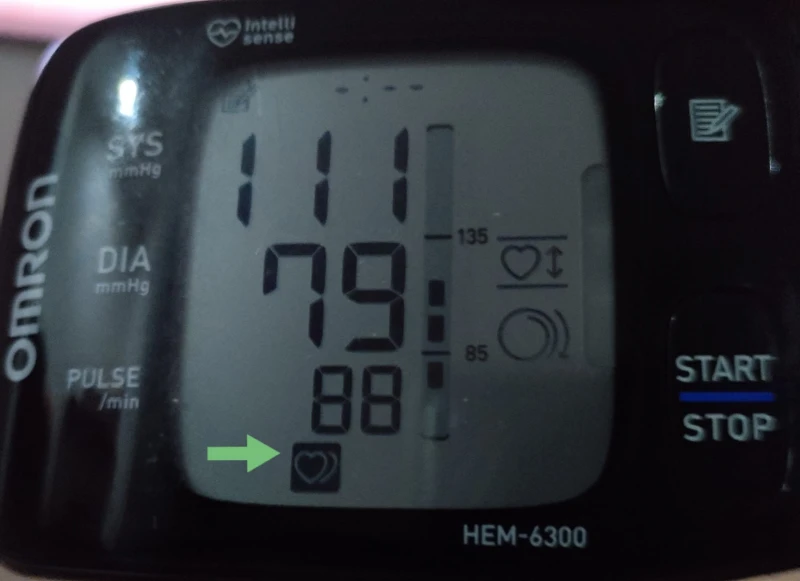

Page 11 2. Measurement is over and blood pressure values, pulse, time, and date are displayed. When the measurement is over, a automatically. Then a are displayed alternately, and pulse rate and date are displayed alternately. Display of measurement results * If a measurement cannot be made or the blood pressure values are displayed abnormally high (low), refer to Page 28.
Page 12: Memory Feature
Memory Feature How to Use the Memory Function The HEM-630 Blood Pressure Monitor with Fuzzy Control has a function to record up to twenty-one measurements. 1. Press the MEMORY CALL button ("M" button). mmHg mmHg PULSE/min Press the "M" button.
Page 13 2. Press the START/STOP button to turn off the power. After reading the blood pressure values and pulse rate stored in the monitor, press the START/STOP button to turn off the power. * Even if you forget to turn off the power, the monitor will turn off automatically in approximately 2 minutes.
Page 14: Troubleshooting
The reading is extremely low ( or high). If you cannot get correct measurement with the methods above, do not tamper with the internal mechanism. Contact Omron Healthcare customer service at 1.800.634.4350 Occasionally, an individual’s physiological characteristics may cause too much error for measurement.
Page 15 When measurement is not being performed as normal, the following error messages may appear to indicate what is necessary for correct measurement. Error Display After several seconds After several seconds Troubleshooting Causes What to do Movement of Press the arm or body or START/STOP talking during button once...
Page 16 FCC Caution Caution Changes or modifications not expressly approved by Omron Healthcare, Inc. could void the user’s authority ot operate this product. Note: POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for U.S.A. only) This product has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
Page 17: Care And Maintenance
To protect your monitor from damage, please AVOID the following: Subjecting your monitor to extreme temperatures, humidity, and direct sunlight Washing or moistening the cuff Disassembling the monitor Subjecting the monitor to strong shocks (for example, dropping the monitor on the floor) Cleaning the monitor with volatile liquids.
Page 18: Warranty
Limited Five Year Warranty Your Omron HEM-630 Ultra Compact Wrist Blood Pressure Monitor with Intellisense™ is warranted to be free from manufacturing defects for a period of five years under normal use. The five year warranty excludes the monitor cuff. The cuff is warranted for a one year period. This warranty extends only to the original retail purchaser.
Page 19: Specifications
Electric Shock Protection: Accessories: * Please understand that specifications may be changed without prior notice. OMRON Automatic Blood Pressure Monitor HEM-630 Digital display Oscillometric method Pressure; 0 to 280 mmHg Pulse rate; 40 to 200 beats/min Pressure; Within ±4 mmHg Pulse rate;...
