LED Mini Courtesy Light
6316, 6317, 6318 and 6319
SAVE THESE INSTRUCTIONS
Form Number 69436 Rev. A
08-04
WARNING
Remove vessel from water before using any 120-volt power tools.
REQUIRED FOR INSTALLATION
• 3/4" (19mm) diameter hole saw or drill bit
• 18-gauge wire: white (positive) and black (negative)
• 1-amp fuse and fuse holder
• Crimp-type marine-grade connectors
• 12-volt switch (Attwood #7589, 14253, or 7563 or equivalent)
MOUNTING LOCATION
• Mount to any fl at surface – minimum clearance of 7/8" (22mm) required behind mounting surface
(measured from face of mounting surface). (Figure 1)
• Be sure there are no fuel, water or electric lines behind surface where you will be drilling.
CUT-OUT INSTRUCTIONS
1. At selected mounting location, carefully mark center of hole.
2. Use 3/4" (19mm) diameter hole saw or drill bit to cut hole.
MOUNTING INSTRUCTIONS
1. Add rubber grommet to light (Figure 2).
2. Connect wire to power source (see FINAL WIRING INSTRUCTIONS).
3. Snap light into hole.
FINAL WIRING INSTRUCTIONS
Connect to 12-Volt DC power source ONLY. All positive wires must be protected by a 1-amp fuse.
Higher voltage or failure to make proper wire and fuse connections will void the product warranty
(Figure 3).
Use crimp-type marine-grade connectors with suitable insulation.
1. Connect positive pole of 12VDC battery to red wire, 1-amp fuse, and switch (Figure 3).
2. Connect white wire from light to switch.
3. Connect black (negative) wire to negative pole of battery.
4. Neatly thread wires, avoiding areas where abrasion or snagging may occur.
ATTWOOD LIMITED 10-YEAR WARRANTY
This Attwood product carries a limited ten (10) year warranty. This is a non-serviceable (LED)
light source, any attempt to open or service the light voids warranty. See product catalog or
attwoodmarine.com for details.

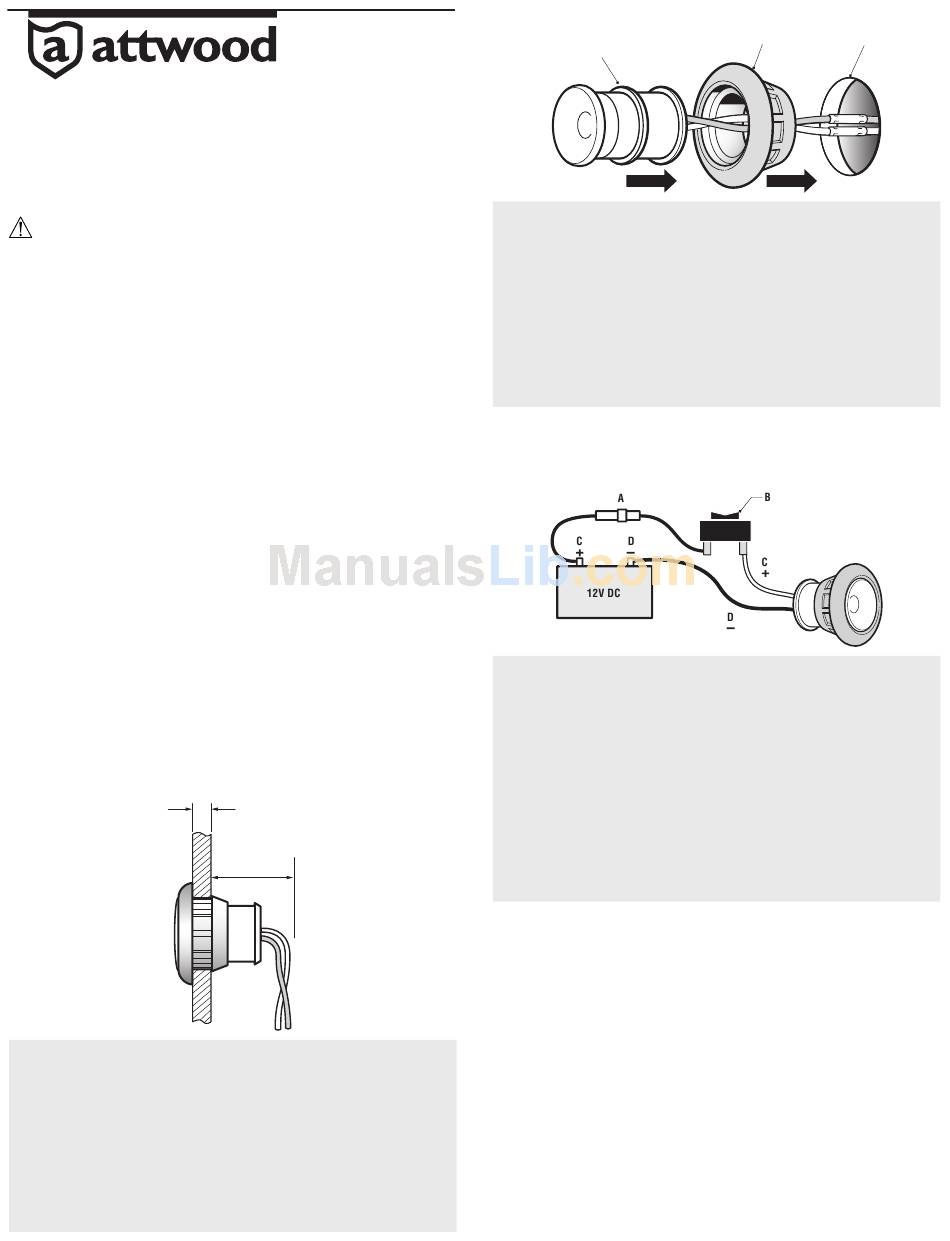

Figure 1 / Figura 1
A
Abbildung 1 / Figur 1
B
Figure 1
Figure 1
A. 5/8" (15mm) Mounting Surface
A. Épaisseur maximale de la surface
Maximum Thickness
de montage (15 mm)
B. 7/8" (22mm) Minimum Clearance
B. 22 mm Dégagement minimal
Figura 1
Abbildung 1
A. Grosor máximo de la superfi cie
A. Stärke der Montageoberfl äche 15 mm
de instalación de 5/8" (1,5 cm)
B. Mindestabstand 22 mm
B. Espacio mínimo de 22 mm
Figur 1
A. 16 mm maximal monteringsyttjocklek
B. minst 22 mm fritt utrymme
