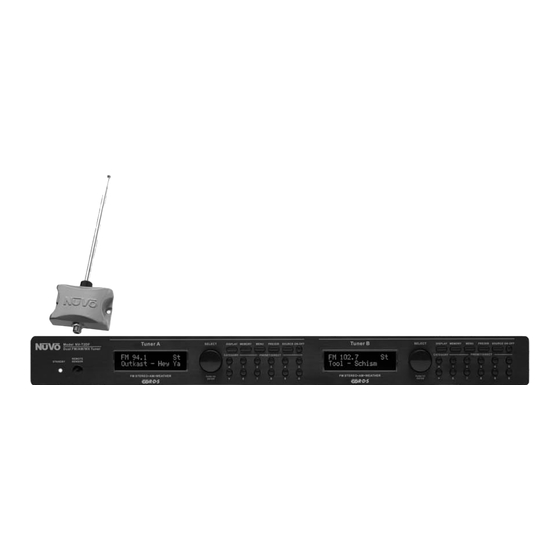

Nuvo NV-T2DF Installation Manual

Nuvo am/fm radio tuner installation manual nv-t2df
Hide thumbs Also See for NV-T2DF:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Nuvo NV-T2DF

Summary of Contents for Nuvo NV-T2DF

  • Page 2: Important Safety Instructions

    ENGLISH Danger Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably to noise induced hearing loss but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures: DURATION PER DAY (HOURS) 8 6 4 3 2 1...
  • Page 3 ELECTRIC ELECTRIC SERVICE SERVICE ENTRANCE ENTRANCE NEC NATIONAL ELECTRICAL CODE NEC NATIONAL ELECTRICAL CODE Page 3 ANTENNA ANTENNA LEAD-IN LEAD-IN WIRE WIRE GROUND GROUND CLAMPS CLAMPS ANTENNA ANTENNA DISCHARGE UNIT DISCHARGE UNIT NEC SECTION NEC SECTION 810-20 810-20 GROUNDING GROUNDING CONDUCTORS CONDUCTORS GROUND CLAMPS...
  • Page 4 OUTPUT ZONE 1 ZONE 2 ZONE 3 CONNECT TO NV-I8X USE NV-SLC1 CABLE SOURCE INPUTS SOURCE LINK Diagram is shown with the NuVo Concerto System and NuVoNet. AUX IN NuVoNet TRIGGER TRIGGER IR PASS-THRU ON=+12V ON=+12V AUDIO AUDIO IR INPUT...

  • Page 5: Front Panel

    Tuner A Model NV-T2DF Dual FM/AM/WX Tuner -–- Stereo –- FM 94.1 – - - - – – – REMOTE Classic Rock STANDBY SENSOR FM STEREO•AM•WEATHER Front Panel 1. Stand-by LED: This LED (Light Emitting Diode) indicates that the T2 is plugged into an AC power source.

  • Page 6: Back Panel

    3. Audio Output: A Stereo RCA output allows the tuner audio signal to be connected to an amplifier source, such as the NuVo Simplese, Essentia, and Concerto audio distribution systems.
  • Page 7 NV-T2RC3 Remote Control 1. Power: The power button turns the selected tuner on and off. 2. Scroll Buttons: These buttons are the equivalent of turning the front panel Select knob. The top button is the equivalent of turning the knob clockwise, and the bottom button is the equivalent of counterclockwise. 3.
  • Page 8 Direct IR Control The T2 is designed for IR control via IR received by an audio distribution system. In the NuVo Simplese or Essentia audio distribution systems, the IR emitter outputs act as a repeater to IR signals incident on the system keypads. The T2's wired IR connector is a 3.5mm two-conductor (mono) jack labeled “IR...
  • Page 9 “Source” button for either Tuner A or Tuner B on the face of the T2 and stepping through FM, AM, and WX (Weather Band) to Aux., fig. 6. Fig . 4 Auxiliary Audio Source AUX IN USE ONLY NuVo NV-T2PAS POWERED ANTENNA SYSTEM ANTENNA INPUT TUNER B Fig . 5 TUNER...
  • Page 10 Antenna Input The T2 ships with a proprietary amplified AM/FM antenna. This antenna is designed to work only with the NuVo T2 series tuners. It can be located up to 200 feet from the tuner location, and we recommend 75-ohm RG 6 coaxial cable with a standard F style connector on each end.

  • Page 11: Front Panel Menu Controls

    II. Front Panel Menu Controls The T2 has many settings available in the menus. This allows for many specialized set up options for basic tuner operation. The menu is accessed from the front panel by pressing and holding the “MENU” button. Once in menu mode, you can scroll through the menu options by turning the “Select”...
  • Page 12 Operating Mode Concerto Source 1-6: This must be set for the appropriate NuVo Concerto source input, if the T2 is going to be used with Concerto's NuVoNet control network (see pg. 17 Using the T2 with Concerto and NuVoNet).
  • Page 13 Audio Settings These selections are intended for some stand-alone applications. They should be left at default settings for NuVo audio systems. These systems allow identical audio control on a per-zone basis. Bass EQ: Bass output can be adjusted +12 dB or down to 12 dB.
  • Page 14 AUX Input Disable/Enable: The T2 has an auxiliary audio input that allows access through either of the tuners to an additional audio source. To use this you must first enable the input in the menu options. AUX Gain: The audio input from an auxiliary source can be adjusted to match the output of the T2's Tuner A and Tuner B.

  • Page 15: Stand-Alone Front Panel Use Of The T2

    16 characters. The Radiotext message will be displayed on Display Pads in an integrated Nuvo Concerto system. Radiotext was intended for display of artist and title information. Page 15...
  • Page 16 Pushing the “Source” button scrolls between AM, FM, WX (Weather Band), and Auxiliary (Aux.) modes. The auxiliary mode is optional and must be turned on through the T2 Configuration software (see NV-T2DF Configuration software, advanced settings, pg. ) or through the advanced settings menu accessed at the front panel (see Front Panel Menu Controls).

  • Page 17: Using The T2 With The Concerto Nuvonet

    Port, fig., 22. This connection will then enable bi- directional NuVoNet communication with the Display Pads. Fig. 20 Model NV-T2DF NuVoNet Dual XM Tuner IR PASS-THRU NuVo Techonlogies LLC• Cincinnati Ohio USA www.nuvotechnologies.com IR INPUT SYSTEM Fig. 21 . There you can Fig. 22 NuVoNet...
  • Page 18 Operating the T2 with the Concerto Display Pad By following the previous steps you should now be able to operate the T2 from any of the Concerto Display Pads. The Concerto Display Pads have secondary tuner functions silk-screened on the bezel below the associated keys.

  • Page 19: T2 Configuration Software

    T2 Configuration Software Basic setup and operation of the T2 is easily done from the front panel, the included T2RC3 remote, or the Concerto Display Pad. The T2 package includes the T2 Configurator setup software designed to quickly move you through the Tuners' setup options in a methodical fashion, and allow access to the more advanced setup features.

  • Page 20: Regional Setup

    2.2 Regional Setup: Depending on your geographic location, the tuner needs to be set for the proper tuning standard. The choices are USA and Canada, Western Europe, Australia, and New Zealand. Countries outside these geographic locations need the advanced custom setting (see Advanced Settings: 4.1 Custom Regional Setup).

  • Page 21: Erase Bank

    3.2 Add Bank: If you want to add a bank of 10 presets, the “Add Bank “ button will bring up a window that allows you to name the bank and automatically add it to the T2's presets. 3.2 Add Bank 3.3 Rename Bank: This button allows you to give a bank of presets a customized name.

  • Page 22: Fine Tuning

    This setting and balance, treble, and bass are best left at the default settings for use with an audio distribution system such as NuVo systems, that have built-in equalization capability. You may want to make adjustments when the T2 is being used as a stand-alone component with an amplifier.

  • Page 23: Aux Input

    4.5 AUX Input: The T2 has an additional input that allows an external device to be controlled through the T2's IR pass through. When this input is enabled, the level of the signal input can be adjusted up or down to match the tuners' signal output level.

  • Page 24: Update System

    6.1 Categories Tab 6.2 FM Freqs: This tab lists all the available frequencies within the FM band. When highlighted, the Frequency Information on the right side of the tab allows you to name and categorize each desired frequency in up to four different categories. The Category drop down menus will only display the categories you have turned on.

  • Page 25: Nv-T2Df Specifications

    7.2 Successful Download: When the download is complete a final window will appear indicating that all the information has downloaded successfully. Actual download time will vary based on your computer's processing capabilities. 7.2 Successful Download NV-T2DF Specifications FM Section Tuning Range 87.5 to 108 MHz IF Frequency 10.7 MHz...
