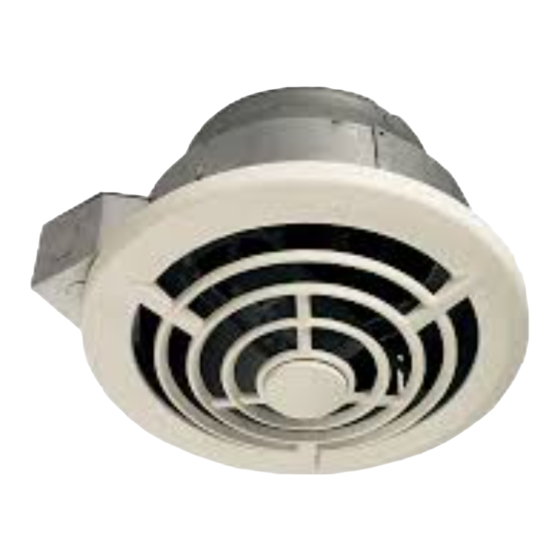

8˝ Vertical Ceiling Fan
MODEL:  8210 SERIES
IMPORTANT SAFETY INSTRUCTIONS
WARNING: TO REDUCE THE RISK OF FIRE. ELECTRIC 
SHOCK, OR INJURY TO PERSONS, OBSERVE THE 
FOLLOWING:
A. Use this unit only in the manner intended by the manufacturer.
If you have questions, contact the manufacturer.
B. Before servicing or cleaning unit, switch power off at service
panel and lock service panel to prevent power from being
switched on accidentally.
When the service disconnecting means cannot be locked,
securely fasten a prominent warning device, such as a tag,
to the service panel.
CAUTION:
For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
To reduce risk of injury to persons, install at least 7 feet above
floor.
INSTALLATION INSTRUCTIONS
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC 
SHOCK, OR INJURY TO PERSONS, OBSERVE THE 
FOLLOWING:
A. Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
B. Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equipment
to prevent back drafting. Follow the heating equipment
manufacturer's guideline and safety standards such as those
published by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration and
Air Conditioning Engineers (ASHRAE), and the local code
authorities.
C. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
E. If this unit is to be installed over a tub or shower, it must be
marked as appropriate for the application.
F. NEVER place a switch where it can be reached from a tub or
shower.
WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE 
FIRE
A. Never leave surface units unattended at high settings. Boilovers
cause smoking and greasy spillovers that might ignite. Heat oils
slowly on low or medium settings.
B. Always turn hood ON when cooking at high heat or when
flambeing food (i.e. Crêpes Suzette, Cherries Jubilee,
Peppercorn Beef Flambé').
C. Clean ventilating fans frequently. Grease should not be allowed
to accumulate on fan or filter.
D. Use proper pan size. Always use cookware appropriate for the
size of the surface element.
WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS 
IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE 
THE FOLLOWING
A. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or
metal tray, then turn off the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE
AND CALL THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN—You may be burned.
C. DO NOT USE WATER, including wet dishcloths or towels —
a violent steam explosion will result.
D. Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you
already know how to operate it.
READ & SAVE THESE INSTRUCTIONS!
TYPICAL INSTALLATION IN
EXISTING CONSTRUCTION
7" DUCT
(PURCHASE LOCALLY)
MODEL 834 FILTER
(SOLD SEPARATELY)
GRILLE
2. The fire is small and contained in the area where it
started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit.
*Based on "Kitchen Firesafety Tips" published by NFPA.
• Do not mount over tub or in shower stall enclosure.
• Suitable for use with solid-state speed control.
•   C AUTION: To reduce risk of fire and to properly exhaust air, be
certain the unit is ducted to the outside. Do not vent exhaust air
into spaces within walls or ceiling or into attics, crawl spaces or
garages.
•   W ARNING: Disconnect power before servicing.
INSTALLATION IN EXISTING CONSTRUCTION
PREPARING THE INSTALLATION SITE
IMPORTANT: 18" minimum clearance space above ceiling is
required.
1. Cut 8
" diameter opening in ceiling adjacent to ceiling joist.
7
8
Install header so that housing can be supported on two sides.
If opening cannot be located adjacent to joist, install two
headers for proper housing support.
2. Disconnect power at circuit breaker. Run house wiring (with
ground) from wall switch to fan location.
IMPORTANT: Be certain all wiring complies with electrical codes
and the unit is properly grounded.
INSTALLATION INSTRUCTIONS
ROOF CAP
(SOLD SEPARATELY)
ADJUSTABLE
MOUNTING
BRACKET
OUTLET BOX
GRILLE KNOB
