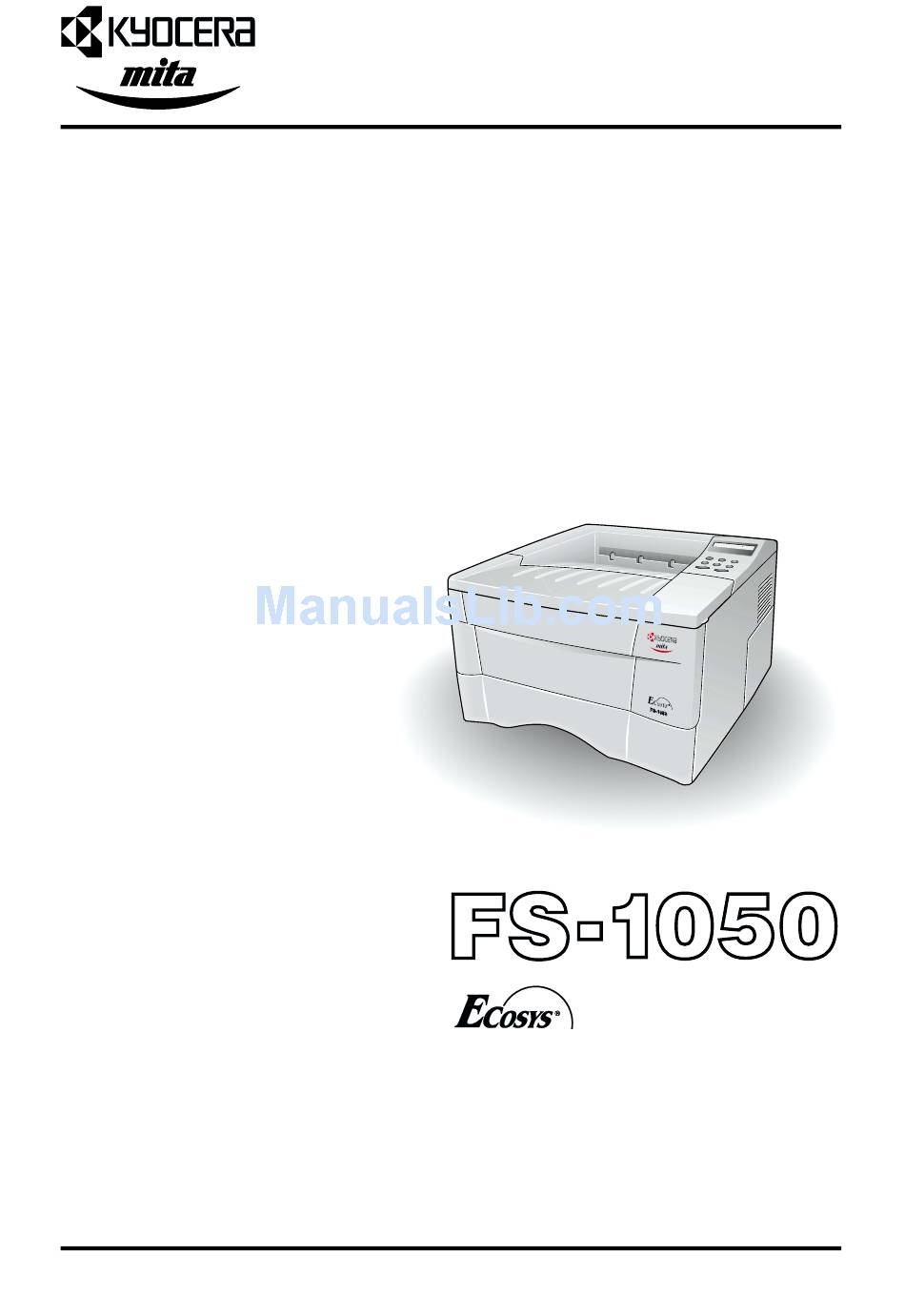

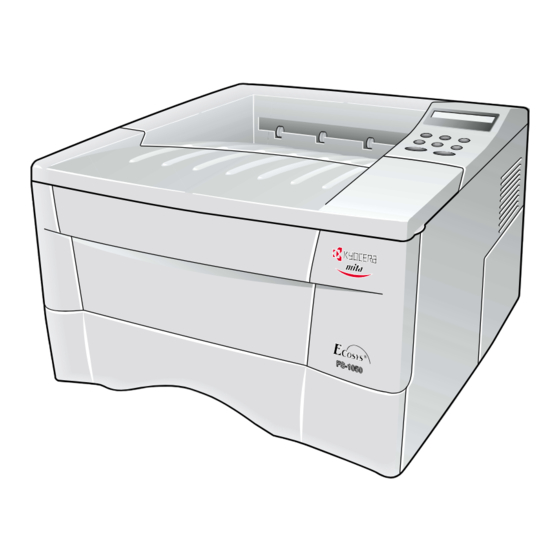

  • Page 1 Page Printer Installation Guide...

  • Page 2: Table Of Contents

    Kyocera Corporation is prohibited. Any copies made of all or part of this manual, any copyright- able subject must contain the same copyright notice as the material from which the copying is done.

  • Page 3: Step

    Toner Container (TK-17) Power Cord Cleaning Cloth Installation Guide (this booklet) Kyocera Mita Digital Library CD-ROM Removing Shipping Material Remove the tape on the rear side of the printer, and remove the two spacers and printed notice from the paper cassette.

  • Page 4: Step

    STEP Positioning the Printer Make sure that the place of installation meets the following requirements: Clearance Be sure to secure enough space 30 cm (11-13/16 inches) around the printer. Prolonged use without sufficient clearance 40 cm may cause heat to build up (15-3/4 25 cm (9-7/8 inches)

  • Page 5: Step

    STEP Installing the Toner Container Before you can use the printer for the first time, you must set up the printer by installing the toner container and interfacing with the computer. Open the printer top cover all the way. Confirm that the lock lever is in the release (UNLOCK) position.
  • Page 6 Carefully remove the protective seal. Install the toner container into the printer. Push firmly on the top of the toner con- tainer at the positions marked PUSH HERE.
  • Page 7 Push the lock lever to the lock (LOCK) position. Close the top cover. To remove the toner container Pull the lock lever #1 to the release (UNLOCK) position, pull the lock lever Lock Lever #2 #2, then gently remove the toner con- tainer.

  • Page 8: Step

    STEP Connecting the Printer to the Computer There are various ways of connecting the printer to the computer, such as through the parallel interface connector, through the USB (Universal Serial Bus) interface connec- tor, through the optional serial interface board kit (IB-10E) or through the optional net- work interface board.

  • Page 9: Parallel Interface Connection

    Parallel Interface Connection Plug one end of the printer cable (not included) into the parallel interface con- nector on the rear of the printer. Clips • Use a parallel printer cable that complies with the IEEE1284 standards. • The printer will work best if it is installed near the computer.

  • Page 10: Step

    STEP STEP Connecting the Power Cord This section describes the procedure for connecting the power cable and various cautions. Notes on Power Supply • Install the printer near an AC wall outlet, preferably one that can be used for the printer alone. •...

  • Page 11: Step

    Adding Paper to the Paper Cassette and STEP MP Tray The paper cassette can accommodate A5 to Legal size paper and can hold approxi- mately 250 sheets. The Multi-Purpose tray can accommodate the various paper sizes and can hold approximately 50 sheets of paper. The following paper weights can be used with the printer.
  • Page 12 Pull the paper cassette all the way out of the printer. Adjust the position of the paper stopper Release Button located at the rear of the paper cassette. Press in the release button and slide the Paper Stopper stopper to the desired paper size. When shipped from the factory, the paper cas- sette is set to either A4 or Letter size.
  • Page 13 Make sure that the edges of the paper are aligned. Slide the paper into the paper cassette. Do not load more paper than will Load Limit fit under the load limits on the top of the paper guides. (the paper cassette will hold approx- imately 250 sheets of paper with a 80 g/m²...
  • Page 14 Multi-Purpose (MP) tray Pull the MP tray towards you until it stops. Pull out the subtray and unfold the flap. Subtray Flap Adjust the position of the paper guides on the MP tray. Standard paper sizes are attached to the MP tray. For stan- dard paper sizes, slide the guides to the position marked correspondingly.
  • Page 15 Envelopes Envelopes should be fed in the face-up position, right edge first. • Test a sample envelope on the printer and check that printing quality is satisfactory before purchasing. • To avoid trouble, we recommend that envelopes be delivered face-up using the face-up tray.

  • Page 16: Step

    STEP Using the Face-Up Output Tray Use the face-up output tray when you wish paper to be stacked with the printed side facing up (reverse order), or when you are printing on envelopes, postcards, trans- parencies, or thick paper. Pull on the face-up output tray to open Open the extension tray by pressing with your thumbs at the corners next to the hinges.

  • Page 17: Step

    STEP Turning the Power Switch On This section describes the procedure for turning on the printer’s power. During start-up, the language for the message display and status page of this printer can be selected from English, French, German, Italian, Spanish, and Portuguese. The default message language is English.

  • Page 18: Step

    The message display indication MSG language changes to that shown on the left and ? flashes. ? English Press the key repeatedly until the message display shows the desired language and then press the ENTER key. If you do not wish to change the setting, press the CANCEL key.

  • Page 19: Correcting A Paper Jam

    Correcting a Paper Jam If a paper jam occurs while you are printing, remove the jammed paper as described below. After you have removed the jammed paper, open and close the top cover once. Jam at the Face-down and Face-up Trays Open the face-up tray and remove the jammed paper as shown in the figure.
  • Page 20 Open the printer's front cover. Front Cover Lift the process unit together with the toner container out of the printer. Process Unit Remove the jammed paper. When pulling the paper, pull gently so as not to tear it. Torn pieces of paper are difficult to remove and may be easily over- looked, preventing recovery from the jam.

  • Page 21: Safety Information

    Important note on the interface connectors Be sure to turn off printer power before connecting or disconnecting an interface cable to the printer. For protection against static discharge which may be applied to the printer's internal electronics through the interface connector(s), keep any interface connector which is not in use capped using the protective cap supplied.

  • Page 22: Important Safeguards

    IMPORTANT SAFEGUARDS 1. Read all of these instructions and save these instructions for later use. 2. Unplug this product from the wall outlet before cleaning. 3. Do not use this product near water. 4. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.
  • Page 23 FS-1050 (as tested with the enhancement optional unit: PF-17) Description of device: The model FS-1050 is a 14-ppm, A4 size plain paper supporting page printer, utilizing laser, dry toner, etc. The printer can be equipped with the optional paper feeder model PF-17.
  • Page 24 Disclaimer We shall have no liability or responsibility to customers or any other person or entity with respect to any liability, loss or damage caused or alleged to be caused directly or indirectly by equipment sold or fur- nished by us, including but not limited to, any interruption of service, loss of business or anticipatory profits, or consequential damages resulting from the use or operation of the equipment or software.
  • Page 25 This product has been developed and manufactured with the express interest of reducing the impact on the environment. Using Kyocera's innovative cartridge free technology, Kyocera has cre- ated an advanced printing system that does not require the wasteful replacement and disposal of a cartridge.
  • Page 26 (CF) that are best suited for use with this printer. Network Interface Cards See your Kyocera Mita dealer for purchasing information of the network interface cards that is best suited for use with this printer. Use only the network interface cards operating from DC 3.3V.
  • Page 27 U.S. registered mark. All other brand and product names are registered trade- NERGY marks or trademarks of their respective companies. This Kyocera Mita page printer uses PeerlessPrintXL to provide the HP LaserJet compatible PCL6 language emulation. PeerlessPrintXL is a trademark of The Peerless Group, Redondo Beach, CA 90278, U.S.A.
  • Page 28 3. Limitation of Remedies IBM's entire liability under this license is the following; 1) For any claim (including fundamental breach), in any form, related in any way to this license, IBM's liability will be for actual damages only and will be limited to the greater of: a) the equivalent of U.S.$25,000 in your local currency;...
  • Page 29 This page intentionally left blank.
  • Page 30 This page intentionally left blank.
  • Page 31 This page intentionally left blank.

  • Page 32: Operator Panel

    • Displays online help messages on the message display when paper jam errors occur. Finalizes numeric values and other selections. ENTER For more details on operation procedures, see the Operation Guide containded as a PDF file in the Kyocera Mita Digital Library CD-ROM supplied with the printer. Printed in China...
