Additional information on this product and
answers to frequently asked questions can be
found at our Customer Support Website.
Printed using VOC (Volatile Organic
Compound)-free vegetable oil based ink.
©2011 Sony Corporation Printed in Thailand
Interchangeable Lens
Digital Camera
Instruction Manual
E-mount

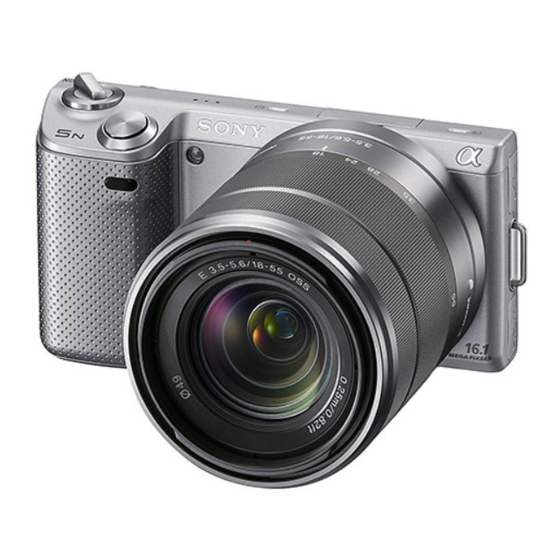

NEX-5N
4-288-916-12(1)
Preparing the camera
Mastering the basic
operation
Using the recording
functions
Using the playback
functions
Checking the functions
available
Importing images to the
computer
Others

Advertisement

loading

Summary of Contents for Sony NEX-5N

  • Page 1 Importing images to the computer Others Additional information on this product and answers to frequently asked questions can be found at our Customer Support Website. Printed using VOC (Volatile Organic Compound)-free vegetable oil based ink. ©2011 Sony Corporation Printed in Thailand NEX-5N...
  • Page 2: Important Safety Instructions

    English Owner’s Record The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No. NEX-5N Serial No. ______________________________...
  • Page 3: Checking The Supplied Items

    • Camera (1) α camera • Battery charger BC-VW1 (1) – α Handbook • Instruction Manual (This manual) NEX-5N • Power cord (mains lead) (1) (not • Body cap (1) (attached to the supplied in the U.S.A. and Canada) camera) NEX-5ND •...
  • Page 4: Identifying Parts

    Identifying parts See the pages in parentheses for details of operation. A ON/OFF (Power) switch (25) B Shutter button (28) C Remote sensor D AF illuminator/Self-timer lamp/ Smile Shutter lamp E Speaker F Microphone G Smart Accessory Terminal 2 (23) H Lens (19) I Lens release button (20) When the lens is removed...
  • Page 5 (USB) terminal B Hook for shoulder strap Attaching the shoulder strap is recommended not to drop the camera. C HDMI terminal (54) D Light sensor E LCD monitor/Touch panel (34) The tilting LCD monitor of the camera allows flexible shooting positions.
  • Page 6 Flash HVL-F7S A Screw A Battery/memory card cover (17, B Flash* C Connector* B Tripod receptacle • Use a tripod with a screw length * Do not touch this part directly. of less than 5.5 mm (7/32 inch). If it is dirty, wipe it off with a soft You will be unable to firmly clean cloth.
