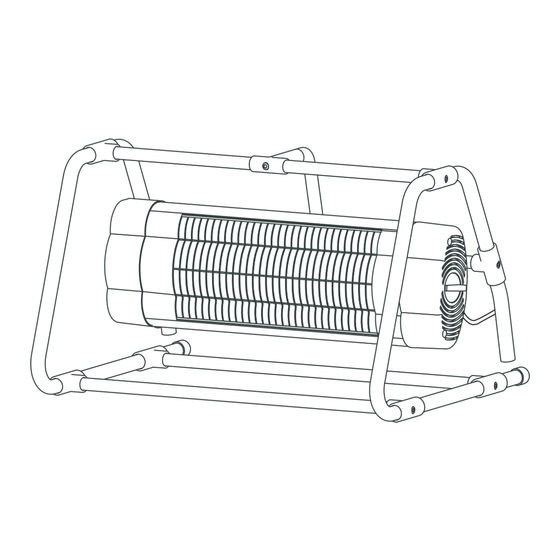

IR CARBON FIBER UTILITY
HEATER
MODEL #PHB-1500
Français p.
Español p.
Lowes.com
1
14
27
US

Advertisement

Table of Contents
loading

Summary of Contents for Utilitech PHB-1500

  • Page 1 ITEM #0689347 IR CARBON FIBER UTILITY HEATER MODEL #PHB-1500 Français p. Español p. ATTACH YOUR RECEIPT HERE Serial Number Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-866-994-4148, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
  • Page 2: Specification

    NOTE SAFETY INFORMATION This product can be freestanding or wall mounted. 14.To avoid fire or shock hazard, plug the unit directly into a 120 V AC electrical outlet. SPECIFICATION 15.To disconnect heater, turn controls to OFF, then remove plug from outlet. Pull firmly on the plug, DO NOT unplug by pulling on the cord.
  • Page 3: Package Contents

    PACKAGE CONTENTS HARDWARE CONTENTS (shown actual size) M6x30 ST4x35 Diameter 8 (mm) Hexagonal Screws Screws Wall anchors screwdriver Qty:10 Qty:2 Qty:2 Qty:1 PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.
  • Page 4 ASSEMBLY INSTRUCTIONS - FREESTANDING 3. Turn over the assembly again. Secure the long side of handle tube (G) to the top tube (F) with an 1. Attach the top tube (F), the connecting tube (B) and two bottom tubes (D) to one of the support M6x30 screw (AA).
  • Page 5 ASSEMBLY INSTRUCTIONS - WALL-MOUNTED ASSEMBLY INSTRUCTIONS - FREESTANDING 5. Remove the two middle pre-assembled screws from the back of the heater (C) by phillips 1. Remove the four pre-assembled screws from the back of heater (C), then attach the handle (I) and screwdriver (not included).
  • Page 6: Troubleshooting

    After assembly, the product should appear like this: TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION The heater does not 1.The power cord is not plugged in. 1.Plug the power cord into an electrical turn on. 2.The electricity at the main fuse box is outlet.
  • Page 7: Warranty

    Specifications are subject to change without notice or obligation. This limited warranty gives the original purchaser specific legal rights. Other rights may vary from state to state. Printed in China Utilitech and UT Design® is a registered trademark of LF, LLC. All Rights Reserved. Lowes.com Lowes.com...
  • Page 8 ARTICLE #0689347 RADIATEUR INFRAROUGE EN FIBRE DE CARBONE À USAGE GÉNÉRAL MODÈLE #PHB-1500 JOIGNEZ VOTRE REÇU ICI Numéro de série Date d’achat Des questions, des problèmes, des pièces manquantes? Avant de retourner l’article au détaillant, appelez notre service à la clientèle au 1 866 994-4148, entre 8 h et 18 h (HNE), du lundi au jeudi, ou entre 8 h et 17 h (HNE) le vendredi.
  • Page 9: Caractéristiques

    REMARQUE CONSIGNES DE SÉCURITÉ Ce produit peut être autoportant ou fixé à un mur. inflammables sont utilisés ou entreposés. Gardez l’appareil à distance des surfaces chauffées et des CARACTÉRISTIQUES flammes nues. 13. Branchez toujours les radiateurs directement sur une prise murale. N’utilisez jamais de rallonge ni Tension nominale 120 V (60 Hz) de prise mobile (barre d’alimentation).
  • Page 10 disponible. QUINCAILLERIE INCLUSE (grandeur réelle) NE CONTOURNEZ PAS CETTE MESURE DE SÉCURITÉ DE LA FICHE DE MISE À LA TERRE. AVERTISSEMENT : Il est tout à fait normal que le cordon d’alimentation soit chaud au toucher. Toutefois, si la fiche n’est pas correctement enfoncée dans la prise, elle peut surchauffer. Si cela se produit, tentez de brancher la fiche sur une autre prise.
  • Page 11 INSTRUCTIONS POUR L’ASSEMBLAGE – MONTAGE AUTOPORTANT 1. Fixez le tube supérieur (F), le tube de jonction (B) et les deux tubes inférieurs (D) à l’un des tubes 3. Retournez de nouveau l’ensemble. Fixez le côté long du tube de poignée (G) au tube supérieur (F) de soutien (A) à...
  • Page 12 INSTRUCTIONS POUR L’ASSEMBLAGE – MONTAGE MURAL INSTRUCTIONS POUR L’ASSEMBLAGE – MONTAGE AUTOPORTANT 5. Retirez les deux vis préassemblées au milieu de l’arrière du radiateur (C) à l’aide d’un tournevis 1. Retirez les quatre vis préassemblées de l’arrière du radiateur (C), puis fixez la poignée (I) et le cruciforme (non inclus).
  • Page 13: Dépannage

    Une fois l’assemblage terminé, l’article devrait ressembler à ceci : DÉPANNAGE PROBLÈME CAUSE POSSIBLE MESURE CORRECTIVE Le radiateur ne 1. Le cordon d’alimentation n’est pas 1. Branchez le cordon d’alimentation s’allume pas. branché. sur une prise. 2. L’alimentation électrique de la boîte à 2.
  • Page 14: Liste Des Pièces De Rechange

    Cette garantie limitée confère à l’acheteur initial des droits précis. Il est possible qu’il dispose également d’autres droits, qui varient d’un État ou d’une province à l’autre. Imprimé en Chine Utilitech et le motif UT Design® sont des marques de commerce déposées de LF, LLC. Tous droits réservés.
  • Page 15 ARTICLE #0689347 CALENTADOR INFRARROJO PARA USO GENERAL DE FIBRA DE CARBONO MODELO #PHB-1500 ADJUNTE SU RECIBO AQUÍ Número de serie Fecha de compra ¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, llame a nuestro Departamento de Servicio al Cliente al 1-866-994-4148, de lunes a jueves de 8 a.m. a 6 p.m.
  • Page 16: Especificaciones

    NOTA INFORMACIÓN DE SEGURIDAD Este producto se puede instalar de forma independiente o en una pared. 14. Para evitar riegos de incendio o descargas eléctricas, enchufe la unidad directamente en un ESPECIFICACIONES tomacorriente de 120 V de CA. 15. Para desconectar el calentador, gire los controles a la posición de apagado (OFF) y, luego, retire Clasificación de voltaje 120 V (60 Hz) el enchufe del tomacorriente.
  • Page 17: Contenido Del Paquete

    CONTENIDO DEL PAQUETE ADITAMENTOS (se muestran en tamaño real) Tornillos To r n i l l o s Anclas de Destornillador M6x30 ST4x35 expansión de pared hexagonal Cantidad: Cantidad: de 8 mm de diámetro Cantidad: 1 Cantidad: 2 PREPARACIÓN Antes de comenzar a ensamblar el producto, asegúrese de tener todas las piezas. Compare las piezas con la lista del contenido del paquete y la lista del contenido de aditamentos.
  • Page 18 INSTRUCCIONES DE ENSAMBLAJE: INDEPENDIENTE 1. Conecte el tubo superior (F), el tubo de conexión (B) y los dos tubos inferiores (D) a uno de 3. Gire nuevamente el ensamblaje. Fije el lado largo del tubo de manejo (G) en el tupo superior (F) los tubos de soporte (A) con cuatro tornillos M6x30 (AA).
  • Page 19: Parte Frontal

    INSTRUCCIONES DE ENSAMBLAJE: MONTAJE EN PARED INSTRUCCIONES DE ENSAMBLAJE: INDEPENDIENTE 5. Retire los dos tornillos centrales preensamblados de la parte posterior del calentador (C) con un 1. Retire los cuatro tornillos preensamblados de la parte posterior del calentador (C); luego conecte destornillador Phillips (no se incluye).
  • Page 20: Solución De Problemas

    Después del ensamblaje, el producto debe verse así: SOLUCIÓN DE PROBLEMAS PROBLEMA CAUSA POSIBLE ACCIÓN CORRECTIVA El calentador no 1. El cable de alimentación no está 1. Enchufe el cable de alimentación en enciende. enchufado. un tomacorriente. 2. No hay electricidad en la caja de 2.
  • Page 21 Esta garantía limitada le otorga al comprador original derechos legales específicos. Otros derechos podrían variar según el estado. Impreso en China Utilitech y UT Design® son marcas registradas de LF, LLC. Todos los derechos reservados. Lowes.com...
