Page 1: User Manual
User Manual Bluetooth™ GPS Receiver English... - Page 2 Technologies Asia Pte Limited and are used under licence by Navman New Zealand. All rights reserved. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Navman New Zealand is under license.
-
Page 3: Important Safety Information
Mount the B10 in a position that is secure and does not obstruct the driver’s view. Do not mount the B10 in a way that may interfere with the safe operation of the vehicle, the deployment of air bags or other safety equipment. -
Page 4: Table Of Contents
Battery ...12 How do I charge the battery?...13 How do I position the B10 receiver in a vehicle? ...15 How do I connect the B10 receiver to my PDA or laptop?...16 How does my B10 get a GPS Fix?...16 Specifications...17... -
Page 5: Introduction
Introduction Whether you travel in your own country, or overseas, the B10 receiver will provide you with a Global Positioning System (GPS) based location accurate to within 5m (15ft) for 95% of the time. The B10 receiver is a dual-function GPS receiver, which can transmit satellite information to a PDA or laptop with Bluetooth interfaces. -
Page 6: Box Contents
B10 Bluetooth GPS Receiver | Introduction Box contents Item B10 receiver USB cable Hardware Warranty Agreement WEEE Compliance leaflet The following documentation is available on our website: User Manual GPS Frequently Asked Questions guide. To visit our website, see: http://www.navman.com. -
Page 7: Typographical Conventions
Type of Information Bold Components or items of special importance, including buttons, headings and options. Italics Indicates the name of a reference document. Icons The following icons are used throughout this manual: Icon Description Note Warning B10 Bluetooth GPS Receiver | Introduction... -

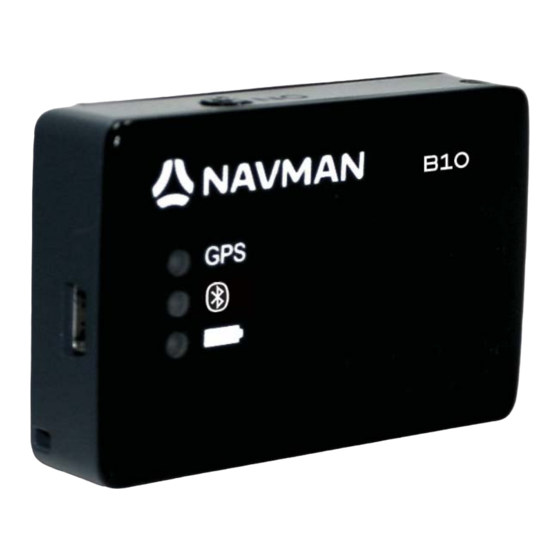

Page 8: Getting To Know Your B10
B10 Bluetooth GPS Receiver | Introduction Getting to know your B10 It is recommended that you familiarize yourself with the basic operations of your B10 receiver: Front Components Component Description orange light indicates your current GPS status. Off: The B10 receiver power is off. -
Page 9: Top Components
To turn off: Slide the button away from ON. Description If the vehicle power adapter is plugged in, the B10 receiver will use the external power supply instead of the internal batteries. A slot in which to connect a lanyard (not supplied). -
Page 10: Gps And Gps Signals
To guarantee the optimum GPS signal strength, ensure your B10 is outdoors, or in a vehicle outdoors and has an unobstructed view of the sky. Your B10 can operate in all weather types except snowfall. For more GPS information, see the GPS Navigation - Frequently Asked Questions guide, which is... -
Page 11: How Do I Get Started
Step Action Install the battery. Switch on the power. Create a Bluetooth link between the B10 receiver and your PDA or laptop computer. In this section Battery ...12 How do I position the B10 receiver in a vehicle?...15 How do I connect the B10 receiver to my PDA or laptop? ...16 How does my B10 get a GPS Fix? ...16... -
Page 12: Battery
B10 Bluetooth GPS Receiver | How do I get started? Battery The B10 receiver has an internal, rechargeable battery. For minimum time to obtain a GPS fix, ensure that the battery is always in the B10 receiver. The life of the battery is approximately 10 hours. -
Page 13: How Do I Charge The Battery
By Vehicle Power Adaptor You can use the vehicle power adapter to power the B10 receiver when in a vehicle. If the vehicle power adapter is plugged in, the receiver will use the external power supply and charge the internal battery. - Page 14 Plug the large end of the USB cable directly into a USB port on your computer (not a USB hub); plug the small end into the side of the B10 receiver. The battery status light on the front of your B10 receiver turns on.
-
Page 15: How Do I Position The B10 Receiver In A Vehicle
How do I position the B10 receiver in a vehicle? The B10 receiver and your PDA or laptop computer are mounted separately in your vehicle. Use the following guides to choose a suitable position for the B10 receiver: The receiver should be in a position where it has a good view of the sky and horizon. -
Page 16: How Do I Connect The B10 Receiver To My Pda Or Laptop
See your third-party software User Manual for more information. When you turn on your B10 receiver, it may take several minutes to get the first GPS fix. You can minimize the amount of time this takes by: Positioning the B10 receiver according to the guidelines. -
Page 17: Specifications
Version 1.1 SPP (Serial Port Profile) Within 10 m (33 ft) range with no obstruction In/Out Port. GPS signal (Out)/Command(In) with CMOS/TTL Level. B10 Bluetooth GPS Receiver | Specifications Output Format. NMEA0183 V2.2： GPGGA (1time/1 sec), GPGSA (1 time/5 sec.), GPGSV (1time /5 sec.), GPRMC (1time /1 sec.), GPVTG (1 time/1 sec),... -
Page 18: Support Information
B10 Bluetooth GPS Receiver | Support information Support information Support for Australia Navman Australia Pty Ltd PO Box 479 Gladesville, NSW 2111 Australia Support: http://support.navman.com Website: http://www.navman.com Support for New Zealand Navman New Zealand PO Box 68-155 Newton Auckland New Zealand Support: http://support.navman.com... - Page 19 MN000700A-G...
