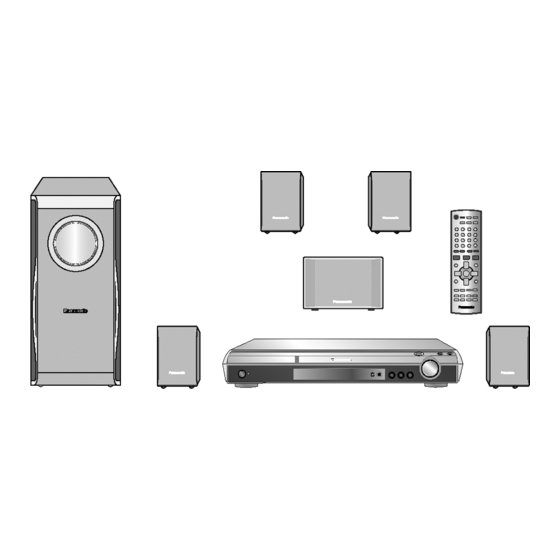

Panasonic SA-HT340GC Service Manual

Dvd home theater sound system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Specifications

lGeneral
Power Source:
Power consumption:
Dimensions (W×H×D):
Mass:
lAmplifier section
RMS Output Power: Dolby Digital Mode
lTotal RMS Dolby Digital
mode Power:
At 1kHz and total harmonic of 10%
lFront:
lCenter:
lSurround:
At 100Hz and total harmonic of 10%
lActive subwoofers:
PMPO Output Power:
DIN Output Power: Dolby Digital Mode:
lTotal DIN Dolby Digital mode Power:
At 1kHz and total harmonic of 1%
lFront:
lCenter:
lSurround:
At 100Hz and total harmonic of 1%
AC 110V-240V, 50/ 60Hz
90 W
430×60×342 mm
3kg
330 W
55 W/ Channel (5Ω)
55 W/ Channel (5Ω)
55 W/ Channel (5Ω)
55 W/ Channel (5Ω)
2800W
150 W
25 W/ Channel (5Ω)
25 W/ Channel (5Ω)
25 W/ Channel (5Ω)
DVD Home Theater Sound System
SA-HT340GC
SA-HT340GCS
SA-HT340GS
Colour
(S).......................Silver Type
lSubwoofer:
lFM tuner section (FM)
Preset Memory:
Frequency Range:
Sensitivity:
S/N 26dB
Antenna Terminals:
lAM tuner section (AM/MW)
Frequency Range:
AM Sensitivity S/N 20dB at
999kHz:
lMic jack:
Sensitivity:
Terminal:
lDisc section
Discs played (8 cm or 12 cm):
(1) DVD [DVD-Video, DivX(*6,7)]
(2) DVD-RAM [DVD-VR, MP3(*2,7), JPEG(*4,7), MPEG4(*5,7),
DivX(*6,7)]
(3) DVD-R [DVD-Video, DVD-VR, MP3(*2,7), JPEG(*4,7),
MPEG4(*5,7), DivX(*6,7)]
(4) DVD-R DL [DVD-Video, DVD-VR]
© 2006 Panasonic AVC Networks Singapore Pte.
Ltd. All rights reserved. Unauthorized copying and
distribution is a violation of law.
ORDER NO.MD0605178C3
25 W/ Channel (5Ω)
FM 15 stations
AM/MW 15 stations
87.5-108.00MHz
(50kHz step)
1.8µV (IHF)
1.4µV
75Ω (unbalanced)
522-1629kHz (9kHz step)
520-1630kHz (10kHz step)
560µV/m
0.7mV (1.2kΩ)
Mono 6.3mm jack (1 system)
