This product can be set up using
any current web browser:
Internet Explorer 6 or Netscape
Navigator 7

Before You Begin

1. If you purchased this router to share your high-speed Internet connection with
other computers, you must have either an Ethernet-based Cable or DSL modem
with an established Internet account from an Internet Service Provider (ISP).
2. It's best to use the same computer that is connected to your modem for configuring
the DI-524 AirPlus G Wireless Router. The DI-524 acts as a DHCP server and will
assign all the necessary IP address information on your network. See Appendix
at the end of this Quick Installation Guide or the Manual on the CD-ROM for
setting each network adapter to automatically obtain an IP address.
Check Your Package Contents
If any of the above items are missing, please contact your reseller.
©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective

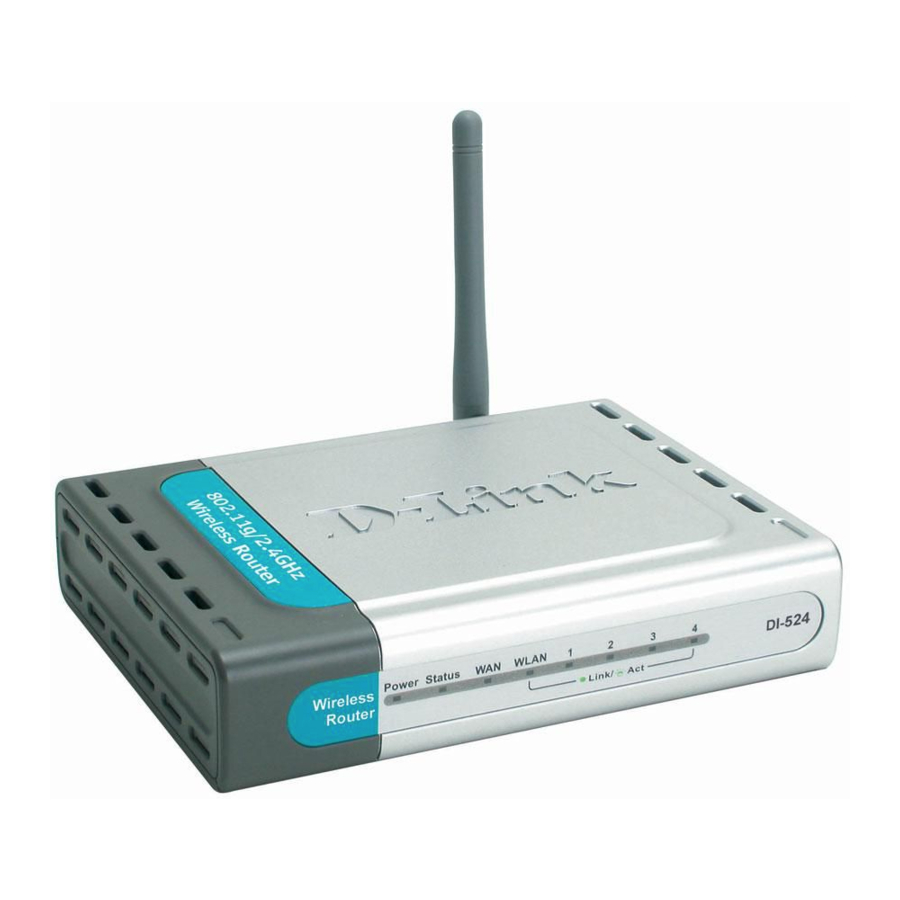

DI-524 AirPlus G 802.11g/2.4GHz Wireless
Router
CD-ROM (containing Manual and Warranty)
Ethernet (CAT5 UTP/Straight Through) Cable
7.5V 1.5A DC Power Adapter
holders. Software and specifications subject to change without notice.
1
DI-524
AirPlus G
802.11g/2.4GHz
Wireless Router
Using a power
supply with a different
voltage rating will
damage and void the
warranty of this product.
