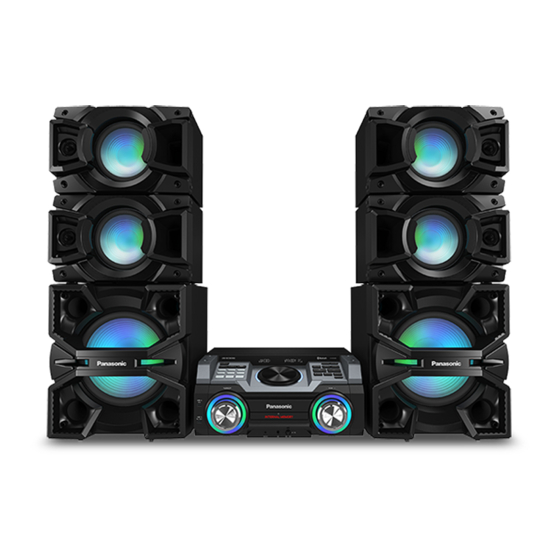

使用说明书 CD Stereo System CD 立体声组合音响 SC-MAX8000 Model No. SC-MAX6000 This illustration shows SC-MAX8000. 此插图为 SC-MAX8000。 Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. Please keep this manual for future reference. 感谢您购买本产品。...
Panasonic has no authority to and does not grant you • Set the unit up on an even surface away from direct that permission and explicitly disclaims any right, ability sunlight, high temperatures, high humidity, and or intention to obtain such permission on your behalf.
SC-MAX8000 Supplied accessories █ Attaching the speaker feet For stability and to prevent damage to the floor, Check and identify the supplied accessories. attach the speaker feet to the bottom of the 3 AC mains leads speakers. 1 AM loop antenna Preparation ...
SC-MAX6000 Setup 2 You can put the speakers in a vertical position as well as Put the speakers so that the tweeter is on the outside. on a shelf. Keep your speakers more than 10 mm from the main unit for ventilation.
Overview of controls Do the procedures with the remote control. You can also use the buttons on the main unit if they are the same. Standby/on switch [`], [1] Press to switch the unit from on to standby mode or vice versa.
Page 7
Top View Front View USB A Select the Karaoke effect DJ function direct buttons USB port ( Press [KARAOKE/DJ JUKEBOX] to switch on the USB status indicator Karaoke function. Play MP3 tracks. Press [KARAOKE/DJ JUKEBOX] or USB B [DJ EFFECT/SAMPLER] to switch on the DJ function. USB port ( Press [DJ1] to [DJ6] on the main unit to select the USB status indicator...
Connect the AC mains lead. Adhesive tape (not supplied) Insert the AC mains lead up Connect the speakers. , a point just before the SC-MAX8000 round hole. To household mains socket Do not use an AC mains lead from other equipment. Conserving power The system consumes a small amount of power even when it is in standby mode.
Using the main unit Preparing media Press and hold [ –PAIRING] until “PAIRING” is shown. Select “SC-MAX8000” or “SC-MAX6000” from the Disc Bluetooth menu of the device. ® Note: Press [CD x] (main unit: [x OPEN/CLOSE]) to You can pair up to 8 devices with this system. If a 9th device open the disc tray.
Android device version lower than 4.1 requires the MEMORY 2 GB internal memory (refer to “Recording” for installation of the “Panasonic MAX Juke” app (free of adding tracks to the internal memory). charge). Enter “Panasonic MAX Juke” in the search box of Basic playback Google Play™...
Page 11
█ Note on disc Play menu • This system can play CD-R/RW with CD-DA or MP3 format content. CD USB MEMORY • Before playback, finalise the disc on the device it was Press [PLAY MENU]. recorded on. • Some CD-R/RW cannot be played because of the Press [Y, U] to select the setting and then press condition of the recording.
Improving the sound quality Radio When “FM” is selected Preparation Press [PLAY MENU] to select “FM MODE”. Press [CD/RADIO/AUX] to select “FM” or “AM”. Press [Y, U] to select “MONO” and then press [OK]. Manual tuning To cancel, select “STEREO”. “MONO”...
█ High-speed recording Recording CD-DA disc recording speed: CD, CD-R: Three times (3x) the normal speed. This system can record up to 800 folders (maximum 999 CD-RW: Two times (2x) the normal speed. tracks in an album) or a total of 8000 tracks, depending on the available storage capacity of the internal memory Put in the disc you want to record.
Recording MP3 tracks Sound and illumination effects You can record MP3 tracks from: USB B • MP3 disc to or internal memory USB A USB B • or internal memory Sound effects USB B • to internal memory or vice versa Preset EQ Prepare the source you want to record.
[DJ2] FILTER Enhance or filter specific ranges of the When “WAITING REQUEST” is shown, you can proceed sound. to the next step without using the “Panasonic MAX Juke” app. [DJ3] SOUND CHOPPER Cut off the sound periodically. █...
Connect a microphone (not supplied) to the When “WAITING REQUEST” is shown, you can proceed microphone jack. to the next step without using the “Panasonic MAX Juke” Plug type: Ø 6.3 mm monaural app. (Z“DJ functions”) Turn [MIC VOL, MIN/MAX] on the main unit to adjust the volume of the microphone.
To start the timer Clock and timers Prepare the source. Play timer Prepare the source you want to listen to (disc, USB, internal Setting the clock memory or radio) and set the volume. This is a 24-hour clock. USB B Record timer Connect the USB device to Press [SETUP] to select “CLOCK”.
Connecting a portable audio equipment External equipment You can play music from a portable audio equipment. Preparation Preparation • Disconnect the AC mains lead. • Switch off the equaliser (if any) of the portable audio • Switch off all equipment and read the appropriate equipment to prevent sound distortion.
Others Maintenance To clean this system, wipe with a soft, dry cloth. • Never use alcohol, paint thinner or benzine to clean this Auto off system. • Before using chemically treated cloth, read the This system automatically switches off when you do not instructions that came with the cloth carefully.
Press [1] again to switch on the unit. If the problem For some built-in Bluetooth ® devices, you have to set the audio output to “SC-MAX8000” or “SC-MAX6000” persists, consult your dealer. manually. Read the operating instructions of the device for The display panel lights up and changes continuously in details.
Remote control code “F61” • Examine and correct the speaker cords connection. When other Panasonic equipment responds to the • Disconnect the USB device. Switch off the system and then remote control of this system, change the remote control switch on again.
█ █ Amplifier section Tuner section RMS output power stereo mode Frequency modulation (FM) SC-MAX8000 Preset memory 30 stations 500 W per channel (3 Ω), 1 kHz, 30% THD High Ch Frequency range 87.50 MHz to 108.00 MHz (50 kHz step) 500 W per channel (3 Ω), 1 kHz, 30% THD...
Page 23
█ Terminal section USB port USB standard USB 2.0 full speed Media file format support MP3 (*.mp3) USB device file system FAT12, FAT16, FAT32 USB recording Bit rate 128 kbps USB recording speed 1x, 3x (CD only) Recording file format MP3 (*.mp3) AUX IN 1, 2, 3 Audio input...
控制概要 使用遥控器来操作, 如果按钮相同, 您也可以使用主机上的按钮来操作。 A 待机 / 开机开关 [`], [1] 按此开关可将本机从开机切换到待机状态或相 反。 在待机状态下, 本机仍将消耗少量电力。 B 查看内容信息 C 数字键 欲选择一个 2 位数的数字 例 : 16: [ 10]=[1]=[6] D 自动预设广播电台 E 选择音源 在主机上 : 欲开始 Bluetooth 配对, 按住 [ –PAIRING]。 ® F 基本播放操控 G 选择音效...
Page 29
顶部 前部 T 选择卡拉 OK 效果 USB A DJ 功能直接按钮 USB 端口 ( ) 按 [KARAOKE/DJ JUKEBOX] 以开启卡拉 OK USB 状态指示灯 功能。 播放 MP3 曲目。 按 [KARAOKE/DJ JUKEBOX] 或 USB B [DJ EFFECT/SAMPLER] 以开启 DJ 功能。 USB 端口 ( ) 按主机上的...
Page 30
连接 完成所有连接后再连接交流电源线。 SC-MAX6000 连接 AM 环状天线。 将扬声器电线连接至相同颜色的端子。 将天线竖立于其基座上直到其卡入到位。 TO SPEAKERS 连接 FM 室内天线。 将天线粘贴于接收信号最好的位置。 连接交流电源线。 胶布 (非附件) 将 AC 电源线插入 连接扬声器。 直到 , 即圆孔之 SC-MAX8000 前的位置。 至家用交流电源插座 切勿使用其它设备的交流电源线。 省电 本系统在待机状态下仍消耗少量电力。 如果不使 用本系统, 请断开电源。 断开本系统后, 某些设定将消失。 您需重新设 定。...
