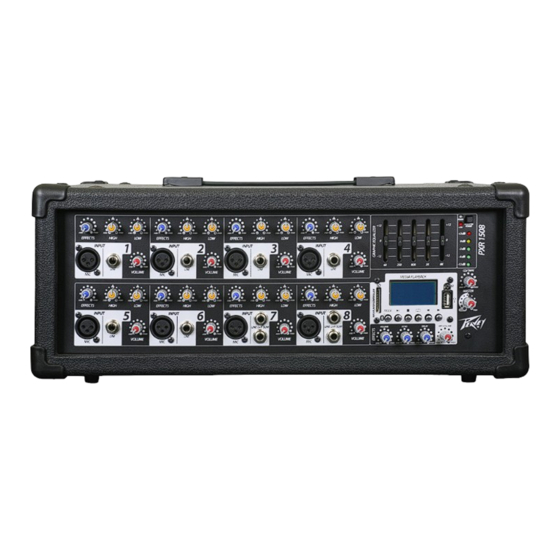

- Page 1 1506 / 1508 ™ 150-WATT MIXER AMPLIFIER Operating Manual www.peavey.com...
- Page 2 Designed with the latest Peavey technology, the PXR 1506 / 1508 powered mixers are easy to use and transport. Constructed with a rugged metal structure, wood cabinet, vinyl surface and protective corners, the PXR 1506 and 1508 are the ideal powered mixers.
-
Page 3: Volume Control
Front Panel Input Section 3-PIN LOW-IMPEDANCE MICROPHONE INPUT This input is for typical balanced, low-impedance microphones. This has an input impedance of 1k ohms. The connector is wired as: Pin 1=shield; Pin 2=positive (hot); Pin 3=negative (cold). 1/4" LINE/HIGH-IMPEDANCE INPUT This input may be used as either a high-impedance microphone input or for line-level devices such as a cassette player, CD player, video projector or laptop. -
Page 4: Phantom Power
Consult their manuals.) The line input jacks are not connected to the phantom supply and are safe for all inputs (balanced or unbalanced). An unbalanced to balanced impedance converter such as the Peavey 5116 or a Peavey... - Page 5 Features MASTER EQ These are used to adjust the overall EQ of the master mix. Since these cover five frequency bands (+/-15 dB), they will add or diminish the level of the sound at the indicated frequencies, spread across approximately one octave of frequency range. Most situations should require using no more than three controls simultaneously.
-
Page 6: Bluetooth ® Player
Remote Control For ease of use and convenience, a remote control comes with the PXR 1506/1508 mixer (battery included). To replace the battery, push in left tab and pull out. Use only a CR2025 model battery as a replacement. - Page 7 WARNING Do not ingest the battery. Chemical Burn Hazard. (The remote control supplied with) This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children.
- Page 8 Rear Panel 100-120V 220-240V Features VOLTAGE SELECT SWITCH This switch must be set properly for the local AC line voltage. Select between 115 (110-120 VAC) or 230 (220-240 VAC) using this switch. POWER SWITCH This switches the unit on or off. When the unit is powered ON, the front-panel blue LED will illuminate. WARNING THE ON/OFF SWITCH IN THIS APPARATUS DOES NOT BREAK BOTH SIDES OF THE MAINS.
-
Page 9: Specifications
140 watts Low-Z Mic: 1k ohms High-Z Line: 10k ohms Dimensions (HxWxD): Tape Input: 10k ohms PXR 1506: 8.25" x 17.5" x 12.25" Input Channel Equalization: PXR 1508: 8.25" x 20.5" x 12.25" Bass Control: 300 Hz Weight: Treble Control: 2000 Hz PXR 1506: 20.6 lbs. - Page 10 NOTES...
- Page 11 NOTES...
- Page 12 Warranty registration and information for U.S. customers available online at www.peavey.com/warranty or use the QR tag below Features and speci cations subject to change without notice. Peavey Electronics Corporation 5022 Hartley Peavey Drive Meridian, MS 39305 (601) 483-5365 FAX (601) 486-1278 Logo referenced in Directive 2002/96/EC Annex IV (OJ(L)37/38,13.02.03 and defined in EN 50419: 2005...
