Page 1: User Manual

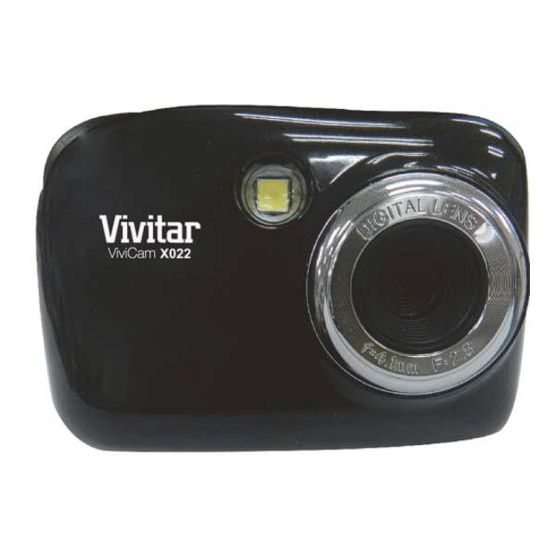

ViviCam X022v2 Digital Camera User Manual © 2009-2014 Sakar International, Inc. All rights reserved. Windows and the Windows logo are registered trademarks of Microsoft Corporation. All other trademarks are the property of their respective companies. -
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ..........................2 What’s Included ..........................2 Parts of the Camera ........................3 Initial Camera Setup ........................4 Main Camera Modes ........................8 Camera Technical Specifications ....................9 Computer System Requirements ....................10 Powering the Camera On/Off ...................... 11 Changing Camera Mode ...................... -
Page 3: Introduction
This camera is a plug and play device. You can download the pictures and videos captured by your camera without the software by directly accessing the camera’s memory card from your computer. It is recommended however that you install the Vivitar Experience™ Image Manager Software to enjoy the full Vivitar Experience™. -
Page 4: Parts Of The Camera
Parts of the Camera 1. Power Button 8. Down / Playback Button 2. Shutter Button 9. Up / Flash Button 3. LCD Screen 10. USB Port 4. LED 11. Wrist Strap Connector 5. W / Zoom Out Button 12. Micro SD Memory Card Slot 6. -
Page 5: Initial Camera Setup
Initial Camera Setup INSTALLING THE MEMORY INSTALLING THE BATTERIES CARD Slide off the front cover and insert 2x AAA (1.5V) batteries. Alkaline batteries recommended Micro SD Memory card (up to 32GB) (not included). needed for normal use. TURNING ON THE CAMERA USING THE CAMERA... - Page 6 POWERING THE CAMERA ON BATTERIES Slide the front cover of your camera towards the right to reveal and open the battery compartment. Make sure to properly insert the batteries into your digital camera, according to the polarity shown inside the battery compartment. Use 2 x AAA (1.5V) batteries.
- Page 7 Do not mix alkaline and non-alkaline batteries. Some features will not work, such as Flash, if the battery power level is low. When the battery power is low the battery icon turns red and the camera will automatically turn off a few seconds later.
- Page 8 Note: After the camera is powered on, an SD icon will appear on the LCD display. If you do not see the SD icon on the display, please check if the card was inserted properly. Make sure there is room on the micro SD Card for additional pictures. If the micro SD Card is full, additional pictures will not be added to the card.
-
Page 9: Main Camera Modes
Main Camera Modes Your camera has different modes for the various camera functions. You can switch modes by pressing the MENU button on your camera after the camera has been powered ON. Photo Capture Mode Use this mode to capture pictures with your camera. This is the default mode when the camera is powered ON. -
Page 10: Camera Technical Specifications
Camera Technical Specifications Image Sensor CMOS 10M (3648x2736), 8M (3264x2448),7MHD (3648x2048), 5M Image Resolution (2592x1944), 3M (2048x1536), 2MHD (1920x1080), VGA (640X480) Video Resolution VGA (640x480), QVGA (320x240) File Format JPEG (Photo) /AVI (Video) Internal Memory 1 Test Photo Use Only External Memory Micro SD Card (up to 32GB) LCD Display... -
Page 11: Computer System Requirements
Computer System Requirements To be able to download photos and videos to your computer using the Vivitar Experience™ Image Manager Software, you will need the following minimum configuration: WINDOWS OS MICROSOFT® Windows XP with Service Pack 3, Windows Vista with Service Pack 1 or MICROSOFT®... -
Page 12: Powering The Camera On/Off
Powering the Camera On/Off Make sure the batteries have been inserted properly into your digital camera. If your camera comes with a rechargeable lithium battery, make sure it is fully charged before the first use. Make sure a Micro SD card has been inserted into your camera. SD card up to 32GB required. -
Page 13: Changing Camera Mode
Changing Camera Mode Your camera has three main modes: Photo Capture Mode - Use this mode to capture photos with your camera. Video Capture Mode - Use this mode to capture videos with your camera. Playback Mode (for photos and videos) - Use this mode to view the photos and videos you have already taken with your camera. -
Page 14: Photo Capture Mode
Please download the test images to your computer using the ‘Vivitar Experience Image Manager’ software as described below in the section “Transfer photos and videos to your computer” as soon as... -
Page 15: Flash Options
FLASH OPTIONS Your camera has a built in flash function which enables you to take photos in poor lighting conditions. There are several Flash options available on your camera. The options appear on the Photo Capture Mode LCD screen in sequence. To change the Flash mode, press the UP /Flash button until you arrive at your desired settings. -
Page 16: Digital Zoom Function
DIGITAL ZOOM FUNCTION You can magnify your subject using the digital zoom. Use the T (Zoom In) and W (Zoom Out) buttons to adjust the zoom. Press the T button to zoom in on your subject. Press the W button to zoom back out. SELF TIMER The Self Timer menu allows you to set a delay between the time that the camera’s Shutter button is pressed and the actual capture of the picture. -
Page 17: Photo Capture Mode Menus
PHOTO CAPTURE MODE MENUS To enter the Photo Capture Mode Menus: Press the MENU button. Press the Up or Down button to select a specific menu. Press the Shutter button to enter the selected menu’s options. Press the Up or Down button to select and highlight the desired setting option. Press the Shutter button to confirm the selected setting and return to the Capture Mode. - Page 18 FREQUENCY MENU The options in the Frequency menu represent the frequency of the electrical current in fluorescent lighting sources in your locale. If your camera is set to a frequency that does not match your country’s electric current, you may see waves on the images taken by your camera. 50Hz –...
- Page 19 LANGUAGE MENU You can select your camera’s language setting by selecting the desired language from the Language menu. Press the MENU button. Press the Up/Down button and select LANGUAGE. Press the Shutter button. Press the Up/Down button to select from the following options: English, Spanish, Portuguese, French, German, Italian, Russian, Polish, Greek Press the Shutter button to confirm.
- Page 20 The Date and Time settings appear. - Use the T and W buttons to set the date and time as desired. - Use the Up and Down buttons to scroll between the date and time options. Press the MENU button to save your settings and exit the Date menu. DEFAULT MENU Use this menu to reset your camera settings to the original Factory Default Settings.
-
Page 21: Video Capture Mode
Video Capture Mode The Video Capture Mode allows you to capture videos with your digital camera. When the camera is first powered ON, the camera will be in Photo Capture Mode. TAKING VIDEOS To set your camera to Video Mode: Power on your camera. -
Page 22: Changing Image Resolution
CHANGING IMAGE RESOLUTION Select the Video (AVI) Mode option (see steps above for instructions). Press the MENU button. Press the Up/Down button to select the RESOLUTION option. Press the Shutter button. Press the Up/Down button to select one of the following resolutions: VGA / QVGA. -
Page 23: Playback Mode
Playback Mode The Playback Mode allows you to review and delete photos and videos that you’ve already taken with your camera. When you first turn on the camera, the camera will be in Photo Capture mode by default. Press the PLAYBACK (Down) button to open the Playback Mode. -
Page 24: Thumbnail View
VIEWING YOUR VIDEOS Press the PLAYBACK button to enter Playback Mode. Select an AVI file. Press the MENU button. Press the Up/Down button to select the PLAY option. Press the Shutter button to start playing. Press the Shutter button again to stop playing. THUMBNAIL VIEW Easily navigate and select the image you wish to view by using the Thumbnail View. -
Page 25: Playback Mode Menus
PLAYBACK MODE MENUS DELETING IMAGES You may delete images directly from the memory card on your camera. Images can only be deleted while in the Playback Mode. Press the PLAYBACK button to enter Playback Mode. Press the Up/Down button to select the image you would like to delete. Press the MENU button. - Page 26 Press the Up/Down button to select the FORMAT option. Press the Shutter button to confirm your selection and view the options. The following appears on the LCD: ‘Are you sure you want to erase your pictures in the SD card?’ Press the Up/Down button to select either “Yes”...
-
Page 27: Installing The Software
Installing the Software You must be connected to the Internet to install and run the Vivitar Experience™ Image Manager software. Insert the installation CD into your CD-ROM drive. The installation screen should automatically open. WINDOWS: The Vivitar Experience™ Image Manager Installer window appears. If the window does not appear, open the application’s CD/DVD drive and click on “Setup.exe”... -
Page 28: Connecting The Camera To The Computer
12) MACINTOSH: Click the “Quit” button when the installation is complete. Click the “Launch Vivitar Experience™ Image Manager” to open the application. 13) If you close the application you can run the Vivitar Experience™ Image Manager from the Programs (WINDOWS) or Applications (MACINTOSH) menu on your computer. -
Page 29: Getting Photos And Videos From Your Camera To Your Computer
Getting Photos and Videos from Your Camera to Your Computer An SD card needs to be inserted. Do not disconnect the cable during transfer. Doing so will cancel the transfer of any files on their way to your computer. Select the “Get Images” button from the Main menu. The “Get media from device”... -
Page 30: Getting Started
Use automatic “Geotagging” with built in Google Maps For more details on how to use the Vivitar Experience™ Image Manager open the “Help” from the menu option or click the “Take a Tour” button on the application’s Home screen. - Page 31 TRANSFERRING PHOTOS AND VIDEOS: MACINTOSH OS Use the supplied USB cable to connect your camera to your computer. ‘MSDC’ appears on the LCD. The camera’s device icon appears on the desktop. Click on the device icon and open the DCIM folder and the folder inside to view the media files.
-
Page 32: Camera Maintenance
Camera Maintenance The digital camera is a delicate device. Please handle your camera with care to avoid damaging it. Do not expose your camera to heat sources. Do not use you camera in wet or moist conditions. Sakar Warranty Card This warranty covers for the original consumer purchaser only and is not transferable. -
Page 33: Technical Support
SD memory card. We recommend always downloading your photos to your computer as soon as possible to prevent unintentional data loss. Q: I deleted images using the Vivitar Experience Image Manager. The images were also deleted from my computer. How do I recover images that I accidently deleted? All images deleted using the Vivitar Experience Image Manager are sent to your computer’s...
