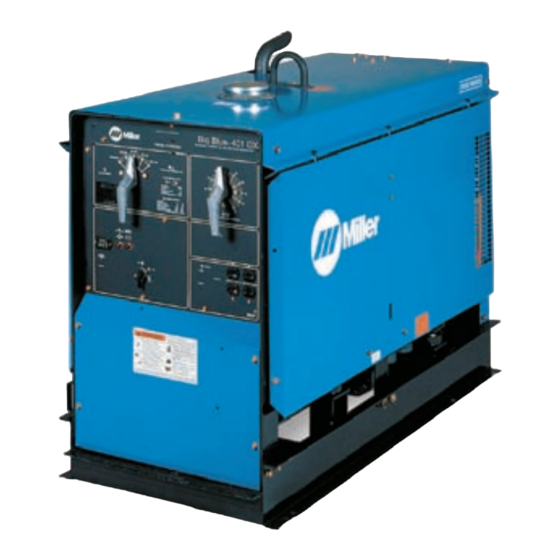

Miller Electric Big Blue 401DX Specifications

Miller electric engine driven welding generator specifications.

Download Manual (4 pages, 0.34 Mb) Add to your account Write a comment Upload Manual
1 2 3 4

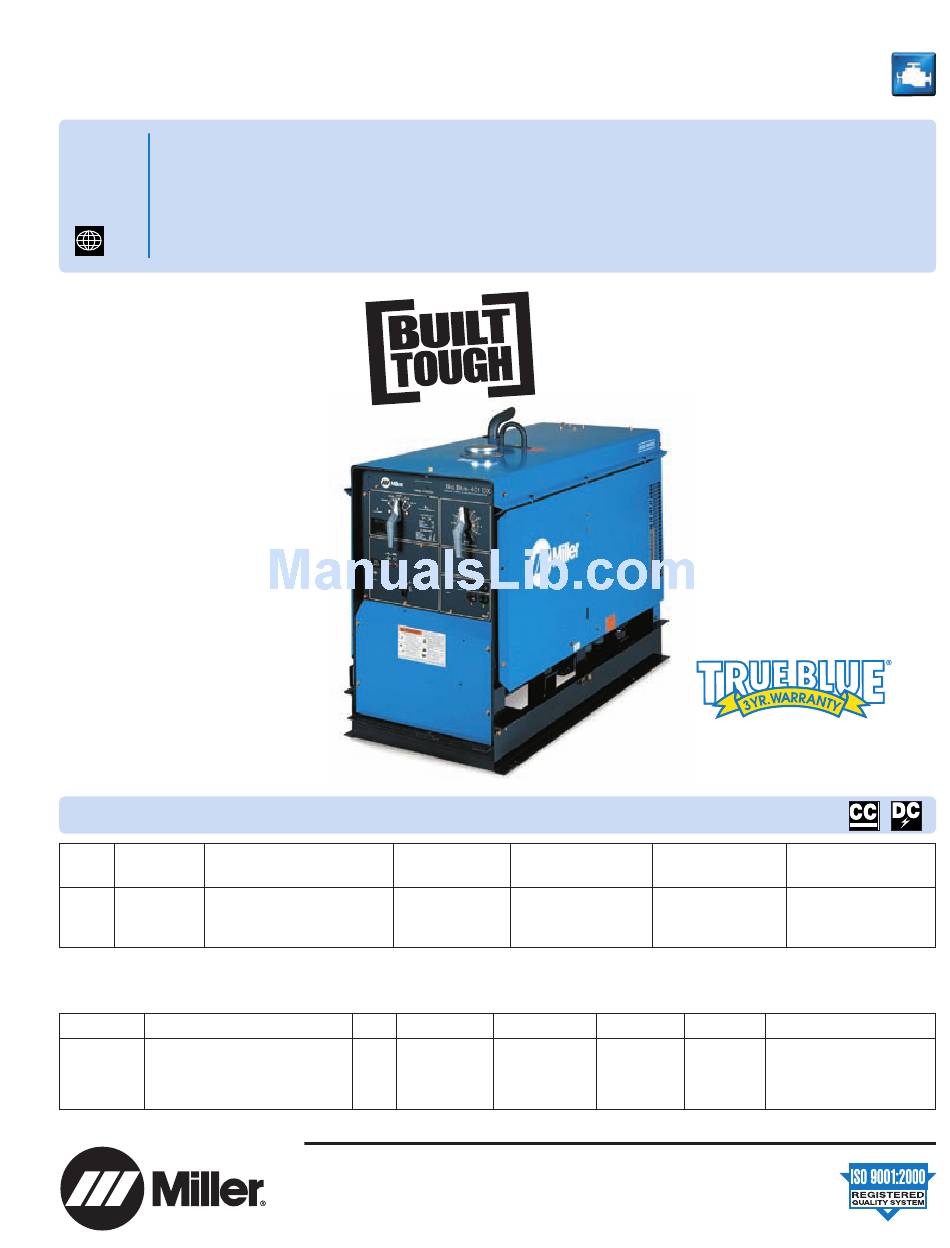

Big Blue
Industrial Applications
Quick
Structural Work
Mining
Specs
Maintenance and Repair
Piping
The Power of Blue
The F3L2011, 3-cylinder Deutz diesel
engine provides 30 HP at 1850 RPM.
Single side service. Direct fuel injection
for fuel economy and easy starts. Air/oil
double-cooled diesel for maximum
reliability in all environments.
Five welding ranges provide
overlapping ranges and fine current
control in each range for easy set-up
and control of welding amperage.
3-phase, 4-pole revolving field
technology provides efficient welding
current with less horsepower than DC
generator technology — less horsepower
per welding amp saves fuel — as much
as 20 to 30 percent. Easily connects in
parallel with no special kits for heavy
gouging or stud welding applications.
Specifications
(Subject to change without notice.)
Weld
Weld Output
Weld Output Rated at
Mode
Range
40˚C (104˚F)
40 – 400 A
CC/DC
400 A, 30 VDC, 40% Duty Cycle
300 A, 32 VDC, 100% Duty Cycle*
*NEMA output rating. **Height is 1029 mm (40-1/2 in) with muffler. ***Additional 136.5 kg (80.5 lb) with tank is full
Engine Specifications
(Subject to change without notice.)
Engine Brand
Features
Deutz
Tier 0, direct-injected, air/oil-cooled
F3L2011
engine. Right-side service access
with service intervals of 1000 hours
for oil and filters.
401DX
®
Processes
DC Stick (DC SMAW)
Air Carbon Arc (CAC-A)
Cutting and Gouging
thru 6 mm (1/4 in)
DC TIG (GTAW)
Flux Cored (FCAW)
.
®
Max. Open-Circuit
Voltage
95 (90)
HP
Type
30.3
Three-cylinder,
industrial,
liquid-cooled
diesel
Miller Electric Mfg. Co.
An Illinois Tool Works Company
1635 West Spencer Street
Appleton, WI 54914 USA
Rated Output at 40˚C (104˚F)
400 A at 30 VDC, 40% Duty Cycle
300 A at 32 VDC, 100% Duty Cycle
DC Amperage Range
40 – 400 A
Generator Power
3 kVA, 120/240 VAC, 26/13 A, 50/60 Hz while welding
Weight
Net: 670 kg (1475 lb)
Note: Parts and labor warranted for three years.
Engine warranted by Deutz for three years.
Generator Power Output
Rated at 40˚C (104˚F)
Dimensions
3 kVA, 120/240 VAC,
H: 927 mm (36 in)**
26/13 A, 50/60 Hz while
W: 625 mm (24-5/8 in)
welding
D: 1422 mm (56 in)
Engine Speeds
Fuel Capacity
Run: 1850 RPM
43 L
(11.3 gal)
International Headquarters
Phone: 920-735-4505
USA FAX: 920-735-4134
Canadian FAX: 920-735-4169
International FAX: 920-735-4125
Issued May 2008 • Index No. EX/5.2
Engine Driven
Welding Generator
Ship: 685 kg (1510 lb)
Rugged controls with no printed
circuit boards.
Remote control facility allows
precise adjustment of amperage
without walking back to the machine.
3 kW/kVA auxiliary power while
welding is available from one
120 VAC duplex receptacle and one
240 VAC duplex receptacle that are
circuit breaker protected.
Compact and lightweight, this low-
speed diesel measures in at 625 x
927 x 1422 mm (24-5/8 x 36-1/2 x
56 in).
Weight (without fuel)***
Net: 670 kg (1475 lb)
Ship: 685 kg (1510 lb)
Oil Capacity
Automatic Engine Shutdown
5.5 L
Low Oil Pressure
(6 qt)
High Oil Temperature
Web Site
www.MillerWelds.com
