METROLOGIC INSTRUMENTS, INC.
TECH 8 Laser Bar Code
Projection Scanner
Installation and User's Guide
MLPN 2168
Printed in USA
September 1998

Advertisement

Table of Contents
loading

Summary of Contents for Metrologic TECH 8

  • Page 1 METROLOGIC INSTRUMENTS, INC. ™ TECH 8 Laser Bar Code Projection Scanner Installation and User’s Guide MLPN 2168 Printed in USA September 1998...
  • Page 2 Copyright ® © 1998 by Metrologic Instruments, Inc. All rights reserved. No part of this work may be reproduced, transmitted, or stored in any form or by any means without prior written consent, except by reviewer, who may quote brief passages in a review, or provided for in the Copyright Act of 1976.
  • Page 3: Table Of Contents

    Attaching the Scanner to the Stand and Work Surface .......
  • Page 4: Unpacking List

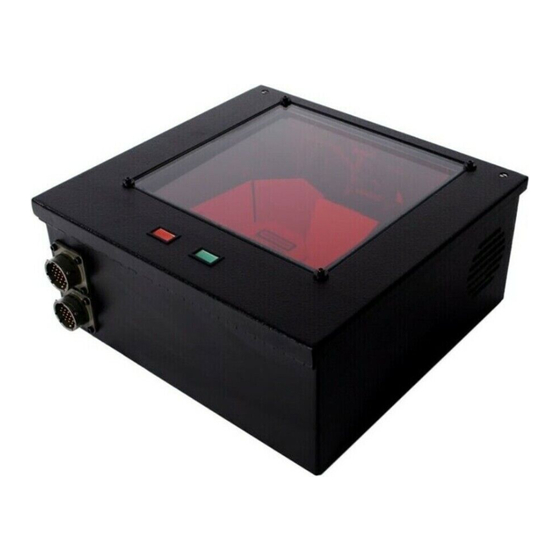

    Metrologic’s Customer Service Department at 1-800-ID-METRO or 1-800-436-3876. Introduction Metrologic’s TECH 8 laser bar code projection scanner is encased in an NEMA-12 steel case. The scanner’s construction enables the scanner to operate in harsh surroundings, especially industrial environments. Water-resistant, shock-resistant, and rugged, the TECH 8 scanner is also fast, aggressive and reliable.
  • Page 5: Labels

    Labels One label is found inside the window of the scanner noting that this device is a CDRH Class IIa laser product and EN 60825-1 LASERKLASSE 1. Also, on the scanner is a label on the back of the unit. This label contains information such as the model number, the date of manufacture and the serial number.
  • Page 6: Maintenance

    Configuration of the Scanner to the Host System The scanner has been configured at the time of manufacture based on information supplied at the time of order. If ScanSet™ is being used, refer to the ScanSet documentation for information on...
  • Page 7: Scanner Connections

    1. Turn off the host system. 2. Find the 19-pin female end of the scanner link cable and the widest key located above pins L and A. Align this key with the corresponding key on the scanner box’s Mil spec connector.
  • Page 8: Attaching The Scanner To The Stand And Work Surface

    2. Lay the stand on the scanner with the angled bracket pointing up and toward yourself. 3. Align the four clearance holes to the four holes in the scanner’s case. Fasten the scanner to the stand by inserting the four 6-32 x ½" screws into the four holes in the scanner’s case.
  • Page 9: Scanning Bar Codes

    Scanning Bar Codes The depth of field for the scanner is 203mm to 457mm (8" to 18") from the scanner window. The symbol must be passed through the scan area in order for the scanner to recognize the bar code.
  • Page 10: Specifications

    Appendix A ™ TECH 8 Laser Bar Code Scanner Specifications Application Light Source Laser Class Certifications Dimensions Weight Orientation Mounting Top Cover Cable Length Power Input Voltage Operating Current Standby Current 6061/6113-220V (AC in) 6062/6114-120V (AC in) 6115-240V Transformers Patents Pending Specifications subject to change without notice.
  • Page 11 Depth of Scan Field Scan Speed Scan Pattern Indicators Beeper Operation Maintenance Required Decode Capability System Interfaces Optional Interfaces Print Contrast Roll, Pitch, Yaw Storage Temperature Operating Temperature Humidity Light Levels Ventilation Shock Contaminants Patents Pending Specifications subject to change without notice. Operational 203mm to 457mm (8"...
  • Page 12: Version A1 Pin Assignments For The Mil Spec Connector

    Version A1 Pin Assignments for the Mil spec Connector Each TECH 8 scanner has a 19-pin male Mil spec connector that is found on the side of the unit. To connect the scanner to the host device, use a communication cable with a female Mil spec connector.
  • Page 13: Version A15 Pin Assignments For The Mil Spec Connector

    Version A15 Pin Assignments for the Mil spec Connector Each TECH 8 scanner has a 19-pin male Mil spec connector that is found on the side of the unit. To connect the scanner to the host device, use a communication cable with a female Mil spec connector.
  • Page 14: Warranty And Disclaimer

    PROPERTY OR PERSON OR EFFECT ON BUSINESS OR PROFIT, AND IN NO EVENT SHALL ANY LIABILITY OF METROLOGIC EXCEED THE ACTUAL AMOUNT PAID TO METROLOGIC FOR THE PRODUCT. Metrologic Instruments, Inc. 90 Coles Road Blackwood, NJ 08012 Metrologic Instruments GmbH Dornierstrasse 2 82178 Puchheim b.
  • Page 15 Disclaimer Metrologic Instruments, Inc. and the author or authors make no claims or warranties with respect to the contents or accuracy of this publication, or the product it describes, including any warranties of fitness or merchantability for a particular purpose. Any stated or expressed warranties are in lieu of all obligations or liability for any damages, whether special, indirect, or consequential, arising out of or in connection with the use of this publication or the product it describes.
  • Page 16: Notices

    Under no circumstances should the customer attempt to service the laser scanner. Never attempt to look at the laser beam, even if the scanner appears to be nonfunctional. Never open the scanner in an attempt to look into the device. Doing so could result in hazardous laser light exposure. The use of optical instruments with the laser equipment will increase eye hazard.
  • Page 17 Il cliente non deve assolutamente tentare di riparare egli stesso lo scanner laser. Non guardate mai nel raggio laser, anche se credete che lo scanner non sia attivo. Non aprite mai lo scanner per guardare dentro l’apparecchio.
  • Page 18: Patents

    Appendix E Patents “Patent Information This METROLOGIC product may be covered by one or more of the following U.S. Patents: U.S. Patent No. 4,360,798; 4,369,361; 4,387,297; 4,460,120; 4,496,831; 4,593,186; 4,607,156; 4,673,805; 4,736,095; 4,758,717; 4,816,660; 4,845,350; 4,896,026; 4,923,281; 4,933,538; 4,992,717; 5,015,833; 5,017,765; 5,059,779; 5,117,098; 5,124,539; 5,130,520; 5,132,525; 5,140,144;...
  • Page 19: Index

    Index AC outlet Application Application and protocols Asia ASIC Attaching stand 5 A1 pin assignments A15 pin assignments B units 2 Bar codes Base Beeper operation Bracket 5 Case 1, 5, 7 CDRH class IIa 2, 7 CDRH/IEC CE Mark Class 1 7 Clean 3, 8 Communication cable...
  • Page 20 Print contrast Programming guide Protocols Roll, pitch, yaw 8 RS-232 2, 8, 9 Scan field 6, 8 Scanning bar codes Scan pattern Scanner connections ScanSet ScanSelect manual Scan speed Service 1, 11 Shipping carton 1 Socket-outlet South America ii Specifications...
