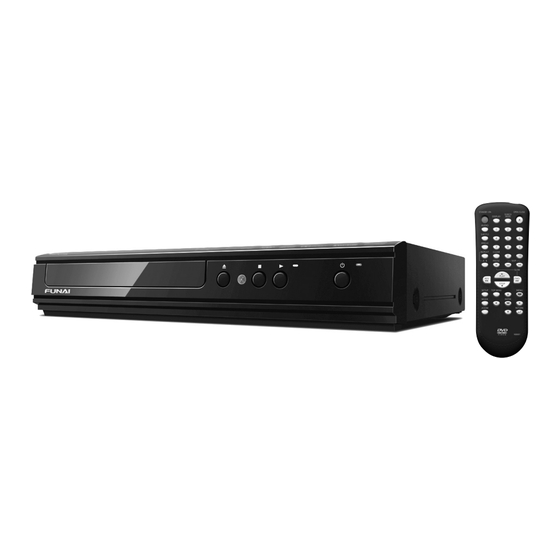

FUNAI DP170FX4 Setup Manual

SETUP MANUAL
See the Online Owner's Manual for details:
www.funaiamerica.com
Step 1 Position your camera to read the QR code below and let it scan
or visit by web www.funaiamerica.com
(You need a QR-code app and a smartphone or tablet
equipped with a camera.)
Step 2 Select Download.
Step 3 Type in the Model # "DP170FX4", and click "Search".
Step 4 Select the Manual, and click on "Download".
FUNAI is a registered trademark of Funai Electric Co., Ltd.
and may not be used in any way without the express written
consent of Funai.
© 2013 Funai Electric Co., Ltd.
Printed in China
E6PY0UH
2VMN00044 ★★★★★
* 2 V M N 0 0 0 4 4 *

REMOTE CONTROL

E CONTROL
1 17
2
18
3
4
19
5
6
7
8 20
9
10
11
11
12
21
13
22
14
23
15
16 24
INSERT BATTERIES
Install 2 AA (1.5V) batteries
1 2 3
1 CONNECTIONS NNECTIONS

Connection to the TV

HDMI Out
HDMI cable (not supplied)
or
Component Video Out (White) COMPONENT VIDEO IN
Audio cable (supplied) Y PB/CB
(Red)
(Green)
(Blue) ) )
Component video cable Component video cable Component video cab Component video cable Component video cable
(not supplied) (not supplied) (not supplied) ( ( (not supplied) (not supp not su p p ppli plied) plied ) )
or
Video & Audio Out
(White)
Audio cable (supplied)
(Red)
Video cable (supplied)
ENGLISH ESPANÕL
1. To turn the unit on or to turn the unit Para encender la unidad o para dejarla
into the standby mode. en el modo de espera.
(To completely turn off the unit, you (Para apagar completamente la
must unplug the AC power cord.) unidad, debe desconectar el cable de
alimentacion de CA.)
2. To display the current disc information. Para mostrar la información del disco actual.
3. To select audio language on a disc. Para seleccionar lenguaje de audio en un
(DVD) disco. (DVD)
4. To select subtitle language on a disc. Para seleccionar el idioma de subtítulos
(DVD) de un disco. (DVD)
5. To select camera angles on a disc. Para seleccionar los ángulos de la
(DVD) cámara en un disco. (DVD)
6. To play back repeatedly. Para reproducir repetidamente.
7. To clear the A-point for A-B repeat. Para borrar el punto para la repetición
(DVD / CD) A-B. (DVD / CD)
To clear the incorrect number once Para borrar el número incorrecto
entered on search mode. ingresado en el modo de búsqueda.
8. To repeat between your chosen point Para repetir entre su punto A y B
of A and B. (DVD / CD) seleccionado. (DVD / CD)
9. To pause disc playback. Para hacer una pausa en la reproducción.
To advance playback one frame at a Para avanzar la reproducción un cuadro
time. (DVD) cada vez. (DVD)
10. To start playback or resume playback. Para iniciar o reanudar la reproducción.
11. To search forward / backward through Para buscar en avance/retroceso por
a disc. (×2, ×4, ×8, ×20) (DVD / CD) un disco. (×2, ×4, ×8, ×20) (DVD / CD)
To begin slow forward playback in the Para comenzar la reproducción en
pause mode. (DVD) cámara lenta en el modo de pausa. (DVD)
12. To stop playback. Para parar la reproducción.
13. To call up the title menu on a disc. Para visualizar el menú de títulos de un
(DVD) disco. (DVD)
14. To call up the setup menu. Para recuperar el menú de configuración.
15. To play back randomly. (CD) Para reproducir al azar. (CD)
16. To magnify part of a picture. Para agrandar la parte de una imagen.
(×1.5, ×2, ×2.5) (DVD / JPEG) (×1.5, ×2, ×2.5) (DVD / JPEG)
2 INITIAL SETUP TIAL SETUP
AV/SOURCE
PR/CR
TV Aspect 16:9 Wide
SYSTEM SYSTEM
Resolution Auto
LANGUAGE
fun-Link(HDMI CEC) Off LANGUAGE
Progressive Off
(Red) AUDIO
AUDIO
VIDEO
VIDEO
OTHER OTHER
ENTER
(Yellow)
OSD Auto(English)
Audio English
Subtitle Français
Menu Español
SETUP
ENGLISH
17. To open or close the disc tray. Para abrir o cerrar la bandeja del disco.
To turn on the unit. Para encender la unidad.
18. To search chapter, title, tracks, files or Para buscar un capítulo, título, pistas,
time. archivos o tiempo.
19. To enter values in the input field. Para especificar valores en el campo de
To select chapter, title, track and file entrada. Para seleccionar un capítulo,
directly. título, pista y archivo directamente.
20. To skip chapters, titles, tracks and files. Para omitir capítulos, títulos, pistas y
While thumbnail is displayed, press to archivos.
switch between pages. (JPEG) Cuando se visualice la miniatura, presione
el interruptor entre páginas. (JPEG)
21. To move the cursor and determine its Para mover el cursor y determinar la
position. posición.
Press s / B to switch between pages Presione s / B para cambiar entre
when a file list is displayed. (CD / JPEG) páginas cuando se visualiza la lista de
Press s / B to rotate the picture
archivos. (CD / JPEG)
Presione s / B para girar la imagen en
during playback JPEG files. (JPEG)
la reproducción de archivos JPEG. (JPEG)
22. To call up the menu on a disc. (DVD) Para llamar el menú en un disco. (DVD)
To display the thumbnail while a disc Para visualizar la miniatura cuando
with JPEG files is inserted and a file is insertó un disco con archivos JPEG y
highlighted. (JPEG) algún archivo está resaltado. (JPEG)
23. To select items or settings. Para seleccionar opciones o valores de
configuración.
24. To call up the menu when playing back Para volver al menú o pantalla
a disc. (DVD) anteriormente visualizado. (DVD)
To return to the file list while Para volver a la lista de archivos
thumbnail is displayed. (JPEG) mientras se visualiza la miniatura. (JPEG)
If you have any questions or issues with our product, please refer to the
"TROUBLESHOOTING" section of this "SETUP MANUAL", or visit our website for
the Online Owner's Manual at www.funaiamerica.com.
If additional support is required please contact our Customer Service line at
1-877-393-8624.
See the Online Owner's Manual for details:

TROUBLESHOOTING

OUBLESHOOTING
Problem
No power. • Check if the AC power cord is properly connected.
• Unplug the outlet once, and wait for 5-10 seconds and
then plug it in again.
No sound or picture. • Check if the TV is switched on.
• Check the video connection.
• Check the audio / video cable connections to the TV.
STANDBY-ON
• Check whether the connected TV or other device
supports HDCP. (This unit will not output a video signal
unless the other device supports HDCP.)
SETUP
• Press and hold [ B (PLAY) ] on the front panel for 5
seconds to change back to default output.
Distorted picture. • Sometimes a small amount of picture distortion may
appear. This is not a malfunction.
• Connect the unit directly to the TV.
Completely distorted • Connect this unit directly to the TV.
picture or black / white • Make sure the disc is compatible with the unit.
OSD Auto(English) picture with DVD.
Audio English
Subtitle Français
No sound or distorted
• Adjust the volume.
Menu Español
sound. • Check that the speakers are connected correctly.
No DTS audio is • This unit does not support DTS audio.
output. This is not a malfunction.
ENTER
You need to set this unit to "Bitstream" in "AUDIO"
menu and also need to connect to the TV or amplifier
that supports DTS, then the audio will be output as
DTS.
It is only available when connected via an HDMI cable.
Picture freezes
• Check the disc for fingerprints / dirty and clean with a
momentarily during soft cloth wiping from center to edge.
playback.
Disc cannot be played • Clean the disc.
back. • Ensure the disc is inserted in correct direction.
• Insert a correct disc that plays back on this unit.
• Check if the disc is defective by trying another disc.
• Check if the parental exceed the levels you set
in "Rating" setting. (for DVD only)
No return to start-up
• Reset the unit by switching off the unit, then on again.
screen when disc is
removed.
The unit does not • Aim the remote control directly at the sensor on the
respond to the remote front panel.
control.
• Reduce the distance to the unit.
• Replace the batteries in the remote control.
• Re-insert the batteries with their polarities ( + / – signs)
ESPANÕL as indicated.
Buttons do not work or
• Please attempt to reset the unit to unplug the AC
the unit stops responding. cable from wall outlet and then plug it again after 5-10
seconds.
The unit cannot read • Use a commonly available cleaning CD / DVD to clean
CD / DVD. the lens before sending the unit for repair.
Angle does not switch. • The angle cannot be switched for DVD which do not
contain multiple angles. In some cases multiple angles
are only recorded for specific scenes.
The password for rating • Enter the default password "4737", then your forgotten
level has been forgotten.
password will be cleared.
Problema
Sin alimentación. • Compruebe si el cable de alimentación está conectado
correctamente.
• Desconecte el enchufe una vez, y espere 5-10 segundos y
vuelva a conectarlo.
Sin sonido o imagen. • Presione y sostenga [ B (REPRODUCIR) ] en el
tablero frontal durante 5 segundos para regresar a la
salida predeterminada.
No se puede • Limpie el disco.
reproducir el disco. • Asegúrese que el disco esté insertado en la dirección correcta.
La unidad no responde
• Dirija el mando a distancia directamente a la ventana
al mando a distancia. del sensor de infrarrojos del panel delantero.
• Reduzca la distancia hasta la ventana del sensor de
infrarrojos.
• Sustituya las pilas del mando a distancia.
• Vuelva a introducir las pilas con su polaridades
(signos + / – ) según se indican.
SERVICING VICING
Even if this unit becomes inoperative, do not open cabinet to repair by
yourself. There is no user-serviceable parts inside.
Turn off the unit, unplug the power plug and please visit
for Online Support or contact Customer Service 1-877-393-8624.
Before call, please check model name and serial number pasted on the unit.
www.funaiamerica.com
